Betriebsanleitung
Operating instruction
EN

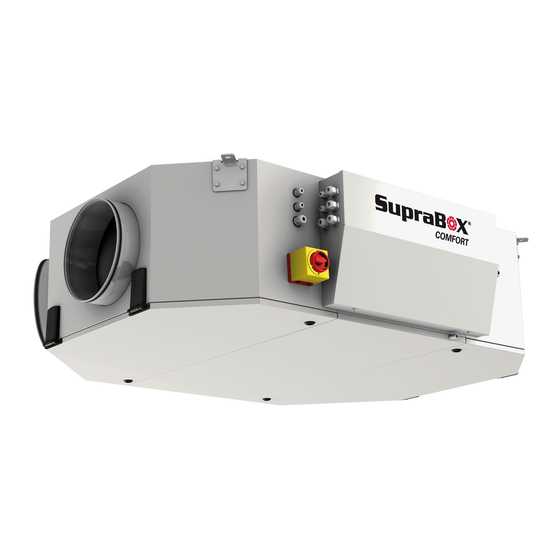

Compact ventilation units
Series SupraBox COMFORT / Overhead version
SupraBox ... D
SupraBox ... D
BA113BB10/12/A/ SupraBox
BA 113 BB 10/12/A/SupraBox
Rosenberg Ventilatoren GmbH · Maybachstraße 1 · 74653 Künzelsau-Gaisbach
Tel.: +49(0)7940/142-0 · Fax.: +49(0)7940/142-125 · Email: info@rosenberg-gmbh.com · www.rosenberg-gmbh.com
Advertisement
Table of Contents
Related Manuals for Rosenberg SupraBox 1900D
Summary of Contents for Rosenberg SupraBox 1900D
- Page 1 Compact ventilation units Series SupraBox COMFORT / Overhead version SupraBox … D SupraBox … D BA113BB10/12/A/ SupraBox BA 113 BB 10/12/A/SupraBox Rosenberg Ventilatoren GmbH · Maybachstraße 1 · 74653 Künzelsau-Gaisbach Tel.: +49(0)7940/142-0 · Fax.: +49(0)7940/142-125 · Email: info@rosenberg-gmbh.com · www.rosenberg-gmbh.com...
-
Page 2: Table Of Contents
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices Index Seite 1. General Safety Information ....................2 1.1 Warning regarding Health and Safety ................2 1.2 Safety Instruction ......................3 2. Technical Manual ....................... 4 2.1 General Description ...................... -
Page 3: General Safety Information
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 1. General Safety Information 1.1 Warning regarding Health and Safety The following icons inform about certain hazards or safe use. Attention! Danger! Safety Advice! Hazard by electricity or high voltage! -
Page 4: Safety Instruction
Overhead devices 1.2 Safety Instruction At the time of delivery the Rosenberg SupraBox Comfort series is constructed and produced according to the latest technical standard. Substantial tests of material, function and quality guarantee a high value and a long lifetime. When improperly used by untrained staff or not according to the instructions these machines can be dangerous. -
Page 5: Technical Manual
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 2. Technical Manual 2.1 General Description According to the EC Machinery Directive, stationery ventilation appliances have to be • electrically connected to a breaker and series fuse. It must be possible to disconnect the unit from all poles! The unit corresponds to the requirements of VDI 6022 and DIN 1946 T6. -
Page 6: Device Overview
1100 m³/h at 1900 m³/h at Operating Point 200 Pa 250 Pa Backward curved, free running, driven by highly efficient Rosenberg – EC-external Fans rotor motors with integrated electronics Power Input 2 x 320 W 2 x 750 W... - Page 7 Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices Exh. air Inc. air Ext.air Exh. air Picture:drawing of the device overview SB110DGRIB00 Panel filter exhaust air F5 Loops/ transport loops Reverse flow heat exchanger Control box incl. control system...
-
Page 8: Device Drawings
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 2.3 Device drawings Suprabox 1100 D (SB110DGRIB00) A hose with appropriate hose sleeve is recommended for the • condensate drain BA 113 BB 10/12/A/SupraBox... - Page 9 Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices Suprabox 1900 D (SB190DGRIB00) A hose with appropriate hose sleeve is recommended for the • ondensate drain BA 113 BB 10/12/A/SupraBox...
-
Page 10: Operating Conditions
Compact ventilation appliance series SupraBox Comfort Overhead devices 3. Operating conditions The Rosenberg compact series SupraBox Comfort is exclusively made for treating air or gaseous media according to the criteria stated below! The compact ventilation appliance is suitable for the conveyance of: Clean air, low dust air or low greasy air •... -
Page 11: Delivery, Transport And Storage
4. Delivery, Transport and Storage 4.1 Delivery Rosenberg-Supraboxes must be checked for damages immediately on delivery. This should be made before unloading the device from the transport vehicle. Furthermore the completeness of the delivery scope must be checked in accordance with the freight documents. - Page 12 Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices Picture:: transport dimensions Suprabox 1900D Suprabox Weight 1900 D 1800 mm 2000 mm 600 mm 315 kg Avoid twisting, bending or other physical damages of the housing when •...
- Page 13 Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices Picture: Unloading by forklift For the transport with a hall crane or a truck crane please note the following instructions: The transport with cranes or lifting fixation devices requires regular •...
-
Page 14: Storage
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices Low load Heavy load Picture: Load distribution Only use carrying devices with the same length. • Make careful and none jolting movements. • Avoid setting the load down hard and bumping. -
Page 15: General Installation Instructions
The Rosenberg-SupraBox Comfort overhead version must be installed on a ceiling which is professionally constructed and statically suitable for this specific use. Assumption of static or dynamic building functions by Rosenberg devices must be excluded. Otherwise the warranty by Rosenberg Ventilatoren GmbH will expire for damages to the device or resulting damages to the building. -
Page 16: Connection Of The Ventilation Ducts To The Unit
5.3 Connection of the ventilation ducts to the unit The connection sleeves of the Rosenberg-SupraBox Comfort overhead versions are provided as circular tube spigots, with T-sealing lip (1100D) or as rectangular connection (1900D), sizes as shown in the unit drawings. -
Page 17: Electric Installation
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices sound insulation can be met by separate vibration isolation with elastic connections. These are usually not included in the delivery, but can be provided as additional equipment. The external air and exhaust air duct must be protected against condensate water. -
Page 18: Startup And Operation
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 6. Startup and Operation 6.1 General startup information Prior to the startup of the compact ventilation unit observe the instructions below: Inspection of the proper installation, connection and assembly •... -
Page 19: Maintenance And Cleaning
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 7. Maintenance and Cleaning 7.1 General Maintenance Instructions The maintenance interval indicated in this manual basically refers to the transport of normally polluted air. If the unit must transport strongly polluted air the maintenance intervals must be reduced accordingly. -
Page 20: Maintenance And Cleaning Of The Housing And Control
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices The hygiene inspection at the unit has to be made according to the following intervals: • - after startup - every 3 years (units without moisturization) The periodical hygiene inspection is necessary to reveal hygiene deficiencies at an early stage •... -
Page 21: Fans
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 7.4 Fans 7.4.1 Initiation Before connecting the unit to the mains the initial operation should be • made according to the VDE regulation Make sure that the operating switch is set to ZERO (OFF) and protected •... - Page 22 Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices ► Check of the gap and the gap coverage between wheel and inlet cone • Picture: gap of the fan The gap S should be constant on the entire perimeter of the wheel.
-
Page 23: Use
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 7.4.2 Use Monitor the fans for correct function during operation. Vibrations, pressure fluctuations or other deviations from the provided operating parameters should be checked according to the following chapter: 7.4.3 Maintenance and Cleaning... -
Page 24: Reverse Flow Heat Exchanger
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices For more thorough cleaning the fans can be removed. Make sure that before removing the fans the wiring will be disconnected by qualified and trained staff according to the wiring diagram. -
Page 25: Maintenance And Cleaning
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 7.5.3 Maintenance and Cleaning The reverse flow heat exchanger as an installed component needs little maintenance. For hygienic requirements inspection and maintenance is necessary. In addition the integrated damper servomotor and fastener need regular checks and maintenance. - Page 26 Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices In order to ensure safe removal of the heat exchanger, follow the order of the steps below: 1. Unlock the front panels ([3] pict. detachment heat exchanger) using the 4 allen head screws in the panel (first remove the plastic plug).
-
Page 27: Panel Filters
Operation and Maintenance Manual for Rosenberg Compact ventilation appliance series SupraBox Comfort Overhead devices 7.6 Panel filters 7.6.1 Startup Before installation of the filter all seals should be checked for correct fit. • Clean the housing floor. Pay attention to the directional arrow for the air stream printed on the panel •...
