Betriebsanleitung
Operating instruction
EN

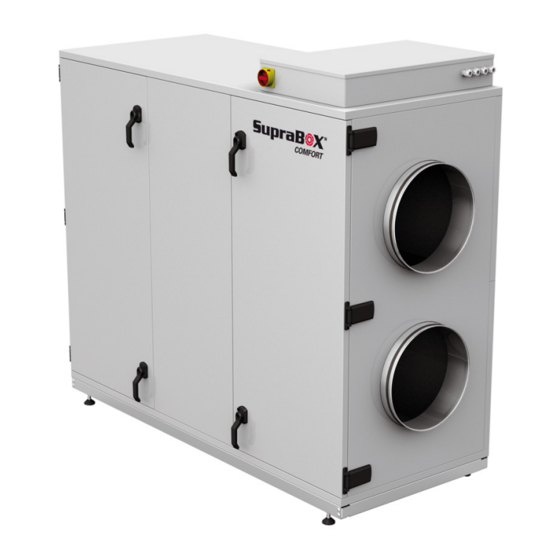

Compact ventilation units
Series SupraBox COMFORT
SupraBox ... H
SupraBox ... H
BA112BB07/11/A/ SupraBox 1
Rosenberg Ventilatoren GmbH · Maybachstraße 1 · 74653 Künzelsau-Gaisbach
BA 112 BB 11/12/A/SupraBox 1
Tel.: +49(0)7940/142-0 · Fax.: +49(0)7940/142-125 · Email: info@rosenberg-gmbh.com · www.rosenberg-gmbh.com
Advertisement
Table of Contents
Related Manuals for Rosenberg SupraBox COMFORT 800H
Summary of Contents for Rosenberg SupraBox COMFORT 800H
- Page 1 Operating instruction Compact ventilation units Series SupraBox COMFORT SupraBox … H SupraBox … H BA112BB07/11/A/ SupraBox 1 Rosenberg Ventilatoren GmbH · Maybachstraße 1 · 74653 Künzelsau-Gaisbach BA 112 BB 11/12/A/SupraBox 1 Tel.: +49(0)7940/142-0 · Fax.: +49(0)7940/142-125 · Email: info@rosenberg-gmbh.com · www.rosenberg-gmbh.com...
-
Page 2: Table Of Contents
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort Index Page 1. General Safety Information ....................2 1.1 Warnings regarding industrial safety measures .............. 2 1.2 Safety Instructions ......................3 2. Technical Manual ....................... 4 2.1 General Description ......................4 2.2 Device Overview ...................... -
Page 3: General Safety Information
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 1. General Safety Information 1.1 Warnings regarding industrial safety measures The following icons inform about certain hazards or safe use. Attention! Danger! Safety Advice! Hazard by electricity or high voltage! -
Page 4: Safety Instructions
Comfort 1.2 Safety Instructions At the time of delivery the Rosenberg SupraBox Comfort series is constructed and produced according to the latest technical standard. Substantial tests of material, function and quality guarantee a high value and a long lifetime. When improperly used by untrained staff or not according to the instructions these machines can be dangerous. -
Page 5: Technical Manual
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 2. Technical Manual 2.1 General Description According to the EC Machinery Directive stationery ventilation appliances have to be • electrically connected to a breaker and a series fuse. It must be possible to disconnect the unit from all poles! The unit corresponds to the requirements of VDI 6022 as well as DIN 1946 T6. -
Page 6: Device Overview
2000 m³/h at Operating point 150 Pa 200 Pa 200 Pa 250 Pa Backwards curved, free running, driven by highly efficient Rosenberg – EC-external- Fans rotor motors with integrated electronics Power Input in the 2 x 200 W 2 x 310 W... - Page 7 (L x W x H) [mm] box and adjustable feet 3500 m³/h at Operating point 400 Pa Backwards curved, free running, driven by highly efficient Rosenberg – EC-external- Fans rotor motors with integrated electronics Power Input in the 2 x 1600 W operating point SFP-Value 1645 Ws/m³...
- Page 8 Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort Exhaust Inc. air Ext. air Exh. air Picture: drawing of the device overview Panel filter exhaust air M5 Condensate pan Panel filter incoming air F7 Exhaust fan with EC-motor...
-
Page 9: Device Drawings
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 2.3 Device drawings Suprabox 800 H Condensate drain through the hose sleeve 19,4 x 3,7 • Suprabox 1100 H Condensate drain through the hose sleeve 19,4 x 3,7 •... - Page 10 Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort Suprabox 1500 H A hose with appropriate hose sleeve is recommended for the condensate drain 19,4 x 3,7 • Suprabox 2000 H Condensate drain through the hose sleeve 19,4 x 3,7 •...
-
Page 11: Operating Conditions
Condensate drain through the hose sleeve 19,4 x 3,7 • 3. Operating Conditions The Rosenberg compact series SupraBox Comfort is exclusively made for treating air or gaseous media according to the criteria stated below! The compact ventilation appliancet is suitable for the conveyance of: Clean air, low dust or low greasy air •... -
Page 12: Delivery, Transport And Storage
4. Delivery, Transport and Storage 4.1 Delivery The Rosenberg-Suprabox must be checked for damages immediately on delivery. This should be made before unloading the device from the transport vehicle. Furthermore the completeness of the delivery scope must be checked in accordance with the freight documents. - Page 13 Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort Avoid twisting, bending or other physical damages of the housing when hoisting the device! Keep the control doors closed during transport! • Always use proper hoisting machines! •...
- Page 14 Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort It is forbidden to use chain slings or slinging ropes for the direct load attachment! • The slings should not have an inclination angle of more than 60° ! •...
-
Page 15: Storage
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 4.3 Storage Make sure to store the unit in a dry and weather protected area! • On receipt of the merchandise the packaging, film and tape must •... -
Page 16: General Assembly Instructions
Comfort 5. General Assembly Instructions 5.1 Unit Installation The Rosenberg-SupraBox Comfort must exclusively be installed on a foundation or a substructure which is professionally constructed.. Assumption of static or dynamic building functions by Rosenberg-devices must be excluded. Otherwise the warranty by Rosenberg Ventilatoren GmbH will expire for damages to the device or resulting damages to the building. -
Page 17: Connection Of The Ventilation Ducts To The Unit
5.3 Connection of the ventilation ducts to the unit The connection sleeves of the Rosenberg-SupraBox Comfort are provided as circular tube spigots, with T-sealing lip sizes as shown in the unit drawings. The duct system must be installed according to the valid technical standards and regulations and must support the dead load by installations of the customer. - Page 18 Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort areas against frost. Do not connect the spout to the sewage system. Alternatively a vacuum trap with non-return ball can be used, but make sure that there is a suction lift of at least 70 mm.
-
Page 19: Startup And Operation
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 6. Startup and Operation 6.1 General Startup information Prior to the startup of the compact ventilation unit observe the instructions below: Inspection of the proper installation, connection and assembly •... -
Page 20: Maintenance And Cleaning
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 7. Maintenance and Cleaning 7.1 General Maintenance Instructions The maintenance interval indicated in this manual refers to the transport of normally polluted air. If the unit must transport strongly polluted air, the maintenance intervals must be reduced accordingly. -
Page 21: Maintenance And Cleaning Of The Housing And Control
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort The hygiene inspection at the unit has to be made according to the following intervals: • - after startup - every 3 years (units without moisturization) The periodical hygiene inspection is necessary to reveal hygiene deficiencies at an early stage •... -
Page 22: Fans
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 7.4 Fans 7.4.1 Setup Before connecting the unit to the mains the initial operation should be made • according to the VDE regulation Make sure that the operating switch is set to ZERO (OFF) and protected •... -
Page 23: Operation
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort ► Check of the gap and gap coverage between wheel and inlet cone • Picture: gap of the fan The gap S should be constant on the entire perimeter of the wheel. -
Page 24: Reverse Flow Heat Exchanger
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort Lubricate or replace the bearing Check the fan fastening for tightness and mechanical damages Check the function of the vibration absorber Check for the existence of the fasteners of the protection... -
Page 25: Maintenance And Cleaning
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 7.5.3 Maintenance and Cleaning The reverse flow heat exchanger as an installed component needs little maintenance. For hygienic requirements inspection and maintenance is necessary. In addition the integrated damper servomotor and fastener need regular checks and maintenance. -
Page 26: Operation
Operation and Maintenance Manual for Rosenberg Compact Ventilation Appliance series SupraBox Comfort 7.6.2 Operation The panel filters must be fastened with use of a tensioning rail at the assembly frame. For the change of the filter draw the rail to the body and now remove the filter.
