The RB Series cont.
Product Features: Horizontal Cabinet

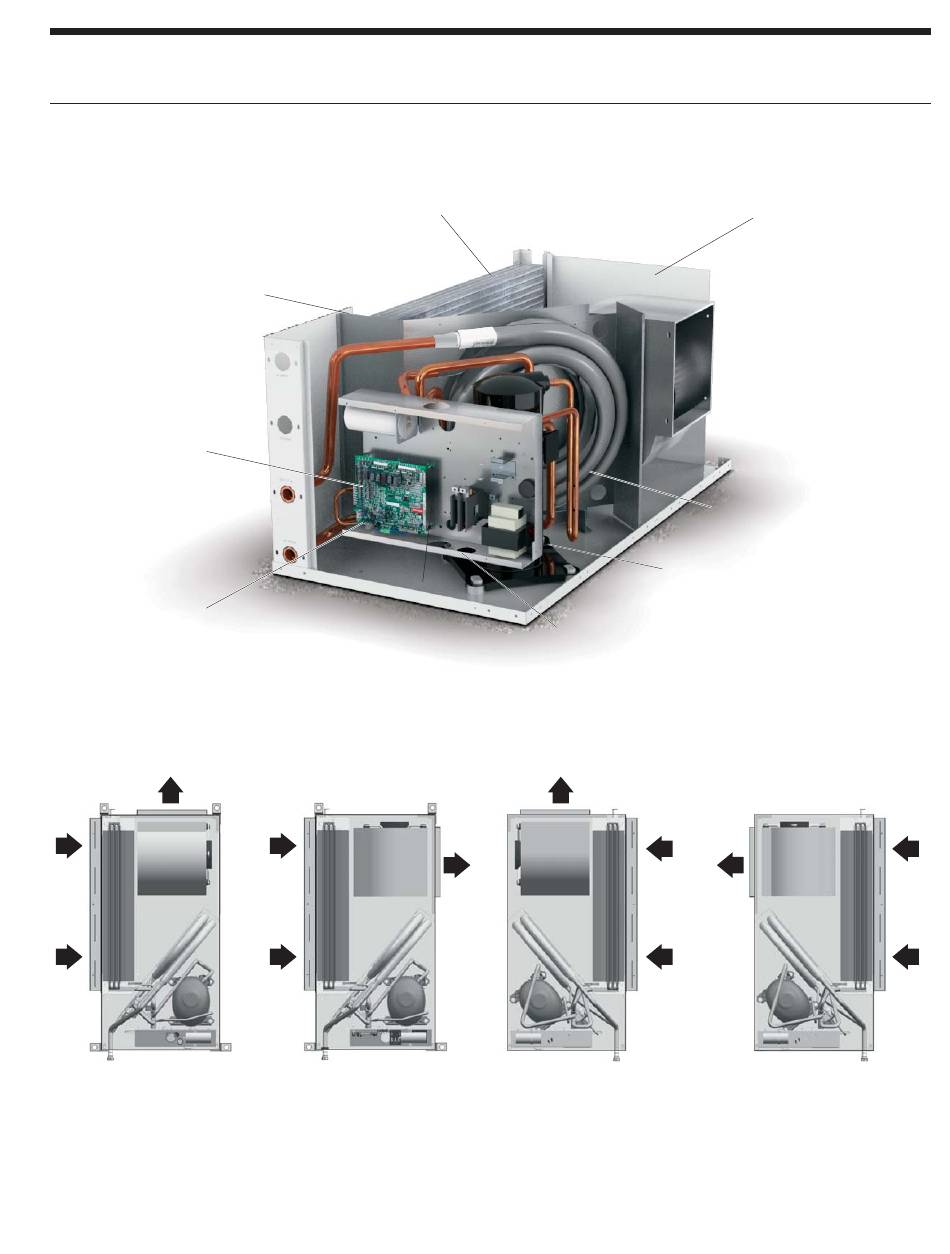

Horizontal units are designed for compact installation, maximum flexibility, and primary servicing from the front.
Oversized rifled tube/lanced fin all-
Optional factory mounted filter rail
accepts 1 in. and 2 in. filters (field
switchable)
Fault and diagnostic
LEDs (Aurora Base
Control only)
Microprocessor control
ABC - Standard
Smart Equipment
Controls - Optional
Four blower deck options are available. Factory or field conversion option of end or side discharge using switchable access panels and a factory
only option of true left or right return air coil.
Left hand return with
end discharge
aluminum air coil
(optional AlumiSeal coil coating).
Left hand return with
side discharge
Easily removable
control box
Right hand return
with end discharge
9
RB SERIES ENGINEERING GUIDE
Smallest Cabinet in
Industry
Optional ThermaShield coated
coaxial heat exchanger
High efficiency rotary or
scroll compressor
Right hand return
with side discharge
