RB SERIES ENGINEERING GUIDE
The RB Series cont.
Product Features: Vertical Cabinet ct Features: Vertical Cabinet

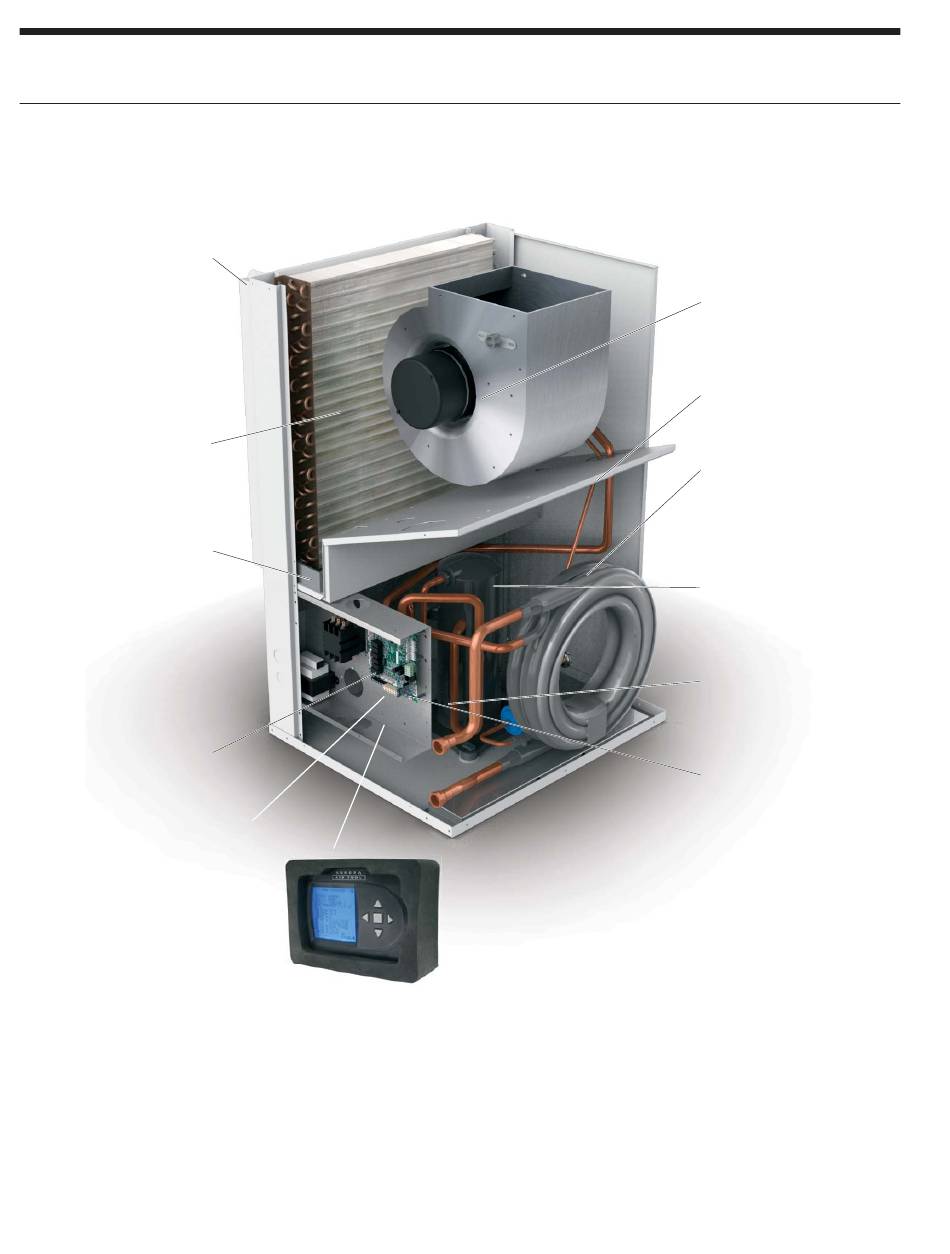

Versatec Compact vertical units are designed for high efficiency, maximum flexibility, and primary servicing from the front. Compact vertical units are designed for high efficiency, maximum flexibility, and primary servicing from the front.
Standard filter rail, field
switchable for 1 in. or
2 in. filters
Optional factory mounted
deluxe filter rack (shown), field
switchable for 1 in. or
2 in. filters
Oversized rifled tube/lanced fin
all-aluminum air coil (optional
TM
AlumiSeal coil coating).
Corrosion-resistant, composite
drain pan with overflow
protection, optional secondary
drain connection
Optional stainless steel drain
pan with overflow protection,
optional secondary drain
connection
Microprocessor control
Aurora - Standard
Smart Equipment
Controls - Optional
Fault and status LEDs (
Base Control only
AID Tool for diagnosing
and controlling the Aurora
A true left and right return option is available.
Aurora
)
control
8
Removable inlet rings for easy
blower removal
Insulated divider panel
Optional ThermaShield coated
coaxial heat exchanger
High efficiency rotary or scroll
compressor
Internally trapped
condensate line
Fault and status LEDs ( Aurora
Base Control only
)
