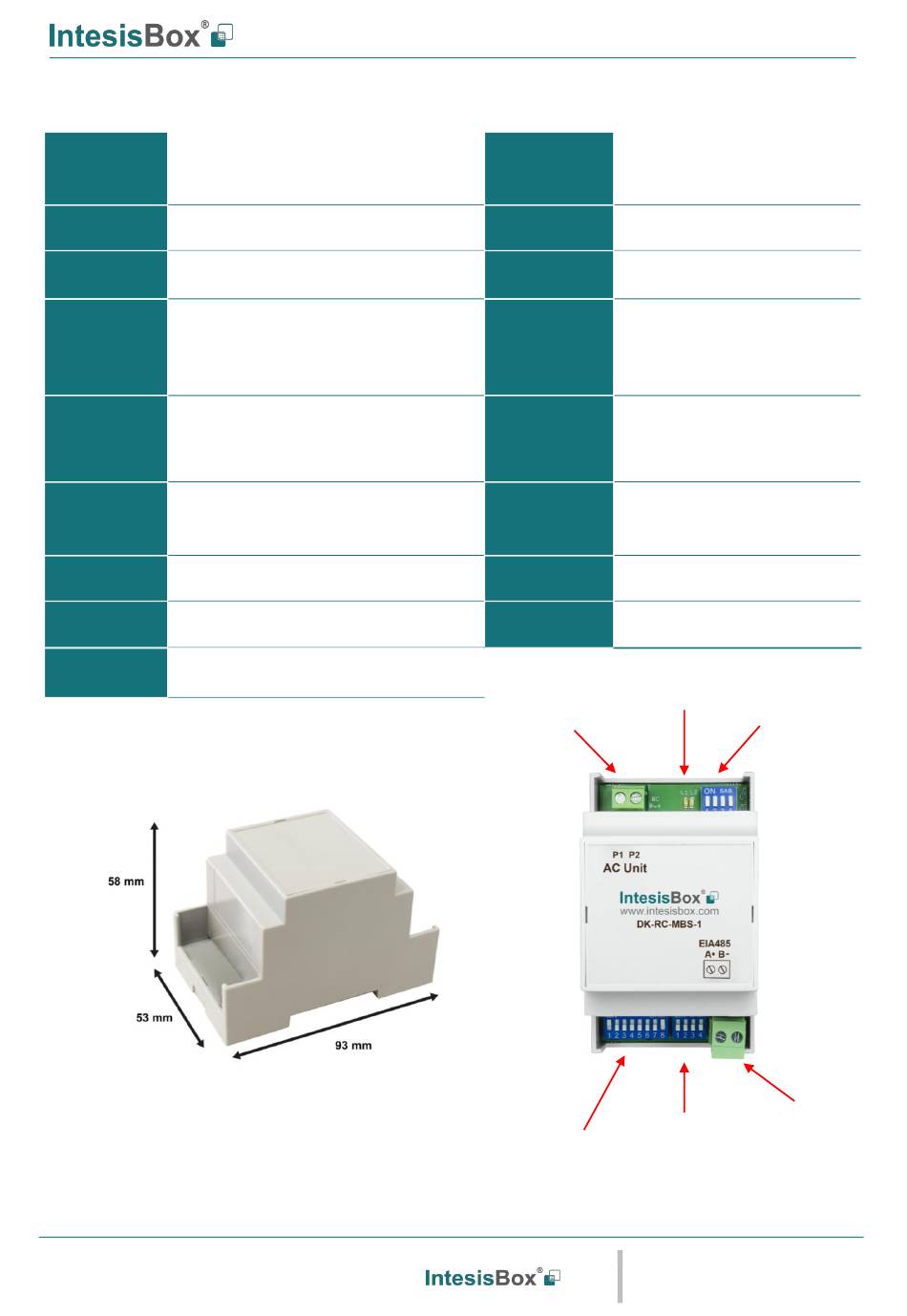

5. Electrical and Mechanical features

Plastic, type PC (UL 94 V-0)
Net dimensions (dxwxh):
Enclosure
93 x 53 x 58 mm / 3.7" x 2.1" x 2.3"
Color: Light Grey. RAL 7035
Weight 85 g.
Wall
Mounting
DIN rail EN60715 TH35.
For terminal: solid wires or stranded wires
Terminal Wiring (twisted or with ferrule)
(for low-voltage 1 core: 0.5mm
signals) 2 cores: 0.5mm
3 cores: not permitted
1 x Serial EIA485 Plug-in screw terminal
block (2 poles):
Modbus RTU
A, B
port
Compatible with Modbus RTU EIA-485
networks
1 x P1P2 bus Plug-in screw terminal block
(2 poles):
AC unit port
P1, P2
Compatible with Daikin networks
Switch 1
1 x DIP-Switch for AC features
(SW1)
Switch 3
1 x DIP-Switch for Modbus RTU settings
(SW3)
Switch 4
(SW4) 1 x DIP-Switch for extra functions
