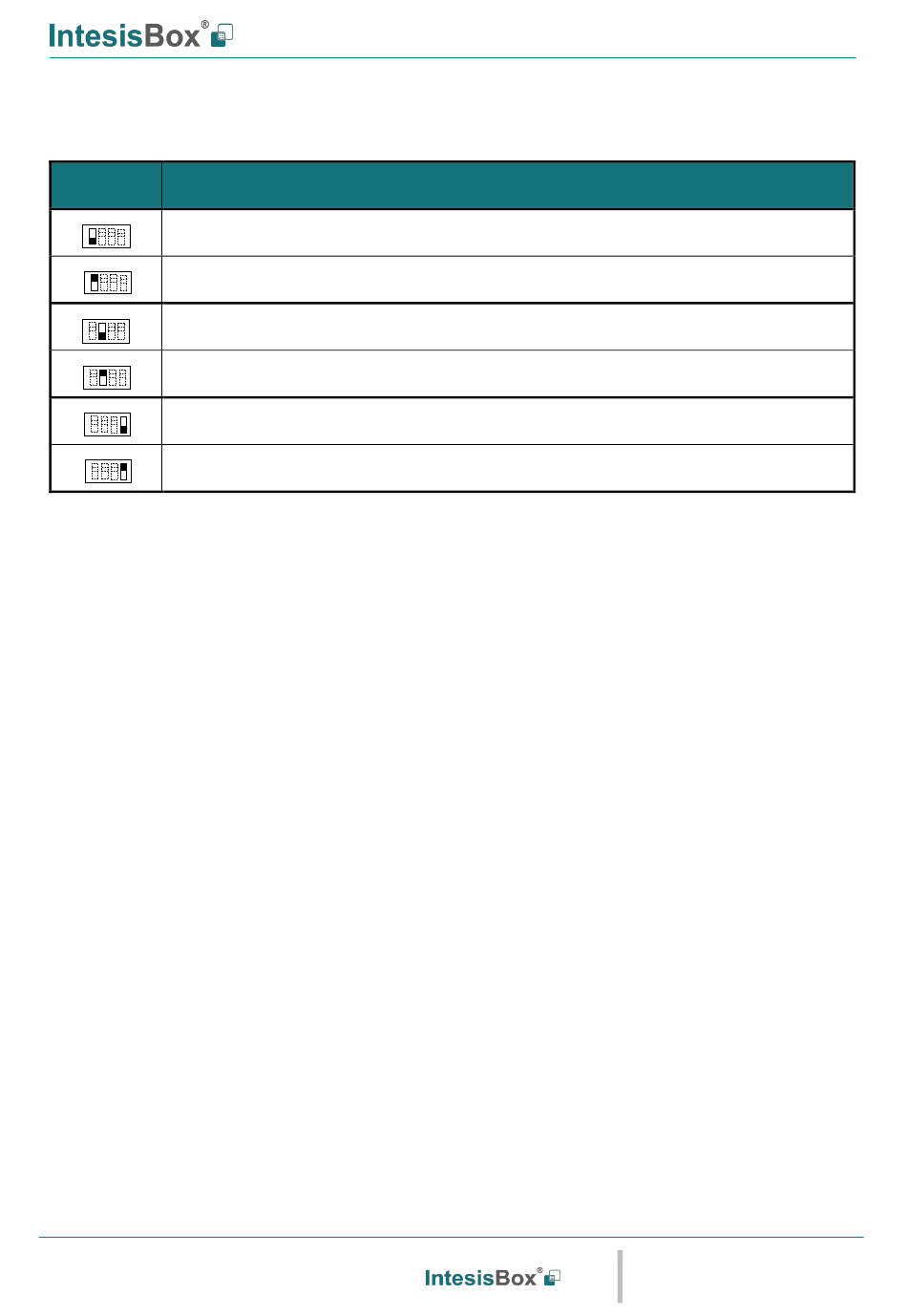

SW4 – Degrees/Decidegrees (x10), temperature magnitude (ºC/ºF) and EIA-485 termination
resistor.
SW4-P1..2-4 Description
ON
Temperature values in Modbus register are represented in degrees (x1) (Default value)
ON
Temperature values in Modbus register are represented in decidegrees (x10)
ON
Temperature values in Modbus register are represented in Celsius degrees (Default value)
ON
Temperature values in Modbus register are represented in Fahrenheit degrees
ON
EIA-485 bus without termination resistor (Default value)
ON
Internal termination resistor of 120Ω connected to EIA-485 bus
Table 4.3 SW4: Temperature and termination resistor configuration
