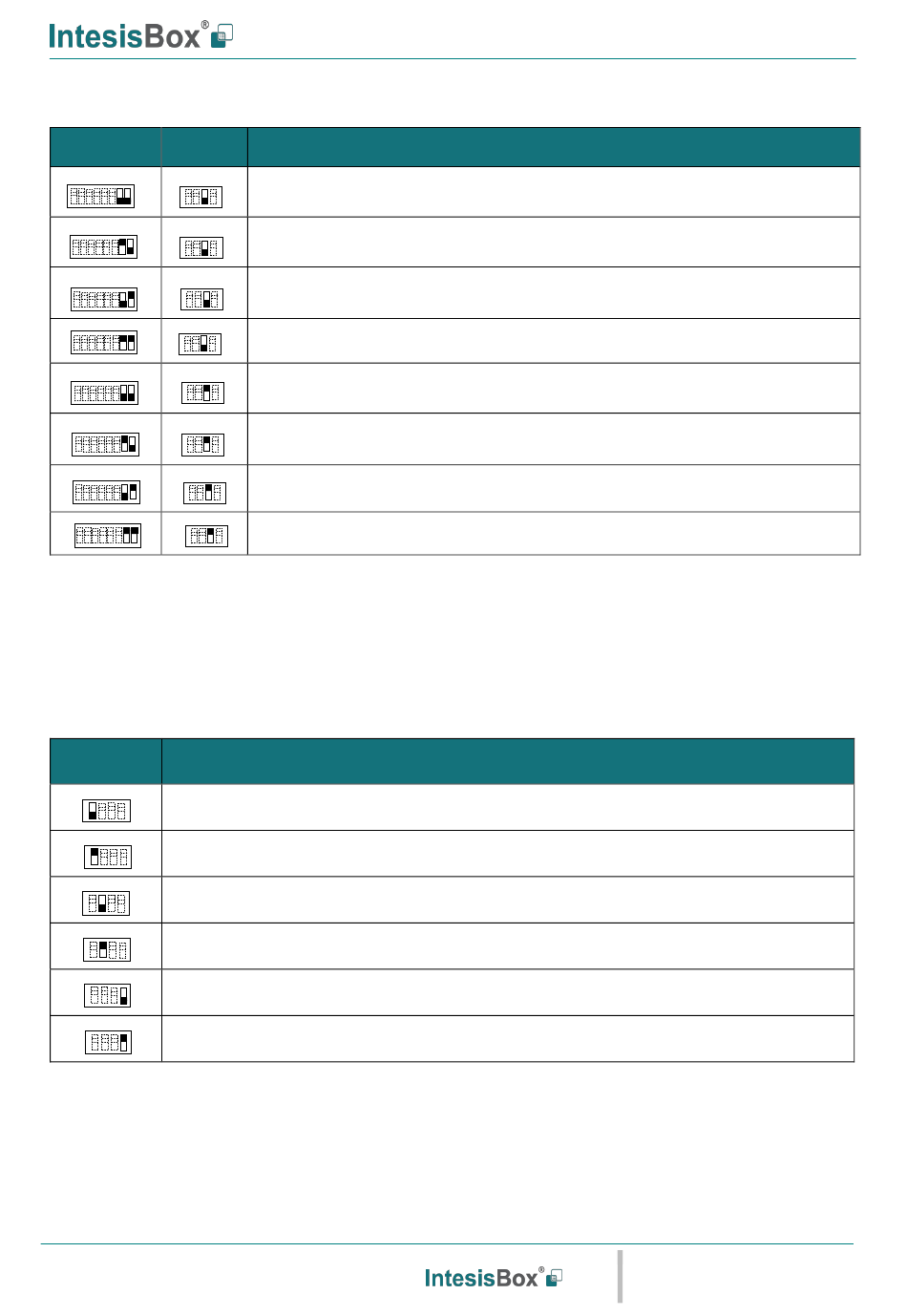

SW3/SW4 – Baud rate configuration
SW3-P7..8 SW4-P3
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
SW4 – Degrees/Decidegrees (x10), temperature magnitude (ºC/ºF) and EIA-485 termination
resistor.
SW4-P1..2-4 Description
ON
Temperature values in Modbus register are represented in degrees (x1) (Default value)
ON
Temperature values in Modbus register are represented in decidegrees (x10)
ON
Temperature values in Modbus register are represented in Celsius degrees (Default value)
ON
Temperature values in Modbus register are represented in Fahrenheit degrees
ON
EIA-485 bus without termination resistor (Default value)
ON
Internal termination resistor of 120Ω connected to EIA-485 bus
Table 4.3 SW4: Temperature and termination resistor configuration
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU
ME-AC-MBS-1
Description
2400bps
4800bps
9600bps (Default value)
19200bps
38400bps
57600bps
76800bps
115200bps
Table 4.2 SW3-SW4: Modbus baud rate
