5.2.5 Sending the configuration to IntesisBox

When the configuration is finished, follow the next steps.
1.- Click on Save button to save the project to the project folder on your hard disk (more information in
IntesisBox MAPS User Manual).
2.- You will be prompted to generate the configuration file to be sent to the gateway.
a.- If Yes is selected, the file containing the configuration for the gateway will be generated and saved
also into the project folder.
b.- If NO is selected, remember that the file with the project needs to be generated before the
IntesisBox starts to work as expected.
3.- Press the Send File button to send the file to the IntesisBox device. The process of file transmission can
be monitored in the IntesisBox Communication Console window. IntesisBox will reboot automatically once
the new configuration is loaded.
After any configuration change, do not forget to send the configuration file to the IntesisBox using
button Send File.

5.2.6 Diagnostic

To help integrators in the commissioning tasks and troubleshooting, the Configuration Tool offers some specific tools
and viewers.
In order to start using the diagnostic tools, connection with the Gateway is required.
The Diagnostic section is composed by two main parts: Tools and Viewers.
•
Tools
Use the tools section to check the current hardware status of the box, log communications into
compressed files to be sent to the Support Team, change the Diagnostic panels' view or send
commands to the gateway.
•
Viewers
In order to check the current status, viewer for the Internal and External protocols are available. It is
also available a generic Console viewer for general information about communications and the
gateway status and finally a Signals Viewer to simulate the BMS behavior or to check the current
values in the system.
© Intesis Software S.L.U. - All rights reserved
IntesisBox is a registered trademark of Intesis Software SLU

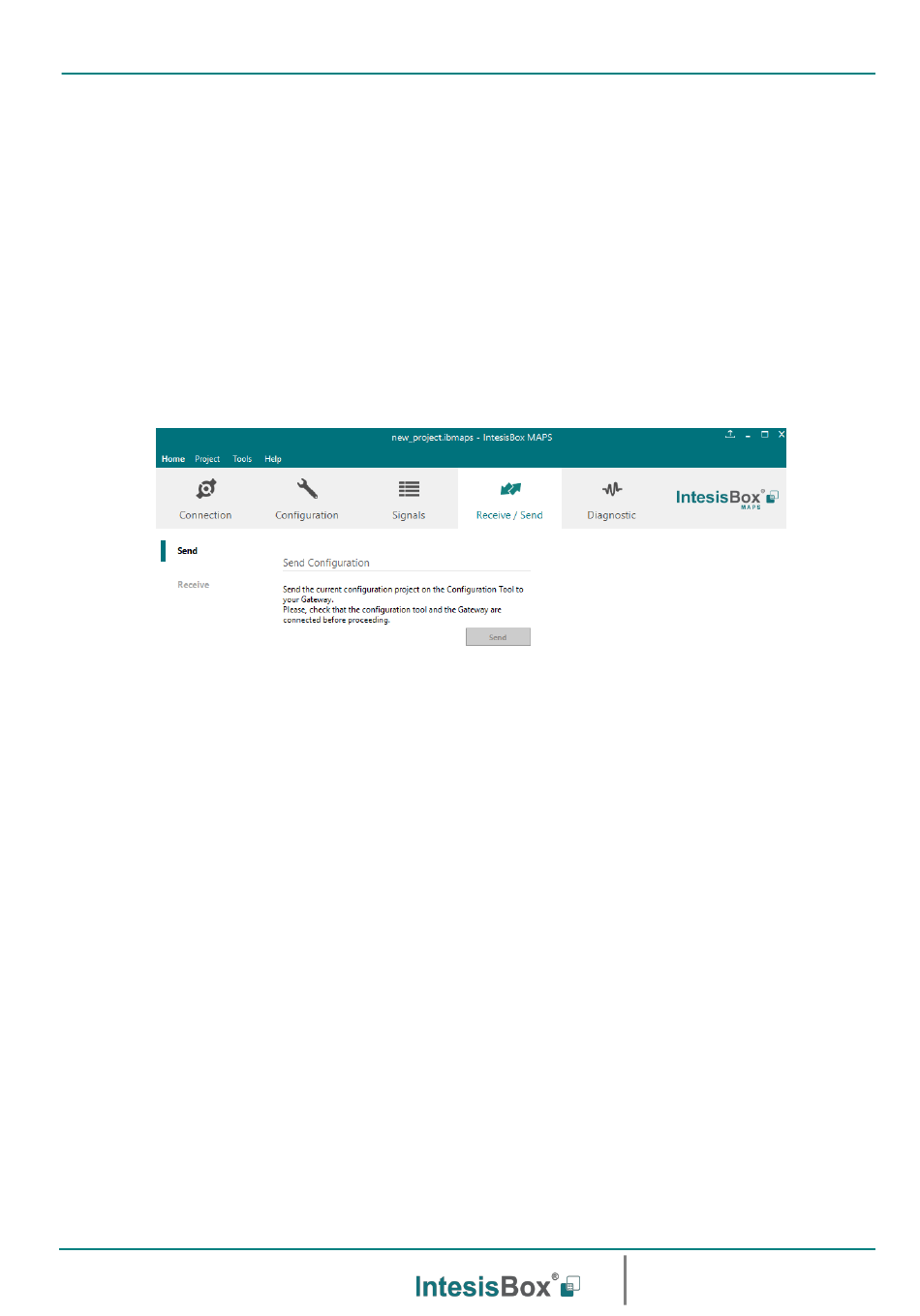

Figure 5.4 IntesisBox MAPS Receive/Send tab
