5.2.3 Configuration tab

Select the Configuration tab to configure the connection parameters. Three subsets of information are shown in this
window: General (Gateway general parameters), KNX (KNX interface configuration) and Modbus Client (Modbus
interface parameters).

5.2.4 Signals

All available objects, Object Instances, its corresponding Modbus register and other main parmaters, are listed in the
signals tab. More information on each parameter and how to configure it can be found in the IntesisBox MAPS user
manual.
© Intesis Software S.L.U. - All rights reserved
IntesisBox is a registered trademark of Intesis Software SLU

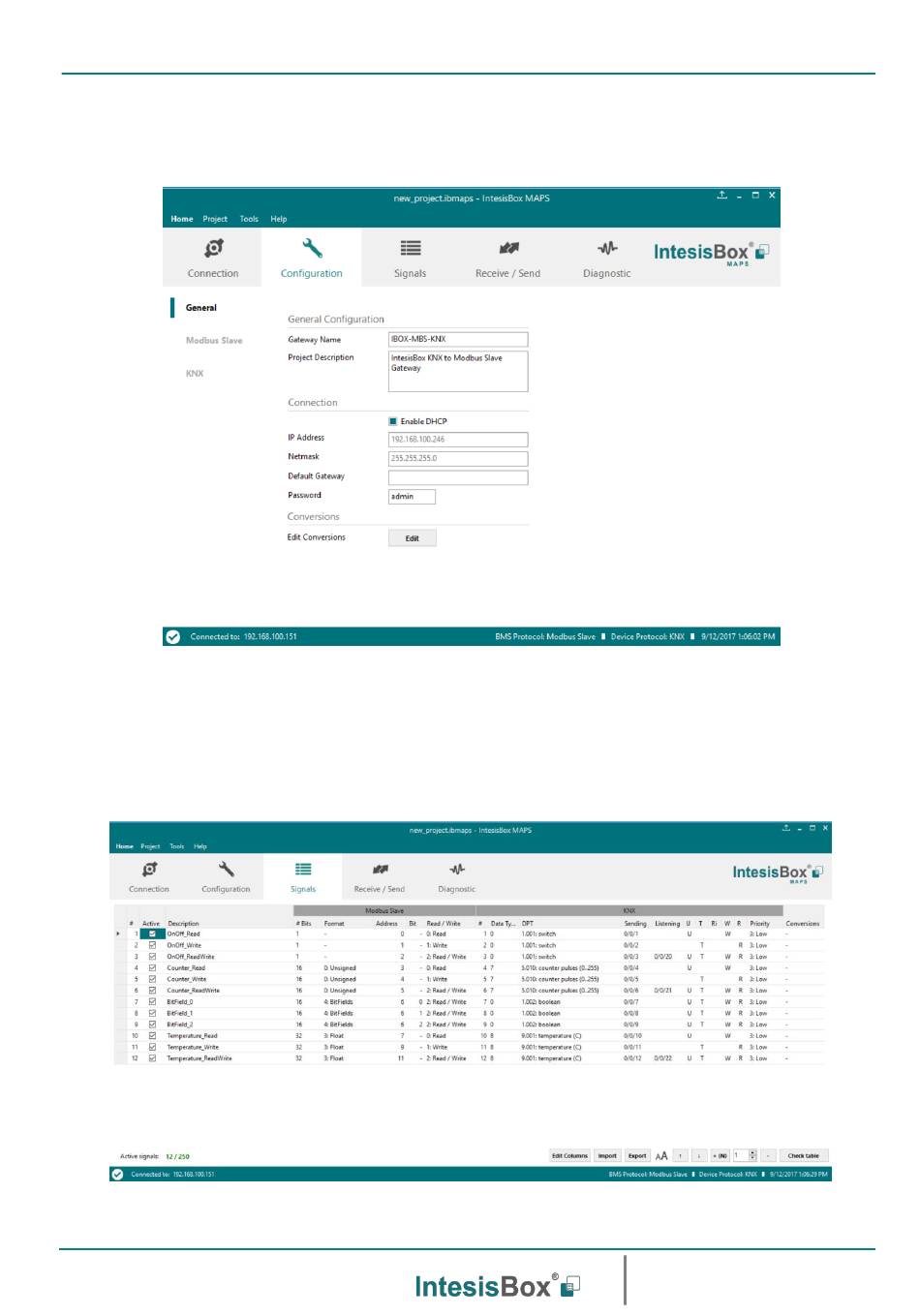

Figure 5.2 IntesisBox MAPS configuration tab
Figure 5.3 IntesisBox MAPS Signals tab
