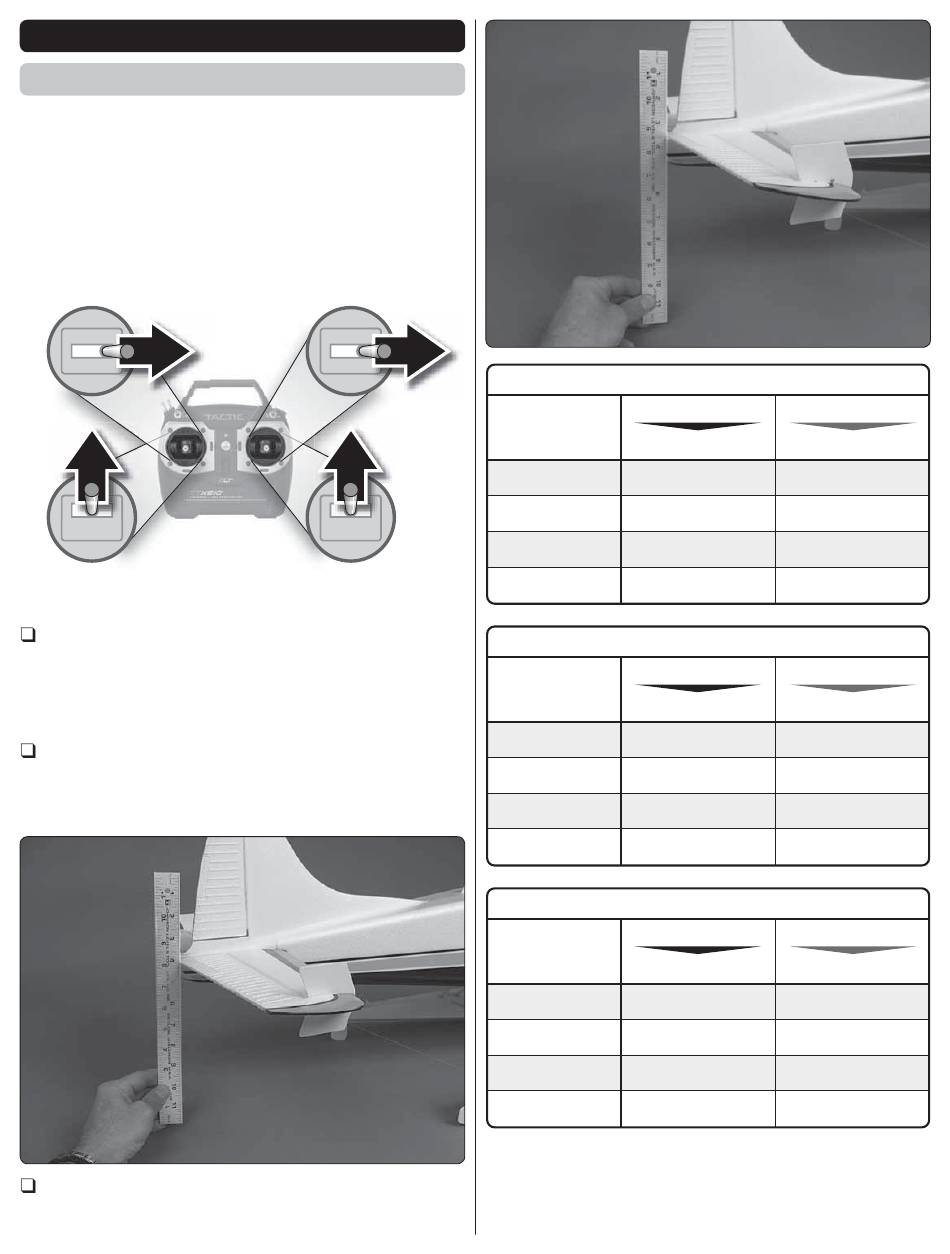

FINAL FLIGHT PREPARATION

Check the Control Throws

Because the servos and pushrods are factory-installed
the control throws should already be correct, but because
of the effect the control throws can have on a model, it's
always a good idea to check them anyway.
4-CHANNEL RADIO SETUP
RUDDER
MOVES
RIGHT
FULL
THROTTLE
1. Confi rm that the controls are responding in the correct
direction according to control inputs from the transmitter.
If necessary, use the servo reversing program in your
transmitter to change the servo direction of any controls
that are moving the wrong way.
2. If your de Havilland Beaver is confi gured with wheels,
use a small box or something similar to prop up the bottom
of the fuselage under the tail so the wings and stab are
level (or nearly level).
3. Measure and set the control throws according to the
measurements below. The throws are measured at the
widest part (front-to-back) of each surface.
(Standard Mode 2)
RIGHT AILERON MOVES UP
LEFT AILERON
MOVES DOWN
ELEVATOR
MOVES DOWN
Recommended Control Surface Throws
HIGH RATE
INCHES
7/16"
ELEVATOR
1/2"
AILERONS
1-1/4"
RUDDER (R&L)
FLAP
Recommended Control Surface Throws
HIGH RATE
MILLIMETERS
11mm
ELEVATOR
13 mm
AILERONS
32 mm
RUDDER (R&L)
FLAP
Recommended Control Surface Throws
HIGH RATE
DEGREES
ELEVATOR
AILERONS
RUDDER (R&L)
FLAP
14
LOW RATE
Up Down Up
7/16" 5/16"
1/2" 3/8"
1-1/4" 7/8"
7/16"
LOW RATE
Up Down Up
11mm 8 mm
13 mm 10 mm
32 mm 22 mm
11 mm
LOW RATE
Up Down Up
10 º 10 º 8 º
20 º 20 º 14 º
26 º 26 º 18º
34º
Down
5/16"
3/8"
7/8"
Down
8 mm
10 mm
22 mm
Down
8 º
14º
18º
