WF200
2.0 SPECIFICATIONS

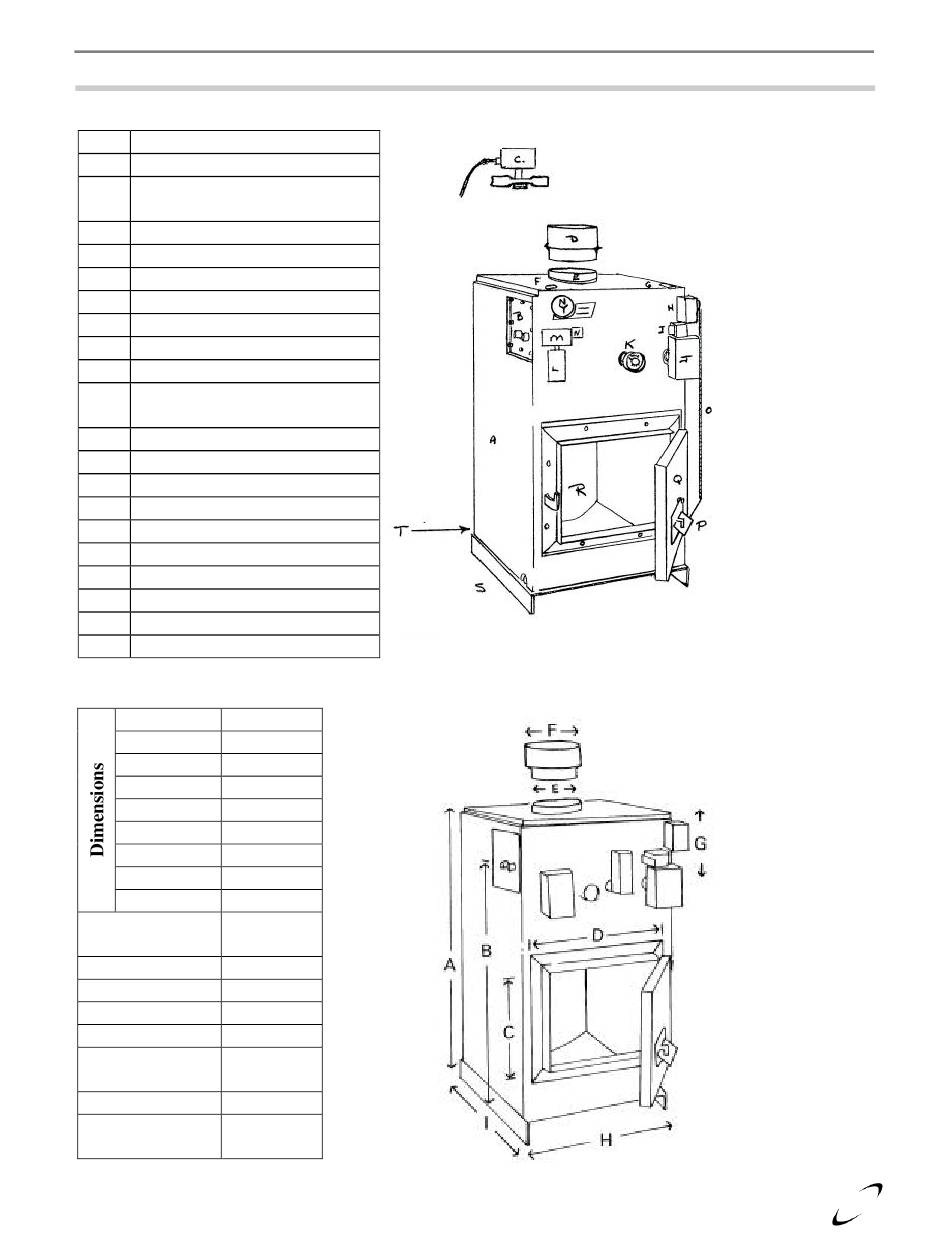

Parts Diagram
A
Flush Jacket
B
Domestic Coil
C
Normally Open Zone Valve
V8043D1
D
Relief Valve Tapping
E
Flue
F
Relief Valve Tapping
G
Supply Tapping
H
Damper Motor M847A1031
I
Transformer AT20B1064B
J
Aquastat L4081A1155
K
Pressure & Temperature
Gauge
L
Aquastat L4006B1007
M
Fan Center R8285A1048
N
Transformer AT20B1064B
O
Damper Chain
P
Damper Door
Q
Fire Door
R
Combustion Area
S
Base
T
Return Tapping
U
Low water cut off
Dimensions
A
B
13½"
C
15¾"
D
E
F
G
22½"
H
I
Chamber size
18 x 16 x
(HxWxD)
25.5
1 ½"
Supply
1 ½"
Return
Relief Valve
Drain
Heating
Surface (sq. Ft)
Weight (lbs)
Water volume
(Imp. Gal)
42"
37"
8"
7"
7"
30"
¾"
½"
20
625
43
Installation and Operation Manual
Tapping provided for
¾" Low water cut-off
Model OEM 170
Safeguard
Or Approved Equal
3
