WF200 Installed as an Add-on to an Oil Boiler
The WF200 is factory supplied with controls necessary for a typical installation as an add-on to oil boiler. In
addition to the preceding General Field Wiring and the General Boiler System Plumbing instructions, use the
follow instructions to complete the plumbing and wiring for a WF200 installed as an add-on to an oil boiler.

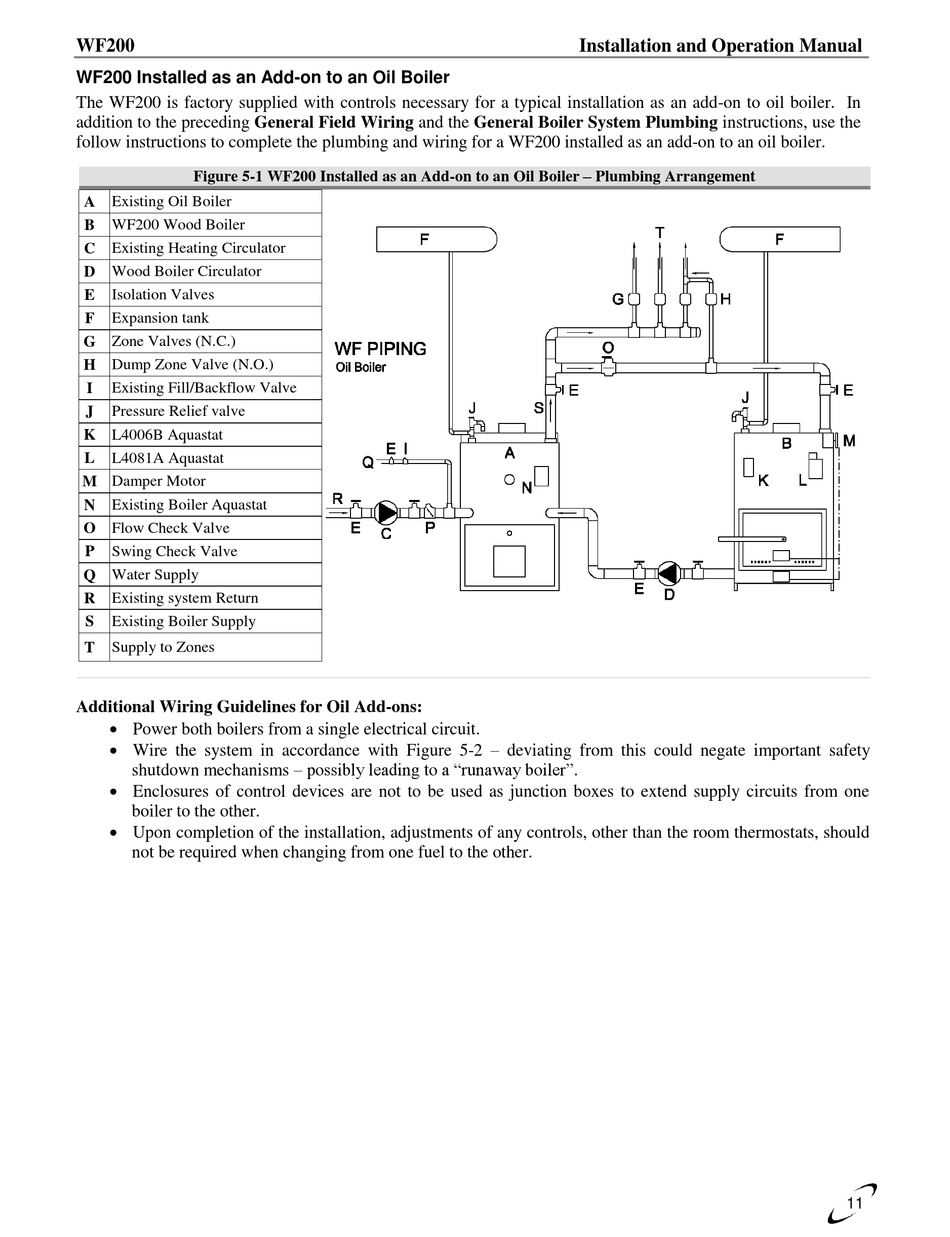

Figure 5-1 WF200 Installed as an Add-on to an Oil Boiler – Plumbing Arrangement
Existing Oil Boiler
A
B WF200 Wood Boiler
C Existing Heating Circulator
Wood Boiler Circulator
D
E Isolation Valves
Expansion tank
F
G Zone Valves (N.C.)
H Dump Zone Valve (N.O.)
I Existing Fill/Backflow Valve
Pressure Relief valve
J
K L4006B Aquastat
L4081A Aquastat
L
M Damper Motor
N Existing Boiler Aquastat
O Flow Check Valve
P Swing Check Valve
Q Water Supply
R Existing system Return
Existing Boiler Supply
S
Supply to Zones
T
Additional Wiring Guidelines for Oil Add-ons:
 Power both boilers from a single electrical circuit.
 Wire the system in accordance with Figure 5-2 – deviating from this could negate important safety
shutdown mechanisms – possibly leading to a "runaway boiler".
 Enclosures of control devices are not to be used as junction boxes to extend supply circuits from one
boiler to the other.
 Upon completion of the installation, adjustments of any controls, other than the room thermostats, should
not be required when changing from one fuel to the other.
