INSTALLATION INSTRUCTIONS

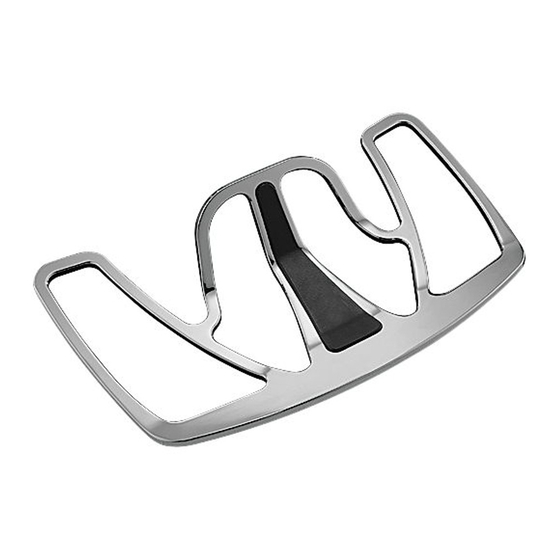

LUGGAGE RACK FOR GL1800, CHROME
THANK YOU FOR CHOOSING KURYAKYN!
Protect yourself and others from possible injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices regarding the installation, use, and care of this product.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN RESULT IN MINOR OR MODERATE POTENTIAL INJURY.
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN MAY NEGATIVELY AFFECT PRODUCT PERFORMANCE AND FUNCTIONALITY OR
DAMAGE THE PRODUCT ITSELF OR THE PRODUCT TO WHICH IT IS BEING ATTACHED.

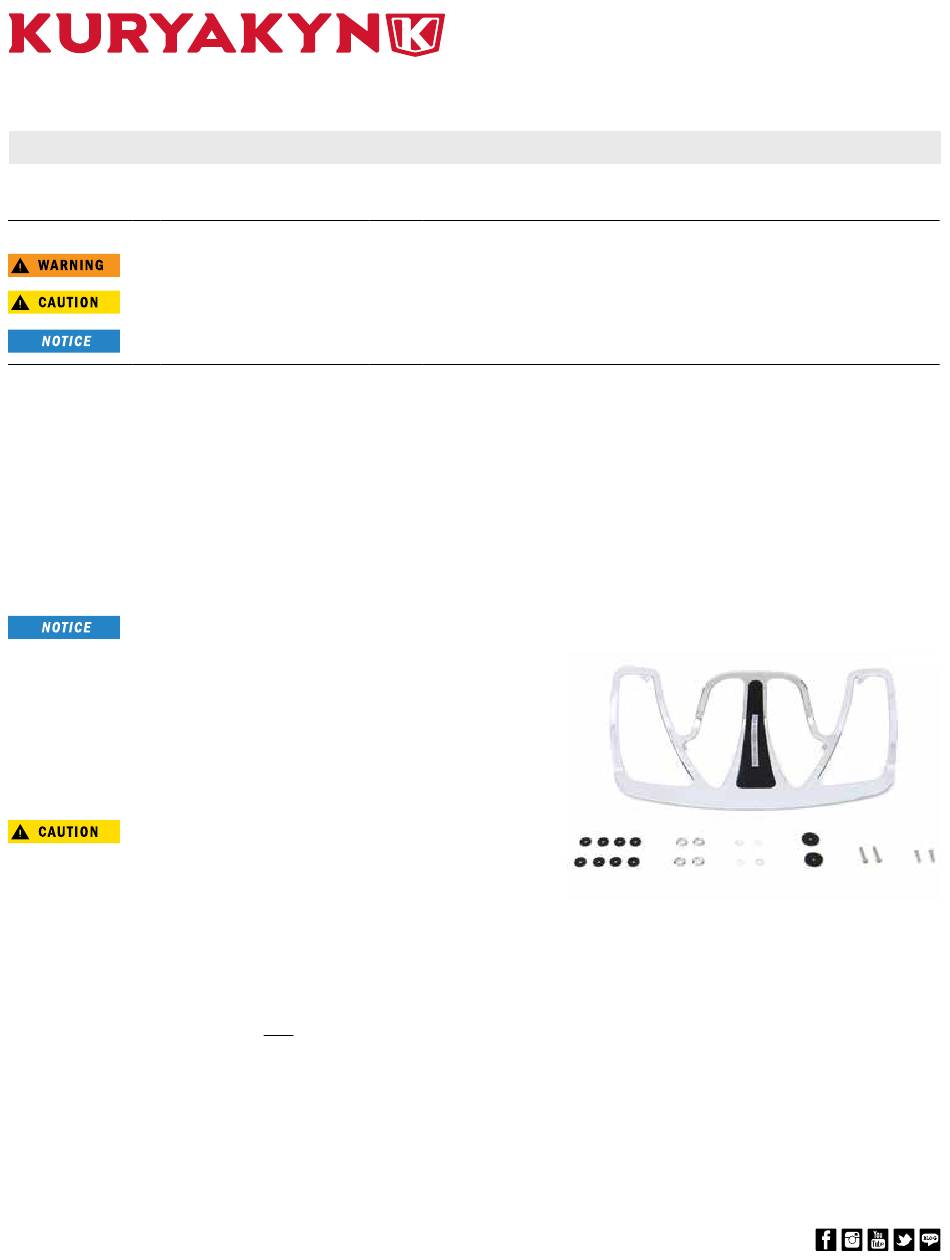

ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
1 Luggage Rack with Rubber Insert
Hardware Kit, containing:
4 Cup washers
2 Rubber Spacers with Adhesive Back
8 Rubber washers
YOU WILL ALSO NEED:
Set of Hex Wrenches, Drill and Drill Bits, Masking Tape, and a Marker or Pen
THESE INSTALLATION INSTRUCTIONS CONTAIN IMPORTANT INFORMATION. ENSURE THE END USER RECEIVES THIS COPY AND IS AWARE
OF ITS IMPORTANCE FOR FUTURE USE.
STEP 1
Read and understand all steps in the instructions before starting the
installation. Park the motorcycle on a hard, level surface and turn off
the ignition. Let motorcycle cool.
STEP 2
Without letting the Luggage Rack contact the Trunk Lid, hold it in
the approximate mounting location. Place masking tape on the top
(painted) surface of the trunk lid in the location of the luggage rack
legs to prevent scratching.
MEASURE TWICE – DRILL ONCE. DOUBLE CHECK ALL REFERENCE
MARKS MADE ON THE TRUNK LID BEFORE DRILLING. KURYAKYN WILL
NOT BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THIS INSTALLATION.
STEP 3
Align and place the luggage rack on top of the tour box, with the legs
resting on top of the taped areas. Trace the location of the legs on the
tape. Carefully mark the center of your tracings.
STEP 4
Double check to be certain the rack is centered in the position you
desire.
STEP 5
FOR '01-'17 MODELS ONLY
On the inside of the tour box, remove the hardware and inner surface
from the top lid.
FOR '18+ MODELS
Continue to Step 6.
PAGE 1
307151
DPF-MRK-003 REV A 3/21/18
1 Hardware Kit, containing: - CONTINUED -
2 #10–24 x 1" Button Head Cap Screws
2 #10–24 x 1-1/4" Button Head Cap Screws
4 1/4" Flat Washer
RUBBER
WASHER
CUP
FLAT RUBBER
WASHERS
WASHER SPACERS
WITH
ADHESIVE
K U R YA K Y N . C O M
866 277 9598 | INFO@KURYAKYN.COM
454 COUNTY ROAD VV SOMERSET, WI 54025
7151
PIC 1
1.25" 1"
SCREW SCREW
