REAR RUN-TURN-BRAKE CONTROLLER

PARTS INCLUDED

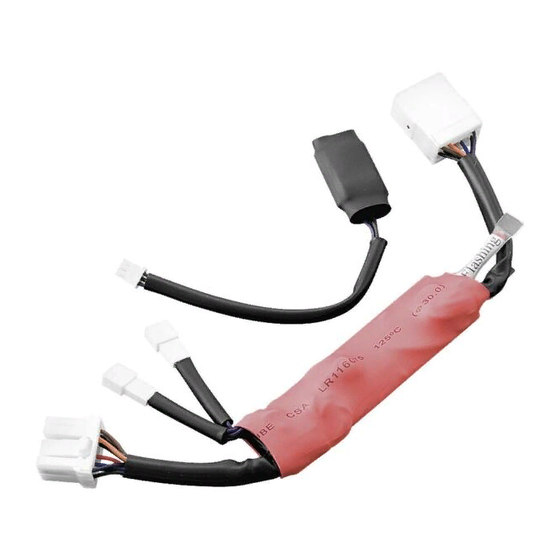

1 Run-Turn-Brake Controller Including:
1 "FLASH" Tab
1 Load Equalizer
1 Dielectric Grease Packet
1 Installation Instructions
Please read and understand entire instructions before starting installation.
THANK YOU FOR CHOOSING K
IN ORDER TO PROTECT YOU AND OTHERS FROM POSSIBLE INJURY AND/OR
PROPERTY DAMAGE OR LOSS, PLEASE PAY CLOSE ATTENTION TO ALL
INSTRUCTIONS, WARNINGS, CAUTIONS AND ATTENTION NOTES REGARDING
THE USE AND CARE OF THIS PRODUCT.
ATTENTION!
This indication alerts you to the fact that ignoring the contents
described herein may negatively affect product performance and
functionality.
CAUTION! This indication alerts you to the fact that ignoring the contents
described herein can result in potential injury or material
damage.
STRICTLY OBSERVE THE FOLLOWING GUIDELINES IN ORDER TO USE THE
PRODUCT PROPERLY AND AVOID POTENTIALLY DANGEROUS ACCIDENTS.

IMPORTANT INFORMATION: PLEASE READ BEFORE BEGINNING INSTALLATION

• This module is designed to work on motorcycles with rear wiring in stock-like
configuration. If the motorcycle is already equipped with an H-D accessory control
module or other aftermarket control module, it must be removed before installing the
Küryakyn Run-Turn- Brake Controller.
• The Küryakyn Run-Turn-Brake Controller is compatible with stock single circuit turn
signals as well as custom single circuit lights. If the stock turn signals have been
replaced with stock-style two-circuit lights or custom two-circuit lights, do not install
the Küryakyn Run-Turn-Brake Controller until the motorcycle is once again equipped
with single circuit lights and the motorcycle's wiring has been return to its stock
configuration.
• Any existing load equalizers should be removed prior to installation of the Küryakyn
Run-Turn-Brake Controller. If for some reason they are still needed after installation
of the Run-Turn-Brake Controller, they can be reinstalled as directed in STEP 6c.
There should NEVER be a load equalizer installed between the Run-Turn-Brake
Control Module and the rear lights!
• This plug-in module adds a "Run", "Turn", and "Brake" function to existing single
circuit OEM, halogen or single circuit L.E.D. Silver Bullets, or single circuit LED rear
turn signals. To comply with State or Federal regulations, the turn signals must be
equipped with red lenses or red L.E.D.'s.
• It is possible that when installed on motorcycles equipped with H-D security systems,
the security system warning light may stay illuminated. This is a "false alarm" only –
alarm operation will be unaffected. If this warning light proves bothersome to you, it
may be eliminated with the addition of the Alarm Compatible Load Equalizer,
P/N 4857, sold separately.
4859-24HD-1011 -cont.-
ϋ
RYAKYN!
INSTALLATION
4859
CUSTOMER SERVICE
INSTALLATION QUESTIONS
techsupport@kuryakyn.com

LIMITED WARRANTY

Küryakyn warrants that any Küryakyn products
sold hereunder, shall be free of defects in
materials and workmanship for a period of one
(1) year from the date of purchase by the
consumer excepting the following provisions:
● Küryakyn shall have no obligation in the event
the customer is unable to provide a receipt
showing the date the customer purchased the
●The product must be properly installed,
maintained and operated under
●Küryakyn makes no warranty, expressed or
implied, with respect to any gold plated
●Küryakyn shall not be liable for any
consequential and incidental damages, including
labor and paint, resulting from failure of a
Küryakyn product, failure to deliver, delay in
delivery, delivery in nonconforming condition, or
for any breech of contract or duty between
Küryakyn and a customer.
●Küryakyn products are often intended for use in
specific applications. Küryakyn makes no
warranty if a Küryakyn product is used in
applications other than intended.
●Küryakyn electrical products are warranted for
one (1) year from the date of purchase by the
consumer. L.E.D.'S contained in components of
Küryakyn products will be warranted for defects
in materials and workmanship for 3 years from
the date of purchase where as all other
components shall be warranted for one(1) year.
This includes, but is not limited to; control
modules, wiring, chrome & other components.
●Küryakyn makes no warranty of any kind in
regard to other manufacturer¹s products
distributed by Küryakyn. Küryakyn will pass on
all warranties made by the manufacturer and
where possible, will expedite the claim on behalf
of the customer, but ultimately, responsibility for
disposition of the warranty claim lies

ABOUT OUR CATALOG

For purchasing Küryakyn® products, you
can receive a complete catalog free of charge.
Send the Proof-of-Purchase below with
your address to: Küryakyn, P.O. Box 339,
Please indicate either Accessories Catalog for
Harley-Davidson® or GL & Metric Cruisers.
Be sure to ask your local dealer about other
Küryakyn® products, the motorcycle parts and
accessories designed for riders by riders.
©2005 Küryakyn USA® All Rights reserved.
877.370.3604 (toll free)
or call 715.247.2983
product(s).
normal conditions.
products.
with the manufacturer.
Somerset, WI 54025.
