Kuryakyn 4445 Installation Manual

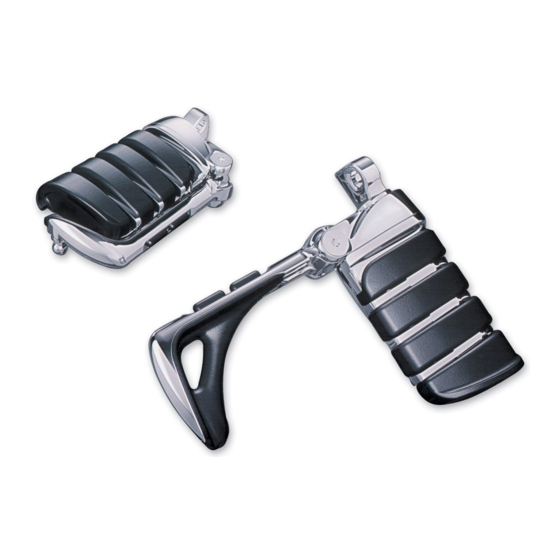

s w I t c h b l a d e P e g s
fI ts a n y model wI th h- d st yl e mal e mount foot Pe gs.
Part # Included
1
1
304445 1
Please read and understand entire instructions before starting installation.
thank you for choosIng küryakyn!
Please note
It is the installers' responsibility to make sure all fasteners (including pre-assembled) are
tightened before operation of motorcycle. Küryakyn will not warranty components that are
lost due to improper installation. Periodic maintenance may be required.

tools suggested

Allen wrenches, combination wrenches.
CAUTIOn! Prevent potentially serious injuries! Be sure all fasteners are secure before riding.

Procedure

steP 1 Remove the existing footpeg; save the mounting hardware for reuse.

steP 2 Loosely fasten the left and right Switchblade Pegs to the footpeg mount on the
motorcycle.
steP 3 Adjust the angle of the footpeg on the male mount then secure with the footpeg
fastener.

steP 4 Check the angle for comfort; re-adjust if necessary. Repeat for the opposite side.

-cont.-
f oot Peg
fastene r
swIng arm
4445-11HD-0606
Left Switchblade Peg Assembly
Right Switchblade Peg Assembly
Installation Instructions
PIc.1
footPeg
4 4 4 5
foot Peg
mount
fastener
wave
washer
male
mount
I N S TA L L AT I O N
