R E f L E C T I V E S M O k E S A D D L E S h I E L D S
fITS: ALL '00-UP SOfTAIL MODELS (Ex. DEUCE)

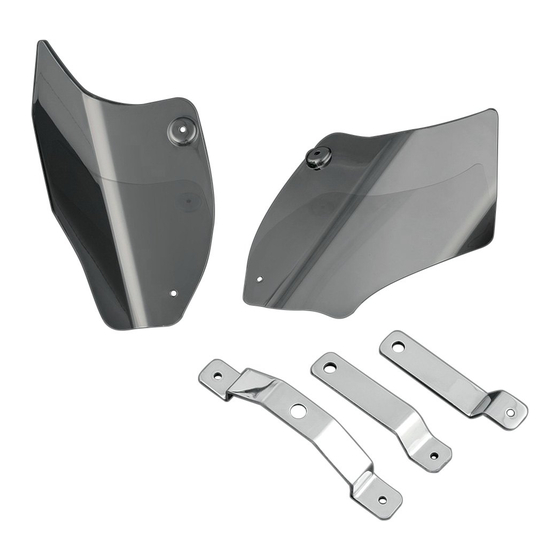

PARTS INCLUDED
1
Heat Shield, Left
1
Heat Shield, Right
1
Mounting Bracket, Front
2
Mounting Bracket, Rear
1
Hardware Kit, including:
4
10-24 x 1/2" BSCS Fastener, Stainless
4
10-24 High Crown Acorn Nut, Chrome
4
#10 Flat Washer, Stainless
4
#10 Split Lock Washers, Stainless
1
Installation Instructions
Please read and understand entire instructions before starting installation.
ThANk YOU fOR ChOOSING küRYAkYN!
IN ORDER TO PROTECT YOU AND OThERS fROM POSSIBLE INjURY
AND/OR PROPERTY DAMAGE OR LOSS, PLEASE PAY CLOSE ATTENTION
TO ALL INSTRUCTIONS, WARNINGS, CAUTIONS AND ATTENTION NOTES
REGARDING ThE USE AND CARE Of ThIS PRODUCT.
WARNING! THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE
CONTENTS DESCRIBED HEREIN CAN RESULT IN POTENTIAL DEATH OR
SERIOUS INJURY.
CAUTION!
This indication alerts you to the fact that ignoring the contents described herein
can result in potential injury or material damage.
ATTENTION!
This indication alerts you to the fact that ignoring the contents described herein
may negatively affect product performance and functionality.
PLEASE NOTE
It is the installers responsibility to make sure all fasteners (including pre-assembled) are
tightened before operation of motorcycle. Küryakyn will not warranty components that are lost
due to improper installation. Periodic maintenance may be required.
CAUTION!
Clean only with warm water and a mild, non-abrasive soap. Some cleaning
products contain harsh chemicals that can severely damage product and
void warranty.
TOOLS SUGGESTED
Torx-driver (T40), hex wrench (1/8"), combination wrench (3/8"), socket (1/2") and ratchet.
ATTENTION!
A factory service manual may be helpful in performing this installation. Do not
attempt to perform this installation if you are not confident in your ability to
complete all steps in the procedure; consult a trained technician.
1186-14HD-0309
