Kuryakyn 8446 Installation Instructions

STANDARD HYPERCHARGER
Thank You For Choosing Küryakyn!
Protect yourself and others from potential injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices
regarding the installation, use, and care of this product.
THIS PRODUCT IS NOT LEGAL FOR SALE OR USE ON POLLUTION CONTROLLED VEHICLES.

ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:

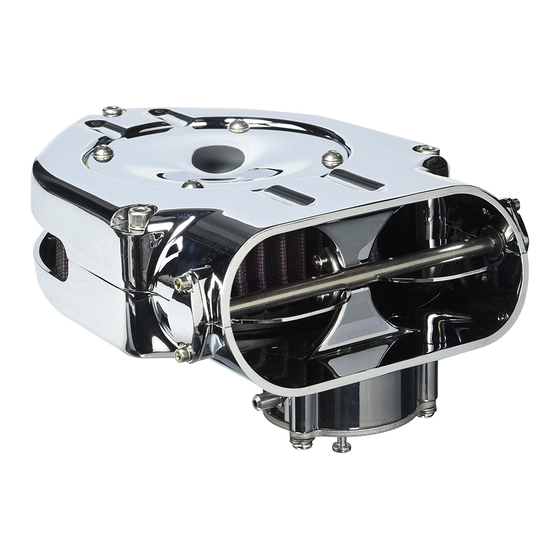

1 Hypercharger Assembly with Hardware Bag Containing:
(3)1/4"-20 X 1-5/8" (2) #6-32 X 3/8" (2) #6 Washers—NOT USED
1 Dual Velocity Ring in Bag Inside Hypercharger Assembly
1 K&N Air Filter
1 Hardware Kit including:
1
1
3
1
2
1 Installation Instructions
YOU WILL ALSO NEED:
Set of Hex Wrenches, Socket Set with Ratchet
8446-12HD-0715
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN
RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
This indication alerts you to the fact that ignoring the contents described herein may negatively affect product per-
formance and functionality or damage the product itself or the product to which it is being attached.
Hose Fitting
Rubber Hose
1/4"-20 x 5/8" Socket Head Cap Screws
Gasket with Adhesive
Gaskets w/o Adhesive
This is a complete air cleaner kit (CV bolt pattern) that can be used with adapters, brackets or mounting kits to
cover applications for which we do not offer a complete kit.
This Hypercharger can be used in a variety of air cleaner applications using a proper mounting bracket (available at
www.küryakyn.com) and vacuum source .
These installation instructions contain important information. Ensure that the end user receives this copy and is
aware of its importance for future use.
THE END USER'S SAFETY DEPENDS UPON PROPER INSTALLATION OF THIS PRODUCT. IF A STEP IN
THESE INSTRUCTIONS IS NOT WITHIN YOUR CAPABILITIES OR YOU DO NOT HAVE THE CORRECT
TOOLS, HAVE YOUR DEALER PERFORM THE PROCEDURE. IMPROPER INSTALLATION OF THIS
PRODUCT COULD RESULT IN DEATH OR SERIOUS INJURY.
ACCIDENTAL VEHICLE START-UP COULD CAUSE DEATH OR SERIOUS INJURY, REMOVE THE MAIN
FUSE BEFORE PROCEEDING.
INSTALLATION MAY REQUIRE CONTACT WITH THE ENGINE AND EXHAUST SYSTEM; ENSURE THAT
IT HAS FULLY COOLED BEFORE BEGINNING TO PREVENT INJURY.
FUEL VAPORS ARE VERY FLAMMABLE! PERFORM THIS INSTALLATION IN A WELL VENTILATED AR-
EA AWAY FROM SPARKS AND OPEN FLAMES. FUEL VAPORS MAY IGNITE CAUSING AN EXPLOSION
THAT CAN LEAD TO SERIOUS INJURY OR DEATH.
Avoid damage to the motorcycle. Protect painted surfaces with a soft cloth or blanket.
Ensure proper clearance between the Hypercharger and the fuel tank BEFORE operating the motorcycle.
8446
Page 1
