LUGGAGE RACK RISERS, GLOSS BLACK
Thank You For Choosing Küryakyn!
Protect yourself and others from potential injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices
regarding the installation, use, and care of this product.

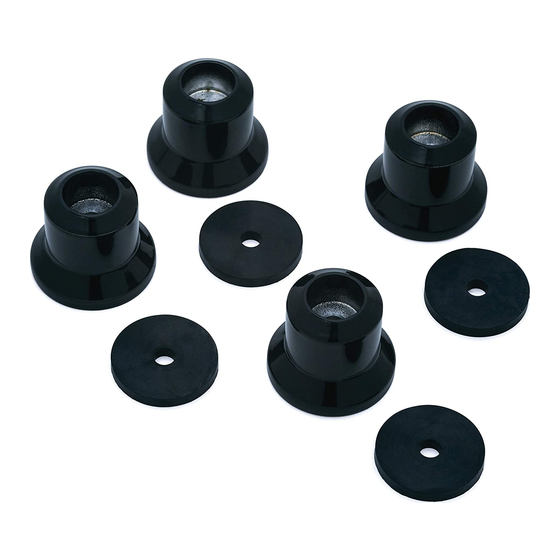

ENSURE THAT THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
4
Luggage Rack Spacer
1
Hardware Kit including:
2
2
4
4
4
You will also need:
Phillips screwdriver, set of hex wrenches, 1/4" drill bit and drill
STEP 1
Read and understand all steps in the instructions before starting the installation. Park the motorcycle on a hard, level surface and turn
IGN OFF.
STEP 2
If equipped, put the motorcycle on the center-stand.
STEP 3
Disconnect the battery.
STEP 4
Open the top trunk lid; remove the 15 screws securing the plastic underside of the lid. Save the hardware for later use. See Pic. 1.
STEP 5
Remove the two screws on each latch ring. See Pic. 1.
STEP 6
Pull the trunk lid underside down; disconnect the multi-pin connector. See Pic. 2.
STEP 7
Set aside the trunk lid underside.
STEP 8
Remove the existing luggage rack and hardware; save for later use.
NOTE:
It is recommended that the existing rack mount holes in the trunk lid be enlarged with a 1/4" drill bit to allow for alignment and
ease of installation.
For installation where a trunk spoiler is already installed, ensure that there is enough clearance to install rack risers before
drilling any holes.
7158-11MC-0216
THIS INDICATION ALERTS YOU TO THE FACT THAT IGNORING THE CONTENTS DESCRIBED HEREIN CAN
RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
This indication alerts you to the fact that ignoring the contents described herein may negatively affect product per-
formance and functionality or damage the product itself or the product to which it is being attached.
#10-24 x 2" BSCS
#10-24 x 1-3/4" BSCS
Spacer, .2 x .75 x .125
Spacer, .2 x 1.00 x .125
1/4" SAE Flat washer
These installation instructions contain important information. Ensure that the end user receives this copy and is
aware of its importance for future use.
Avoid damage to the motorcycle. Protect painted surfaces with a soft cloth or blanket.
7158
Page 1
Advertisement
Table of Contents
Related Manuals for Kuryakyn 7158
Summary of Contents for Kuryakyn 7158
- Page 1 LUGGAGE RACK RISERS, GLOSS BLACK 7158 Thank You For Choosing Küryakyn! Protect yourself and others from potential injury and property damage or loss. Pay close attention to all instructions, warnings, cautions, and notices regarding the installation, use, and care of this product.
- Page 2 PIC 1 STEP 9 Insert a 1 3/4” screw, washer and small rubber spacer through the under- side of the trunk lid in one of the front holes. See Fig 1. STEP 10 Install a large rubber spacer and rack riser over the protruding end of the screw on the topside of the trunk lid.
- Page 3 It is the end user’s responsibility to ensure that all fasteners (including pre-assembled) are tightened before operation of the motorcycle. Kuryakyn will not provide warranty coverage on products or components lost or damaged due to improper installation or lack of maintenance. Periodic inspection and maintenance are required on all fasteners.
