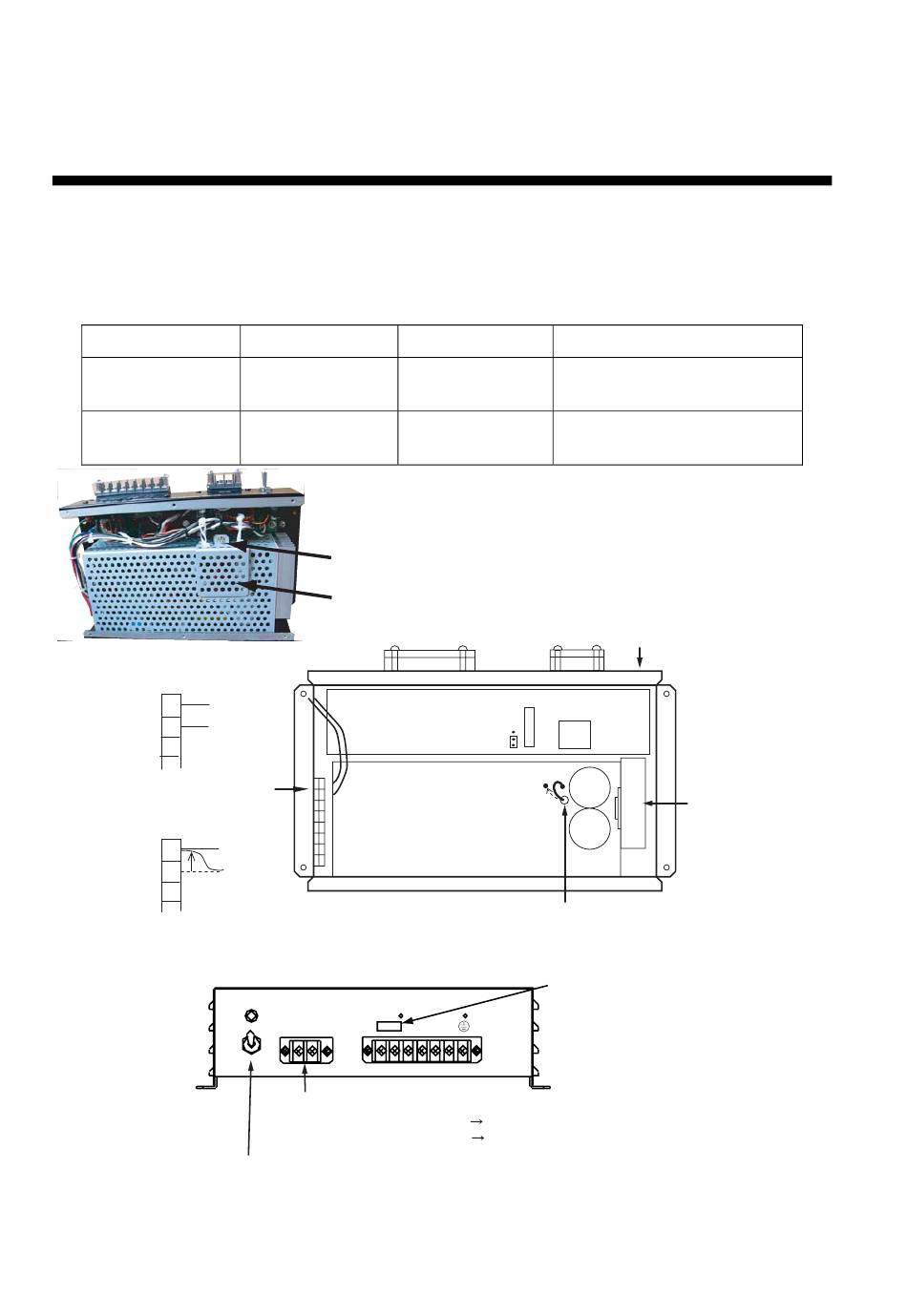

4. CHANGING POWER SUPPLY
SPECIFICATIONS
The AC/DC power supply unit PR-240 is shipped ready for connection to a 200-230 VAC
ship's mains. If the ship's mains is 100 VAC-115 VAC, change the tap connection and
terminal board connection as below. Attach a label supplied as accessories to the front
panel according to the ship's mains.
Ship's mains
200-230 VAC
100-115 VAC
(a)
200-230 VAC
Black
1
2
Grey
3
Terminal board
100-115 VAC
(b)
Black
1
2
3
Front panel
Note: The DC output load must be less than 8A.
Tap connection
SEL 230 V
SEL 115 V
Remove screw
and cover.
Cover
1
2
3
4
5
6
7
8
Grey
AC FAIL:Connect to Alarm system.
Output Setting: Normal Open
Normal Close
AC Power Switch
(When connecting DC input, note that the DC power is supplied
even though this switch is turned off.)
Terminal board
200-230 VAC 2.2-1.7 A
Below (a)
1φ 50/60 Hz
100-115 VAC 3.2-2.6 A
Below (b)
1φ 50/60 Hz
Relay
Coil
3
J4
2
1
SEL
115V
SEL
230V
Tap connection
(Pull out to disconnect.)
Attach appropriate label.
Set plug to 1 & 2 pins of J4 (Factory setting)
Set plug to 2 & 3 pins of J4
16
Label
Front panel
Heat sink
