1. MOUNTING THE UNIT
10. Wrap self-bonding tape around the connection of antenna base and pipe, and then wind
vinyl tape over self-bonding tape.
11. Remount the antenna unit (upper) on the antenna base. (Torque: 2.6 N·m ± 10%)
12. Fix the ground wire RW-4747 (supplied) between the ground terminal on the antenna
unit and the ship's ground point.

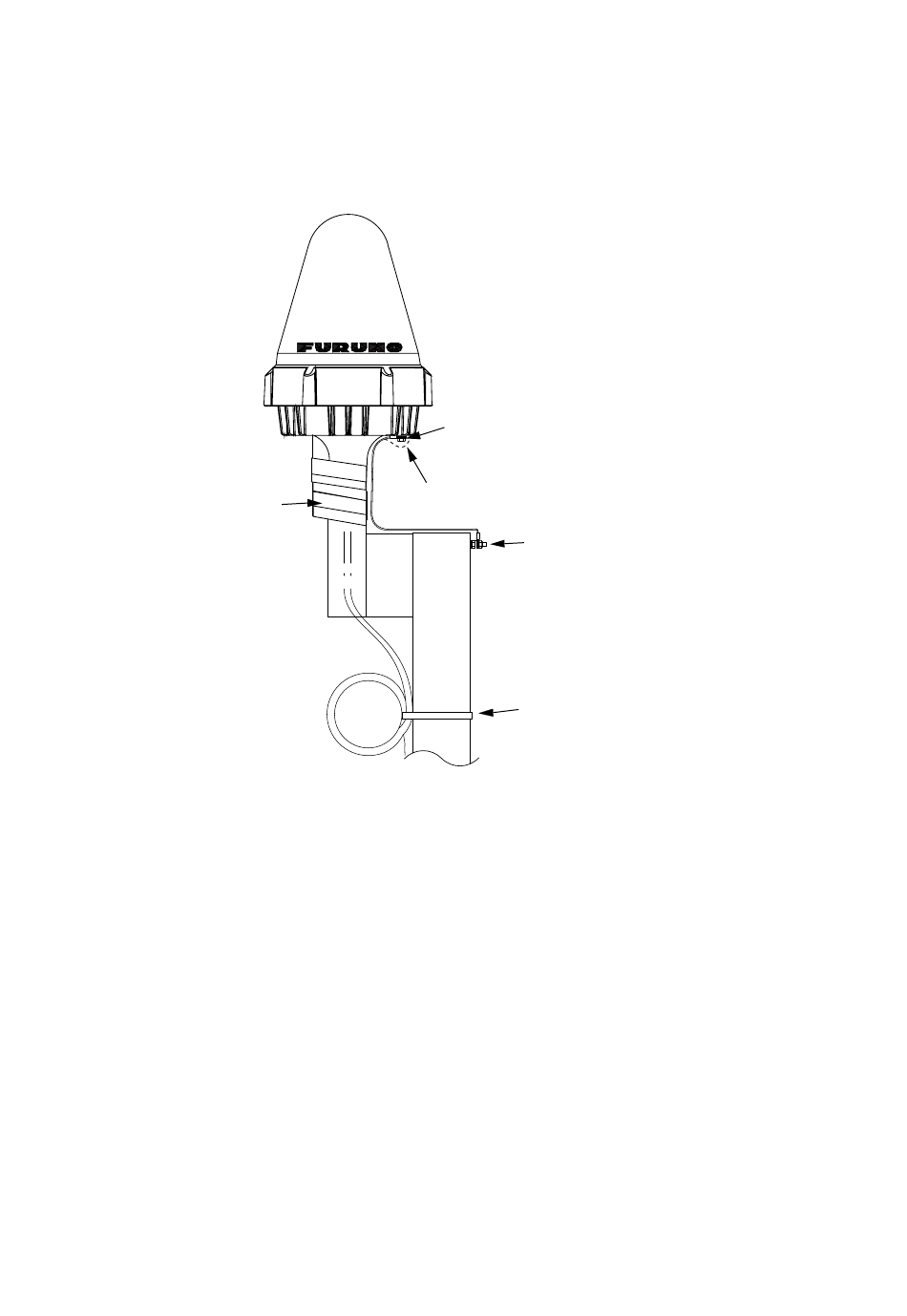

Taping
(self-bonding
tape and vinyl
tape)
13. Apply silicone rubber (supplied) to the ground terminal and three screws at the bottom of
antenna base.
14. Fix the antenna cable to the mast with a cable tie (local supply).
Ground terminal
Apply silicone rubber.
Ship's ground point
Cable tie
(weatherproofed)
