1. MOUNTING THE UNIT

12. Fix the ground wire RW-4747 (supplied) between the ground terminal on the antenna

unit and the ground stud on the mast.

13. Connect the antenna cable (50 or 100 m) and cable assy (attached at step 4).

14. Wrap the connector with self-bonding tape and then vinyl tape. Bind the cable end with a

cable tie (local supply).

15. Fix the cable to the mast with cable tie (local supply).

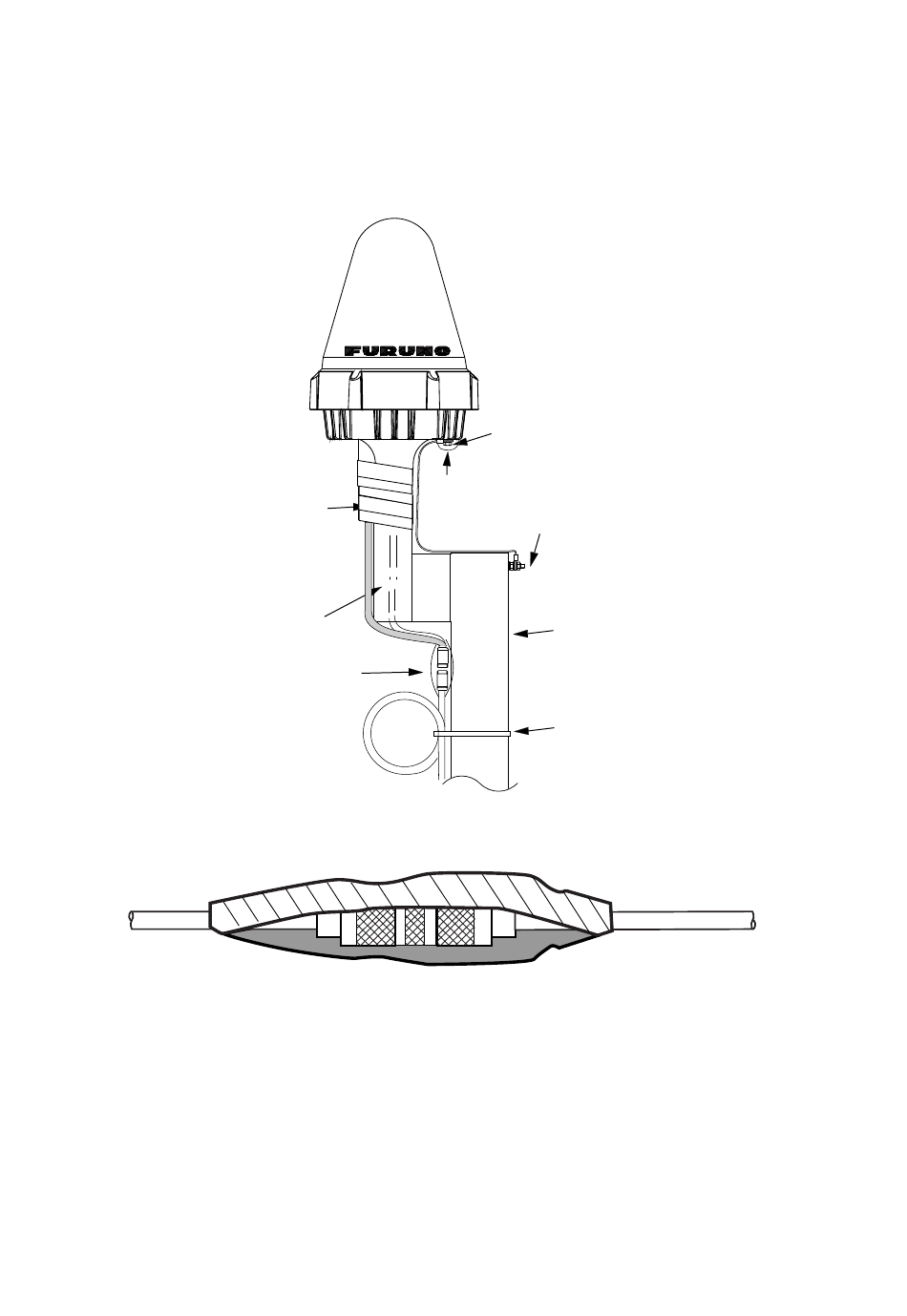

See the figure in below.

Taping

(Self-bonding

tape and vinyl

tape)

Pipe

Mounting

Waterproofing

Ground terminal

Apply silicone rubber.

Ship's ground point

Mast

Cable tie

(Weatherproofed)
