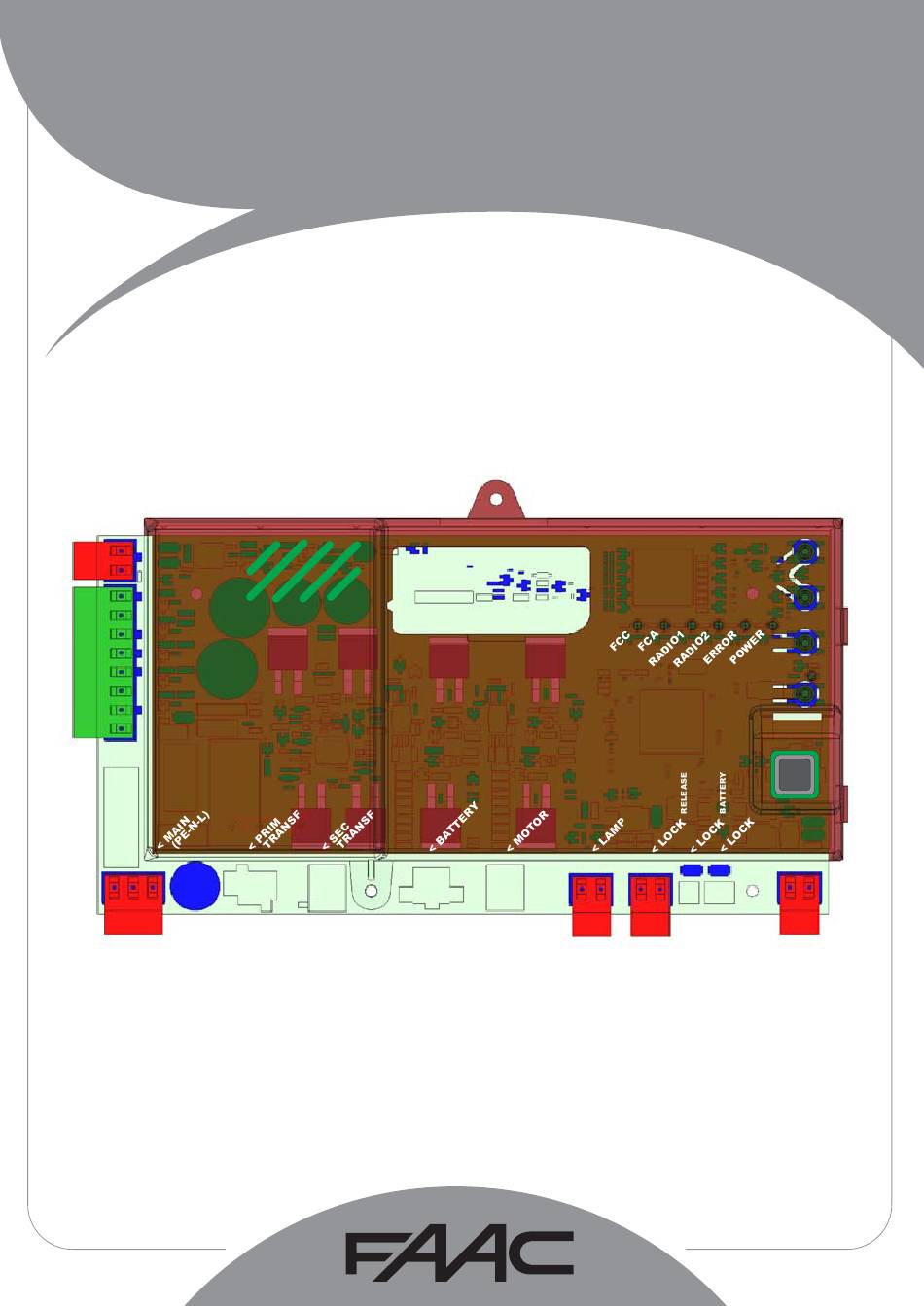

E720
E720
< BUS
2EASY
< OPEN A
< GND
< OPEN B / CLOSE
/ SAFE
/ SAFE
< STOP
/ SAFE
/ SAFE
< FSW OP
< GND
< FSW CL
< +24
RADIO XF
F
-
+
SETUP
USB
OUT
- +

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E720 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FAAC E720

  • Page 1 E720 E720 < BUS 2EASY < OPEN A < GND < OPEN B / CLOSE / SAFE / SAFE RADIO XF < STOP / SAFE / SAFE < FSW OP SETUP < GND < FSW CL < +24...
  • Page 2: Table Of Contents

    • conforms to the essential safety requirements of the following EEC directives 2006/95/EC Low Voltage Directive 2004/108/EC Electromagnetic Compatibility Directive Additional note: This product has undergone testing in a typical standard configuration (all products built by FAAC S.p.A. ) Bologna, 01-05-2010 The Managing Director A. Marcellan WARNINGS •...
  • Page 3: Warnings

    E720 1 WARNINGS Before attempting any work on the electronic device (connections, maintenance), always turn off power. Install, upstream of the system, a differential thermal breaker with adequate tripping threshold. Connect the earth lead to the appropriate terminal. Always separate power cables from control and safety cables (push-button, receiver, photocells, etc.).
  • Page 4: Component Description

    2.1 COMPONENT DESCRIPTION 3 TECHNICAL SPECIFICATIONS SIGNALLING AND PROGRAMMING DISPLAY Power supply 230 V~ 50 Hz PROGRAMMING PUSH-BUTTON "F". Power consumption 10 W from mains stand-by PROGRAMMING PUSH-BUTTON "-". Motor max. load PROGRAMMING PUSH-BUTTON "+". Accessory 24 Vdc “SETUP” PUSH-BUTTON power supply Accessory 24 Vdc max.
  • Page 5: Electric Connections

    4 ELECTRIC CONNECTIONS STOP/ SAFE STOP/ SAFE OPEN B OPEN B CLOSE CLOSE SAFE SAFE / SAFE / SAFE To connect the photo- cells and safety devices, consult paragraph 4.2 MOTOR RELEASE CONTACT (Locks the motor when the motor release handle is operated) Fig.
  • Page 6: Bus-2Easy Photocells

    Follow the instructions in the following table to check that 4.1 BUS-2EASY PHOTOCELLS the BUS-2EASY connection status is efficient. This board is equipped with a BUS-2EASY circuit that can be used to easily connect a high number of auxiliary BUS- Tab.
  • Page 7 Connection of a pair of closing photocells and a pair of Connection of a pair of opening photocells opening/closing photocells Other safety devices / SAFE / SAFE / SAFE / SAFE Fig. 6 Connection of a pair of closing photocells and a pair of opening photocells Fig.
  • Page 8: Programming

    The change of the programming para– 5 PROGRAMMING meters becomes effective, while final stor- It is necessary to access PROGRAMMING mode in order age will not take place until programming to program automated system operation. mode has been exited and the input status Programming is divided in two parts: 1 LEVEL and 2 is again displayed.
  • Page 9 Display Function Default MOTOR POWER: Adjusts the motor power level = minimum power = maximum power When the power value has been changed, it is advisable to perform a new SETUP (see par. 7.3) OPENING SPEED: Adjusts the motor opening speed to 10 levels = minimum speed = maximum speed When the speed value has been changed, it is advisable to perform a new...
  • Page 10: Level Programming

    5.2 2 LEVEL PROGRAMMING To access 2ND LEVEL PROGRAMMING, press push-button F and hold down while pressing push-button +: • if you also release push-button F, the display shows the value of the function that can be modified with keys + and -. •...
  • Page 11 Display Function Default PARTIAL OPENING: It is possible to adjust the width of the partial leaf opening as a percentage of the total gate travel. Adjustable from 0 to 99% in 1% steps. = no partial opening = minimum partial opening = maximum partial opening TIME-OUT It is advisable to set a value higher than the time taken by the gate to open or close fully.
  • Page 12: Storing Radio Code

    Display Function Default SERVICE REQUEST - CYCLE COUNTER (combined with the two successive functions): = when the set number of cycles is reached with successive functions , the system carries out an 8 sec. preflashing sequence (in addition to the sequence already set using the function) before each movement.
  • Page 13: Storing Slh Radiocontrols

    To use radiocontrols with the same code, copy the 6.3 STORING LC/RC RADIOCONTROLS ON - OFF combination to the other radiocontrols (ONLY FOR SOME MARKETS) without the need to change anything on the control board. It is possible to store a maximum of 256 codes divided between OPEN A and 6.2 STORING SLH RADIOCONTROLS OPEN B/CLOSE.
  • Page 14: Operational Start-Up

    7 OPERATIONAL START-UP 7.1 CHECKING THE LEDS After making all the connections and powering the board, check the status of the leds against the status of the inputs in the following table (in Fig. 6, the condition where the automated system is closed in stand-by). These LEDs indicate the status of the board inputs and are of considerable importance to automated system move- ment: Note that:...
  • Page 15: Positioning Limit Switches

    7.2 POSITIONING LIMIT SWITCHES To ensure correct positioning of the limit switch magnets, the control unit must be installed and correctly connected with all control and safety accessories. The operator is equipped with a magnetic limit switch sensor built directly into the electronic control board. The gate is stopped, during opening or closing, when the polarised magnet secured to the upper part of the rack activates the sensor.
  • Page 16: Setup

    7.3 SETUP 9 ALARM AND ERROR SIGNALS If alarms occur (conditions that do not impair the opera- When the board is powered when no SETUP tion of the gate) or errors (conditions that lock the gate has ever been carried out, or if the board operation) the display shows a number relating to the requires it, the code will flash on the...
  • Page 17: Function Logics

    10 FUNCTION LOGICS The CLOSE can be activated at the OPEN B The effects on the other active pulse inputs input from the programming level are shown in brackets LOGIC "E" PULSES OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP STATUS OF AUTOMATED SYSTEM...
  • Page 18 LOGIC "AP" PULSES OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP STATUS OF AUTOMATED SYSTEM opens the gate parti a l l y opens and recl o ses after no effect no effect no effect CLOSED and cl o ses i t after pause no effect no effect...
  • Page 19 LOGIC "SA" PULSES OPEN A OPEN B CLOSE STOP FSW OP FSW CL FSW CL/OP STATUS OF AUTOMATED SYSTEM Opens the gate parti a l l y opens and recl o ses after no effect no effect no effect CLOSED and cl o ses i t after pause no effect no effect...
  • Page 20 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. FAAC se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
