Summary of Contents for FAAC 460-P

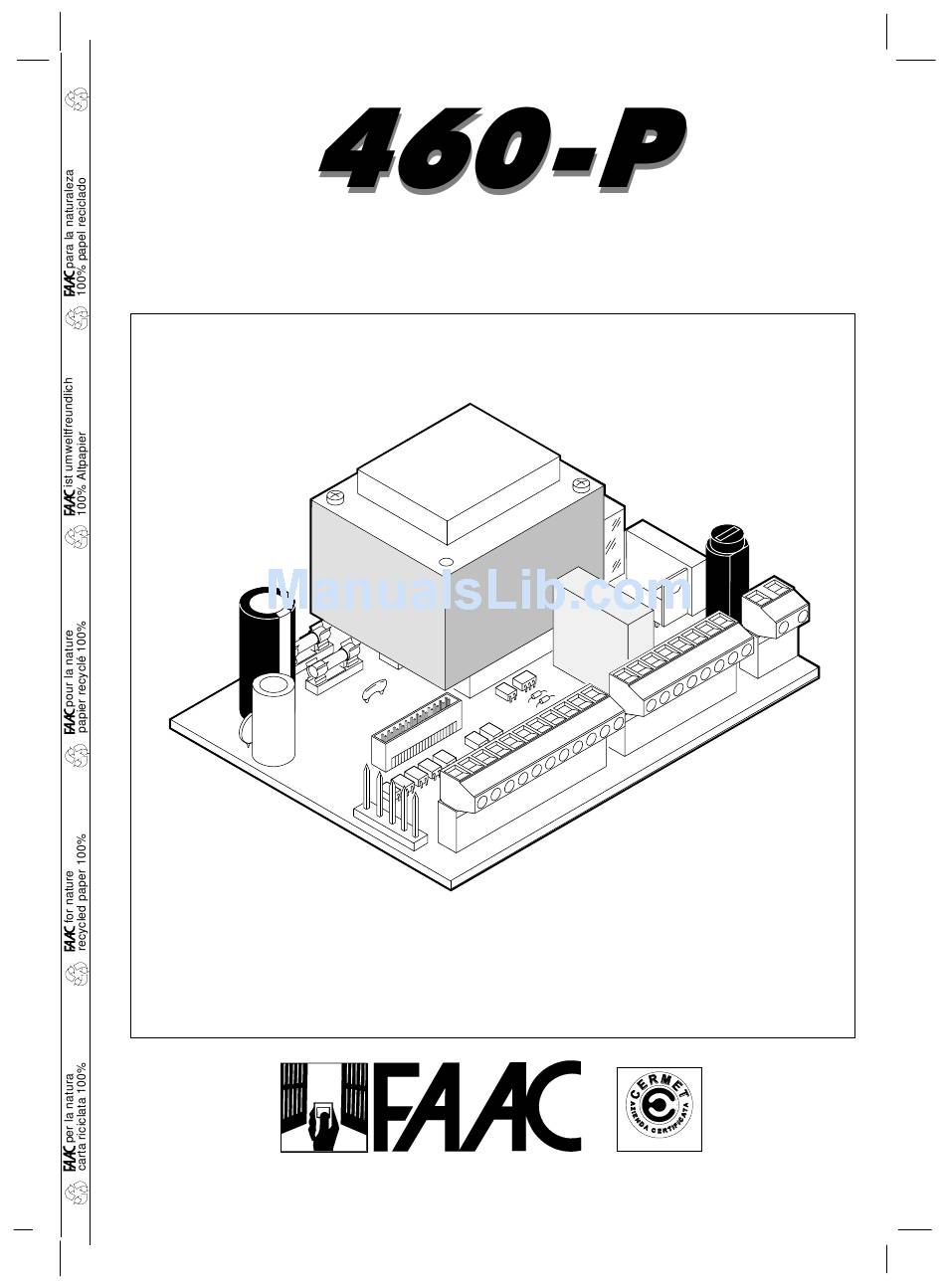

  • Page 1 UNI EN ISO 9001-085...
  • Page 2 •complies with the essential safety requirements of the following directives : 73/23/EEC and subsequent amendment 93/68/EEC. 89/336/EEC and subsequent amendment 92/31/EEC and 93/68/EEC Additional note: These products have undergone tests in a typical uniform configuration (all products manufactured by FAAC S.p.A.). Bologna, 1 January 1997 Managing Director A. Bassi...
  • Page 3 17) Each installation must be fitted with at least one flashing light (e.g. FAAC LAMP, MINILAMP etc.) as well as a warning plate suitably fixed to the gate, besides the safety devices as per point 16. above.

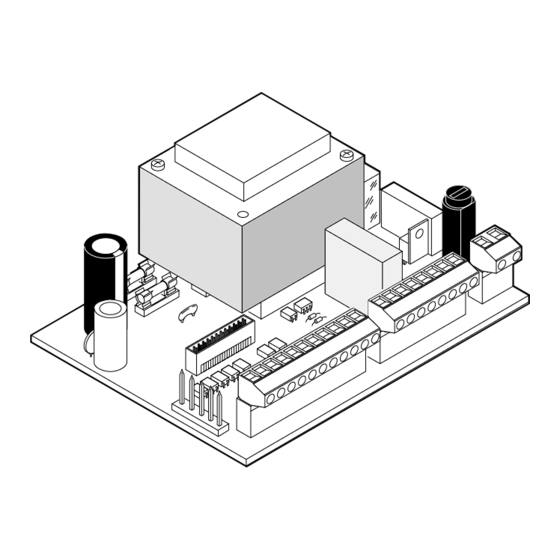

  • Page 4 ENGLISH ENGLISH 1. DESCRIPTION The 460P is a microprocessor-based programmable electronic control unit for hydraulic operators constructed in SMT technology. It is supplied in a standard configuration which can be modified using the FAACTOTUM programmer. 1.1 TECHNICAL SPECIFICATIONS 1.2 PROGRAMMABLE PARAMETERS Table 1 460P hardware characteristics Table 4 Parameters that can be programmed with FAACTOTUM Power supply...
  • Page 5 2. ELECTRICAL CONNECTIONS USING STANDARD CONFIGURATION 460P F-TX LAMP C OP1 CL1 C OP2 CL2 14 15 16 17 18 FAAC LAMP 230 Vac 24 Vdc MINILAMP 50 Hz 3 W max Fig. 2 Terminal block J2 (low tension) Note about safety devices These are all devices (photocells, safety edges, magnetic coils, 1 - IN1 = OPEN-A command - complete opening (N.O.)
  • Page 6 ENGLISH ENGLISH Examples of application of safety devices and connections (using the 460P standard configuration) FAILSAFE disabled No safety device connected One pneumatic safety edge connected as closure safety device and once connected as opening safety device IN4 IN5 10 11 IN4 IN5 10 11 Fig.
  • Page 7 150 mA Terminal block J3 (high-tension outputs) 12 and 13- LAMP (230Vac) Ter minals for connecting the flashing light (FAAC Lamp, Minilamp) 14,15,16 - COM/OP1/CL1 = MOTOR 1 Connection of Motor 1 (delayed closure) COM = motor common (blue cable) N.B.
  • Page 8 ENGLISH ENGLISH 4. OPTIONAL MODULES Connector J1 The optional modules are additional electronic cards installed on the 460P. Optional modules (MEI - MEL1 - MEL2) and/or the FAACTOTUM Each module has two connectors: one on the soldered side, the connection cable must be inserted in connector J1 (Fig. 14). other on the component side.
  • Page 9 ENGLISH ENGLISH MEL-1 1 : negative MEL-2 2 : positive 3 : free common contact N.B. the maximum capacity 5 : free contact (N.O.) of the free contact is 5A. 6 : free contact (N.O.) External power supply EL 1 - EL 2 : 12Vdc 12ohm electric locks EL 2 EL 2...
  • Page 10 ENGLISH ENGLISH IN10 - GC1/FCA1 = Gatecoder 1 / Opening limit switch 1 This input varies according to the programming performed (use of Gatecoder or Limit switch): Gatecoder used = GC1 This is the input for the signal coming from the Gatecoder installed on the leaf connected to IN6 IN7 IN8 IN9 IN10 IN11 the motor M1 (LEAF 1).
  • Page 11 ENGLISH ENGLISH Tighten the dowel (5). Limitations in assigning of inputs: Connect the GATECODER to the 460P card. The terminal IN1 (OPEN-A) does not appear in the assigning Even if the Gatecoder is used, opening and closing mechanical cycle because it cannot be changed. stops are required for correct operation of the automation.
  • Page 12 Table 9 Standard automatic operating logic LOGIC “A” PULSES OPEN-A GATE STATUS OPEN-B CLOSE STOP FSW-OP FSW-CL FSW-OP/CL SAFE-OP SAFE-CL SAFE-OP/CL CLOSED opens leaves and opens single leaf and no effect no effect no effect no effect no effect no effect no effect no effect recloses after pause...
  • Page 13 ENGLISH ENGLISH 7. FAILSAFE FAILSAFE is a system for checking the functionality of the photocells. The check is always performed before the motors are started. It turns off the power supply temporarily to the photocell transmitter and checks that this causes the contact on the receiver to open. If it does not, movement of the leaves is inhibited for safety reasons. To enable the FAILSAFE it must be set during the programming phase.
  • Page 14 ENGLISH ENGLISH CONNECTION EXAMPLES ON SAFE-OP AND SAFE-CL INPUTS (using 460P standard configuration and MEI module) FAILSAFE disabled An opening pneumatic safety edge (SAFE OP) No safety device connected and a closing pneumatic safety edge (SAFE-CL) connected IN7 IN8 IN7 IN8 SAFE SAFE SAFE...
  • Page 15 ENGLISH ENGLISH SYSTEM CONFIGURATION N° Assegnazione Assegnazione INPUT STANDARD Customised Tempo pausa Pause time assigning assigning INGRESSO STANDARD Personalizzata OP. delay time Tempo ritardo AP. OPEN-A OPEN-A CL. delay time Tempo ritardo CH. Standard logic : OPEN-B STOP FSW-CL Customised logic :_____________ FSW-OP CLOSE...
  • Page 16 Le descrizioni e le illustrazioni del presente manuale non sono impegnative. La FAAC si riserva il diritto, lasciando inalterate le caratteristiche essenziali dell’apparecchiatura, di apportare in qualunque momento e senza impegnarsi ad aggiornare la presente pubblicazione, le modifiche che essa ritiene convenienti per miglioramenti tecnici o per qualsiasi altra esigenza di carattere costruttivo o commerciale.
