INFORMATION: - The engine (CN4) and electromagnets (CN18) cables
are provided alongside CATRAX Automatic Clip.
The following sections concern important aspects of CATRAX Automatic Clip control
board configuration and connections of CATRAX Automatic Clip.

6.5.1 Inputs

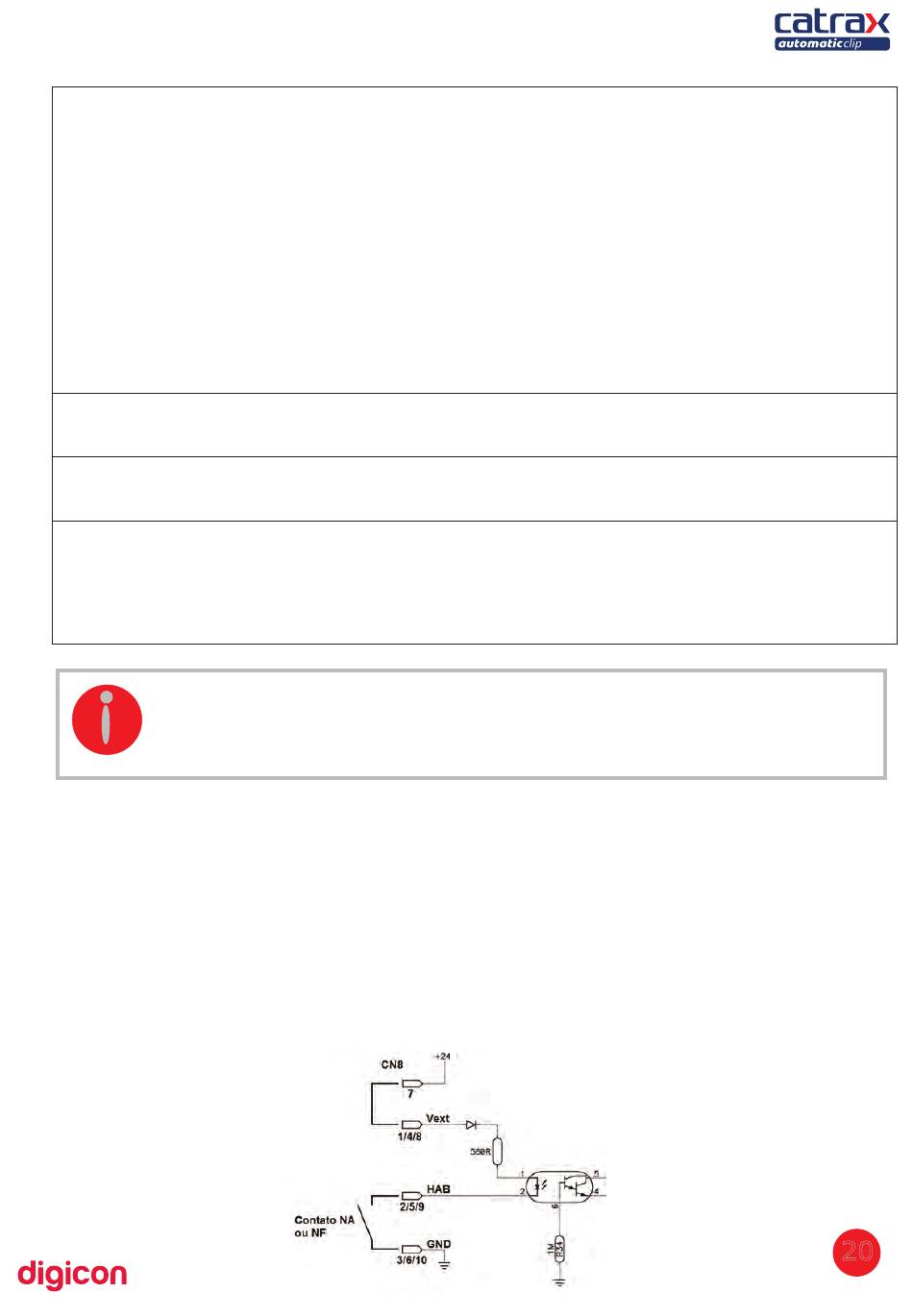

The input signals or passage clearance (HAB1 and HAB2) or anti-panic (BQC) can be
originated by a relay contact, pushbutton contact, tension from 5 to 24 Vca/cc, from
110 to 220 Vca/cc. To enable passage through relay contact or pushbutton, make the
connection as shown below:
OUTPUTS
NO or NC Contact (HAB1 return)
Contact C (HAB1 return)
NO or NC Contact (HAB2 return)
Contact C (HAB2 return)
Output for indicative X (open collector NPN – maximum 500 mA)
Output for arrow > (open collector NPN – maximum 500 mA) blue
Output for arrow < (open collector NPN – maximum 500 mA)
+24V c (indicative arrows' power) red wire d
GND (indicative arrows' power) black wire
+ solenoid of badge collector box
- solenoid of badge collector box
Sound signal (open collector – NPN)
SOL BQC
(+) 24V c d
SIGNAL
BQC SENSOR
(+) 2 4V c d
SIGNAL
ELECTROMAGNETS
(+) electromagnet 1
(-) electromagnet 1
(+) electromagnet 2
(-) electromagnet 2
