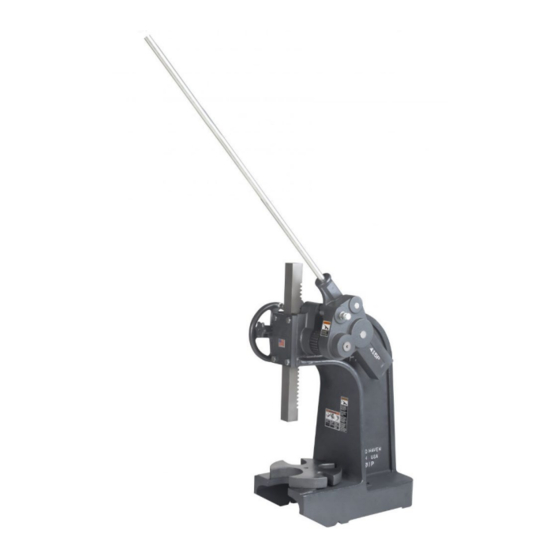

DAKE COMPOUND LEVERAGE ARBOR PRESS
Model 3
INSTRUCTIONAL MANUAL
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Grand Haven, MI 49417
Advertisement
Table of Contents
Related Manuals for Laguna Tools DAKE 3
Summary of Contents for Laguna Tools DAKE 3
- Page 1 DAKE COMPOUND LEVERAGE ARBOR PRESS Model 3 INSTRUCTIONAL MANUAL WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 DAKE STANDARD TERMS & CONDITIONS OF SALE ........5 SPECIFICATIONS ....................6 SAFETY ........................ 6 HANDLE POSITION .................. -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines and parts include a 30-day return option. These policies are valid from the date of final shipment to the end user. -
Page 6: Dake Standard Terms & Conditions Of Sale
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD TERMS & CONDITIONS OF SALE All proposals and quotations for the original sale of our products are subject to the following terms and conditions: ACCEPTANCE OF ORDER: All orders are subject to acceptance by Dake at its main office in Grand Haven, Michigan. APPLICABLE LAWS: This quotation or acceptance shall be governed in all respects by the laws of the State of Michigan. -
Page 7: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Model Largest arbor 5-3/4” Number 903005 Max ram to table 11-1/2” Capacity 12 tons Min ram to table 17-1/4” Leverage ration 112:1 Base length 25-1/2” Ram size 2 x 2 x 24” Base width 13”... -
Page 8: Handle Position
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com HANDLE POSITION CAUTION: NEVER PULL THE PRESS HANDLE PAST THE HORIZONTAL POSITION! To avoid personal injury and damaging the press only pull until the handle is horizontal, then return the handle back up as far as it allows before bringing the handle back down. This ensures that the pawl fully engages with the gear teeth to prevent tooth damage and gear slippage that can cause harm to the machine and worker. -
Page 9: Exploded View & Parts List
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW & PARTS LIST EXPLODED PARTS VIEW 903005 REV012021... -
Page 10: Parts List
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com PARTS LIST Item Part Name Part Number Frame Ram Cap Ram Cap Shim (.015”) Ram Cap Shim (.008”) Hex Cap Screw (5/8”-11 x 2”) 43366 Table Plate Assembly 701227 Handwheel Headless Set Screw (3/8”-16 x 5/8”) 43589...
