DAKE 10- & 20-Ton Floor/Bench Utility Press
INSTRUCTIONAL MANUAL

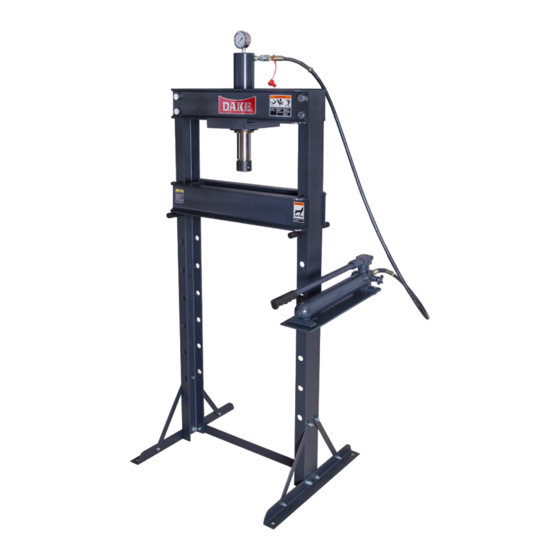

(This is a F-20 model so there may be slight differences)
WARNING! Read and understand all instructions and responsibilities before operating. Failure to
follow safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Fax: 800.846.3253
customerservice@dakecorp.com
Grand Haven, MI 49417
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Laguna Tools DAKE F-10
Summary of Contents for Laguna Tools DAKE F-10
- Page 1 DAKE 10- & 20-Ton Floor/Bench Utility Press INSTRUCTIONAL MANUAL (This is a F-20 model so there may be slight differences) WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Table of Contents DAKE Standard Limited Warranty ......................3 Return & Refund Policy ......................... 5 DAKE STANDARD TERMS & CONDITIONS OF SALE ............... 7 Specifications ............................8 Safety Warnings ............................ 9 Assembly Instructions: 10 Ton Bench Model .................. -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE Standard Limited Warranty Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com the RMA number must be clearly written on the exterior packaging. Any item shipped to Dake without an RMA will not be processed. Warranty Exceptions The following conditions are not applicable to the standard limited warranty: Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances, and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Return & Refund Policy Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. - Page 6 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFEGUARDING THE POINT OF OPERATION ANSI B11.2 – Hydraulic Power Presses Safety Requirements for Construction, Care and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safeguards.
-
Page 7: Dake Standard Terms & Conditions Of Sale
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD TERMS & CONDITIONS OF SALE All proposals and quotations for the original sale of our products are subject to the following terms and conditions: ACCEPTANCE OF ORDER: All orders are subject to acceptance by Dake at its main office in Grand Haven, Michigan. APPLICABLE LAWS: This quotation or acceptance shall be governed in all respects by the laws of the State of Michigan. -
Page 8: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com PURPOSE). UNDER NO CIRCUMSTANCES SHALL DAKE BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Specifications Machine Specifications: 10 Ton Bench 10 Ton Floor 20 Ton Floor Press Type Manual 10-ton Bench Manual 10-ton Floor Manual 20-ton floor Cylinder Type... -
Page 9: Safety Warnings
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Safety Warnings BEFORE USE, ALL SAFTEY INSTRUCTIONS MUST BE READ Before the PRESS is used, the instruction manual with this machine must be read and understood. This manual offers safe operation instructions. Offered below are safety instructions designed for the press and general safety instructions that apply to most machinery. - Page 10 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Label Part # 300168 Label Part # 84399 Label Part # 84487 Follow recommended precautions and safe operating practices. Carefully read all safety This machine is intended to Under no circumstances messages in these be operated by one person.
-
Page 11: Assembly Instructions: 10 Ton Bench Model
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Assembly Instructions: 10 Ton Bench Model Step 1 (Bench Model Only): Using (2) M8 x 20mm bolts, nuts and washers install the union support to the bottom from of the upright channels. - Page 12 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Step 5: Locate the cylinder and remove the plastic protective cap on the end of the ram. (If applicable) Carefully screw the cylinder from the top into the head traverse ram plate. Screw this in as tight as possible while keeping the cylinder’s hydraulic hose fitting facing to the right or pump side.
-
Page 13: Assembly Instructions: 10 / 20 Ton Floor Model
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Assembly Instructions: 10 / 20 Ton Floor Model Step 1: Install the union support to the inside of the upright channels and base angles, using the 4 of the M8 x 25mm bolts, nuts and washers provided. Step 2: Place union support in-between the channels and install the 2 base angles to the frame through the union support and install nuts. - Page 14 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Step 5: Using two 10mm x 120 mm bolts, washers, and nuts, snug only enough to allow plate to travel. Step 6: Install the pumping device to the mounting plate using 2 M10 x 25mm bolts, nuts, and washers.
-
Page 15: Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Operation Procedure Always use the supplied nose pieces. The flat nose piece will be good for most pressing and flattening operations. The step style nose piece will work well for pressing bearing, bushing and parts that have a hole that the nose piece will fit into. -
Page 16: How To Add Fluid To Hydraulic Pump
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com How to Add Fluid to Hydraulic Pump: 1. Retract the ram that is connected to the pump. 2. Place the pump on a smooth, level surface so that that handle is in the up position. ����... -
Page 17: Gauge Conversions
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Gauge Conversions 10 Ton: 10 Ton 45MM Bore = 1.77 Inch Bore Tons PSI(lbs/in 1598 2397 3196 3996 7992 20 Ton 20 Ton 65MM Bore = 2.56 Inch Bore Tons (1-10) PSI (lbs/in Tons (11- 20) -
Page 18: Parts List
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Parts List 10 Ton Bench Press: #972200, 972210, 972220 REV012024... - Page 19 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 10 Ton Bench Press Parts List Ref # Part # Description Quantity 301139 Frame Upright Channel 301138 Head Frame Channel 301137 Head Ram Traverse Plate 301136 Bolt M12 x 110mm 301135 Lock washer 12mm 301134...
-
Page 20: Ton Floor Utility Press
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 10 Ton Floor Utility Press: #972200, 972210, 972220 REV012024... - Page 21 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 10 Ton Floor Press Parts List Ref # Part # Description Quantity 301154 Frame Upright Channel 301153 Head Frame Channel 301152 Head Ram Traverse Plate (Upper) 301151 Head Ram Traverse Plates (Lower) 301150 Bolt M10 x 120mm 301149...
-
Page 22: Ton Floor Utility Press
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 20 Ton Floor Utility Press: #972200, 972210, 972220 REV012024... - Page 23 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com 20 Ton Floor Press Parts List Ref # Dake Part # Description Quantity 303183 Frame Upright Channel 303184 Ram Cylinder 303208 Head Frame Channel 303204 Bolt M18 x 140mm 303203 Lock Washer 18mm 303205...
-
Page 24: Order Information
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Order Information Please contact factory for current prices Parts are available for direct purchase from Dake or through a distributor. When placing a parts order, you will need to provide the part number, name of part, and model number. All parts shipped F.O.B.
