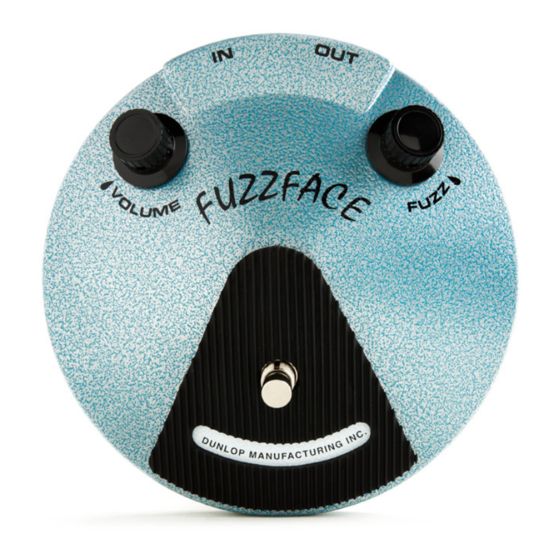

Summary of Contents for Dunlop JHF1 JIMI HENDRIX FUZZ FACE

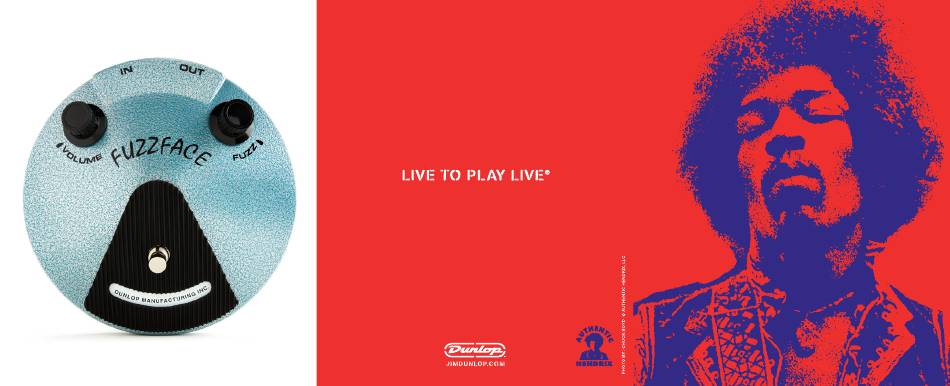

- Page 1 92503005962 REVB...
- Page 2 Max Gain 55 dB Bypass True Hardwire DIRECTIONS Current Draw 500 µA • Run a cable from your guitar to the Fuzz Face’s Input jack and another Power Supply 9 volts DC cable from the Fuzz Face’s Output jack to your amplifier. • Start with both controls at 12 o’clock. • Turn the effect on by depressing the footswitch. POWER The JHF1 Fuzz Face is powered • Rotate the VOLUME knob clockwise to increase overall effect volume by one 9 volt battery (remove or counterclockwise to decrease it. bottom plate to install). • Rotate the FUZZ knob clockwise to increase amount of fuzz or counterclockwise to decrease it. DUNLOP MANUFACTURING, INC. P.O. BOX 846 BENICIA, CA 94510 U.S.A. TEL: 1-707-745-2722 FAX: 1-707-745-2658...
