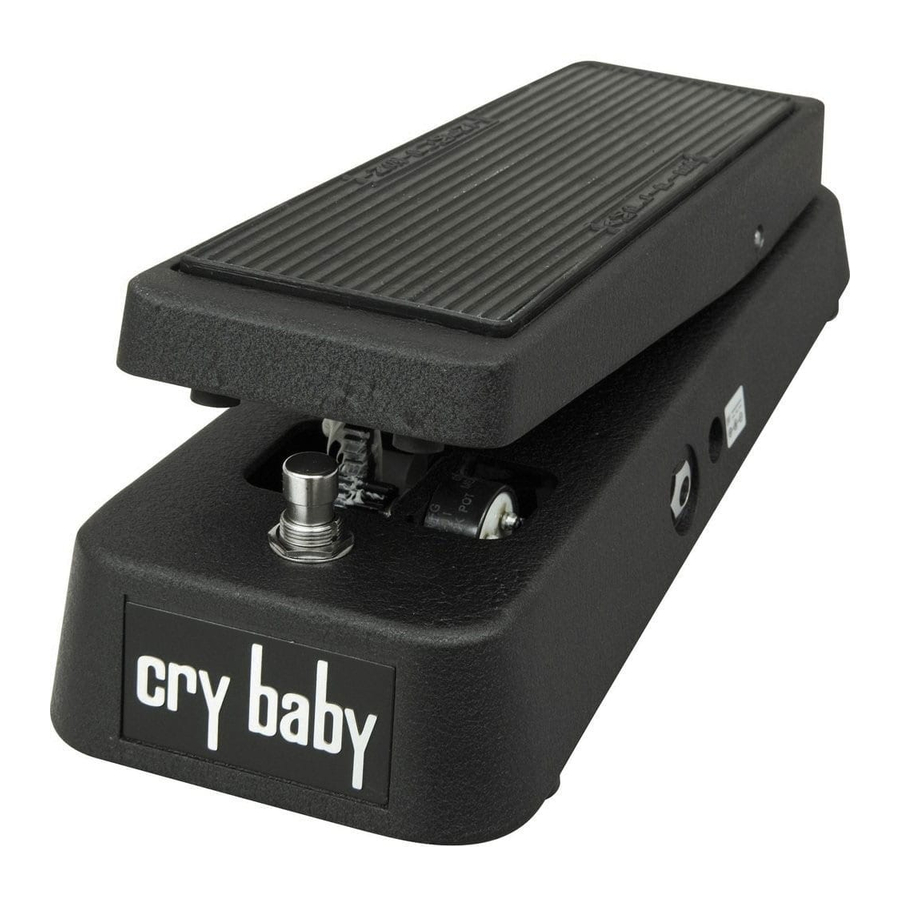

Dunlop GCB95 ORIGINAL CRY BABY - Effects Pedal Manual
POWER
The Original Cry Baby® can be powered by one 9 volt battery (accessed via the bottom of the pedal), a Dunlop ECB003 AC adapter (ECB003E in Europe) or a Dunlop DCB10 DC Brick power supply.
SETUP INSTRUCTIONS
- Run a shielded instrument cable from your guitar to the GCB95's Instrument jack.
- Run another shielded instrument cable from the GCB95's Amplifier jack into your amplifier input.
- Turn on the amplifier and begin playing.
- To turn the pedal on/off, push the toe of the pedal down until you feel a "click."
- By rocking your foot back and forth on the pedal, you can instantaneously change the effect that the Original Cry Baby has on the tone of your instrument.
SPECIFICATIONS
| Impedance | |
| Input | 800 kΩ |
| Output | 10 kΩ |
| Resonant Frequency | |
| Heel Down | 350 Hz - 450 Hz |
| Toe Down | 1.5 kHz - 2.5 kHz |
| Maximum Level | |
| Input | -8.0 dBV |
| Output | +10 dBV |
| Maximum Gain | |
| Heel Down | +19.5 dB |
| Toe Down | +19.0 dB |
| Signal to Noise Ratio* | |
| Heel Down | 98 dB |
| Toe Down | 89 dB |
| Current Draw | 900 µA |
*A-weighted, OdBV = 1VRMS
