Summary of Contents for Dunlop AUTHENTIC HENDRIX 69 PSYCH SERIES BAND OF GYPPSYS FUZZ
- Page 1 jimdunlop.com/jhw4...

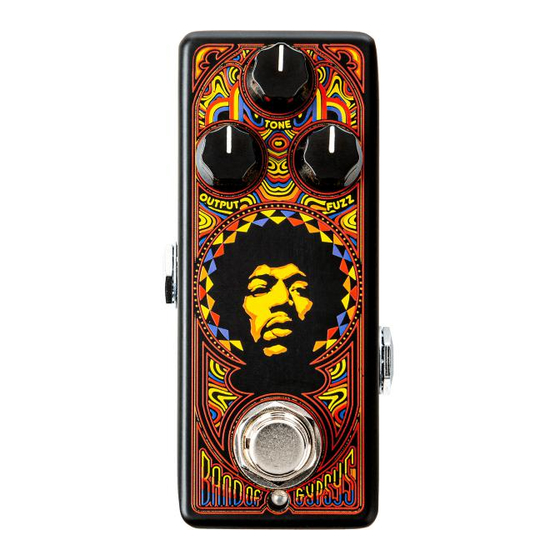

- Page 2 Get the unique and bitingly aggressive Band of Gypsys fuzz sound in an MXR ™ mini housing with a Tone control for sonic fine-tuning. This pedal comes emblazoned with the trippy, kaleidoscopic designs of award-winning UK-based design crüe ILOVEDUST. JHW4 | AUTHENTIC HENDRIX '69 PSYCH SERIES BAND OF GYPSYS FUZZ 2 ™...
-
Page 3: External Controls
External Controls 1 OUTPUT knob controls overall volume of effect 2 TONE knob shapes EQ of effect 3 FUZZ knob controls intensity of fuzz effect 4 FOOTSWITCH toggles effect on/bypass (blue LED indicates on) JHW4 | AUTHENTIC HENDRIX '69 PSYCH SERIES BAND OF GYPSYS FUZZ 3 ™... -
Page 4: Basic Operation
Basic Operation Power Authentic Hendrix ’69 Psych Series Band of Gypsys ™ ® Fuzz is powered by the Dunlop ECB003 9-volt adapter or the DC Brick , Iso-Brick , and Mini Iso-Brick power ™ ™ ™ supplies. This pedal cannot be powered by a battery. - Page 5 Input Impedance 30 kΩ Output Impedance Max Volume 33 kΩ Mid Volume 80 kΩ Noise Floor* -83 dBV Bypass True Hardwire Current Draw 4.3 mA Power Supply 9 volts DC JHW4 | AUTHENTIC HENDRIX '69 PSYCH SERIES BAND OF GYPSYS FUZZ 5 ™...
