- Page 1 AUTHENTIC HENDRIX ™ ’69 PSYCH SERIES OCTAVIO ® jimdunlop.com/jhw2...
- Page 2 This classic effect has been updated with a switch to toggle between the iconic octave-up sound that Jimi Hendrix made famous and super snarling silicon saturation. It all comes in an MXR mini housing emblazoned with the trippy, kaleidoscopic designs of award-winning UK-based design crüe ILOVEDUST.

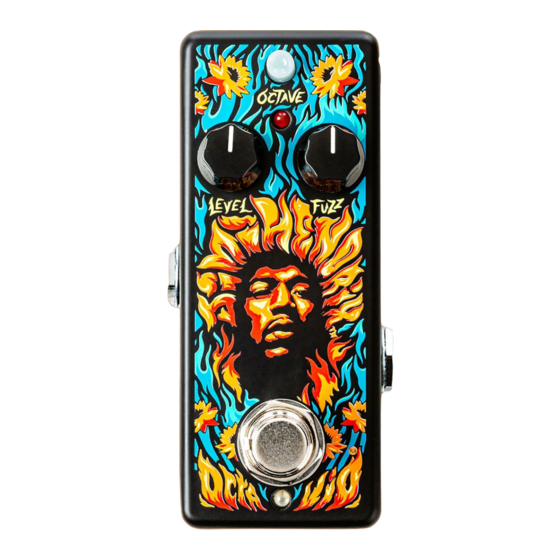

- Page 3 External Controls 1 LEVEL knob sets overall volume of effect 2 OCTAVE switch toggles octave-up fuzz on/off (indicated by red LED) 3 FUZZ knob sets intensity of fuzz effect 4 FOOTSWITCH toggles effect on/bypass (white LED indicates on) JHW2 | AUTHENTIC HENDRIX '69 PSYCH SERIES OCTAVIO FUZZ 3 ™...
- Page 4 Basic Operation Power Authentic Hendrix '69 Psych Series Octavio Fuzz is ™ ® powered by the Dunlop ECB003 9-volt adapter or the DC Brick , Iso-Brick , and Mini Iso-Brick power supplies. ™ ™ ™ This pedal cannot be powered by a battery.
- Page 5 Specifications OCTAVE OFF Input Impedance 10 kΩ Output Impedance Max Volume kΩ Mid Volume 50 kΩ Max Output -3 dBV Max Gain 43 dBV Bypass True Hardwire OCTAVE ON Input Impedance 10 kΩ Output Impedance Max Volume kΩ Mid Volume 30 kΩ...
