Authentic Hendrix
'68 Shrine Series
Octavio Fuzz

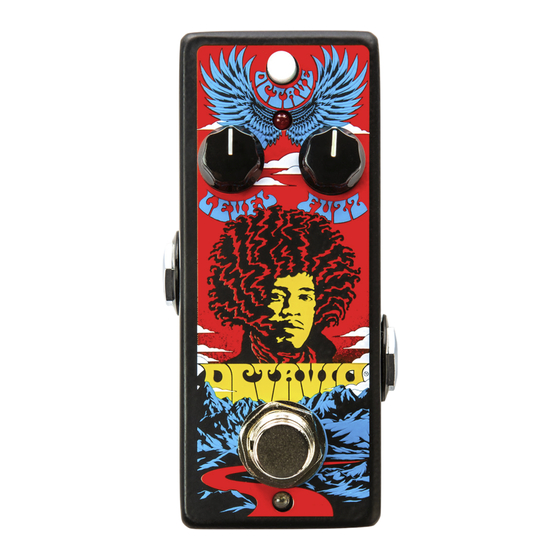

This special edition of the Octavio Fuzz pays
tribute to the legendary Jimi Hendrix with a custom
finish that remixes prolific and celebrated rock
artist John Van Hamserveld's famous 1968 Shrine
Auditorium concert poster art. Packed into an MXR
mini housing, this pedal updates the circuitry of the
original cheese wedge Octavio Fuzz for modern
players and pedalboards with an extra mode of
silicon saturation.
jimdunlop.com/jhms2
®
JHMS2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hendrix 68 Shrine Octavio Fuzz Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dunlop Hendrix 68 Shrine Octavio Fuzz Series

  • Page 1 JHMS2 Authentic Hendrix ™ ‘68 Shrine Series Octavio Fuzz ® This special edition of the Octavio Fuzz pays tribute to the legendary Jimi Hendrix with a custom finish that remixes prolific and celebrated rock artist John Van Hamserveld’s famous 1968 Shrine Auditorium concert poster art.
  • Page 2 External Controls 1 LEVEL knob sets overall volume of effect 2 OCTAVE switch toggles octave-up fuzz on/off (indicated by red LED) 3 FUZZ knob sets intensity of fuzz effect 4 FOOTSWITCH toggles effect on/bypass (white LED indicates on) JHMS2 | AUTHENTIC HENDRIX ’68 SHRINE SERIES OCTAVIO FUZZ 2 ™...
  • Page 3 Run a cable from your guitar to JHMS2’s INPUT jack and ™ ® another cable from JHMS2’s OUTPUT jack to your amplifier. is powered by the Dunlop ECB003 9-volt adapter or an MXR Brick Series power supply (each sold Start with LEVEL and FUZZ controls at 12 o’clock.
  • Page 4 Specifications OCTAVE OFF Input Impedance 10 kΩ Output Impedance Max Volume 400 kΩ Mid Volume 50 kΩ Max Output -3 dBV Max Gain 43 dBV Bypass True Hardwire OCTAVE ON Input Impedance 10 kΩ Output Impedance Max Volume 20 kΩ Mid Volume 30 kΩ...
