Summary of Contents for Dunlop univibe jhm3
- Page 1 DUNLOP MANUFACTURING INC. P.O. BOX 846 BENICIA, CA 94510 U.S.A. JIMDUNLOP.COM 92503013525revA...

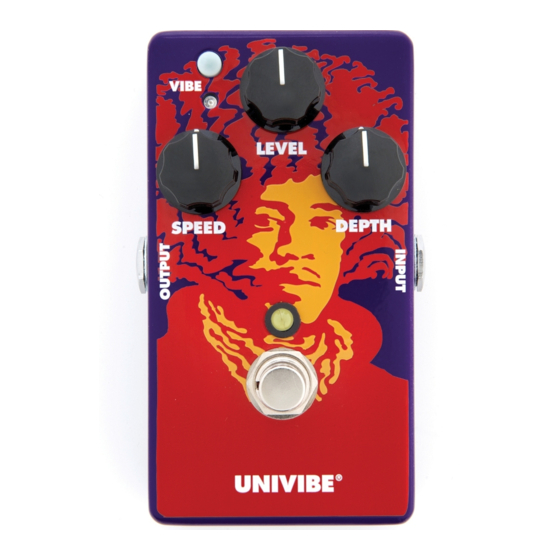

- Page 2 John Van Hamersveld Univibe’s Input jack and run another cable from the Univibe’s Output jack POWER SPEED DEPTH SPEED DEPTH to your amplifier. The JHM3 Jimi Hendrix 70th Anniversary SPECIFICATIONS • Start with LEVEL, SPEED, and DEPTH Tribute Series Univibe can be powered by Input Impedance 1 MΩ controls at 12 o’clock. one 9 volt battery (accessed via the bottom Output Impedance 5 kΩ of the pedal), a Dunlop ECB003 AC adapter • Turn the effect on by depressing Max Input 0 dBV (ECB003E in Europe) or a DC Brick series ™ the footswitch. Max Output 8 dBV power supply.. • Rotate LEVEL knob clockwise to increase Signal to Noise Ratio* 94 dB overall volume or counterclockwise to Speed Control 0.5 Hz to 10.5 Hz CONTROLS decrease it. Bypass True Hardwire • VIBE button toggles between default chorus...
