- Page 1 JC95B JERRY CANTRELL CRY BABY ®...

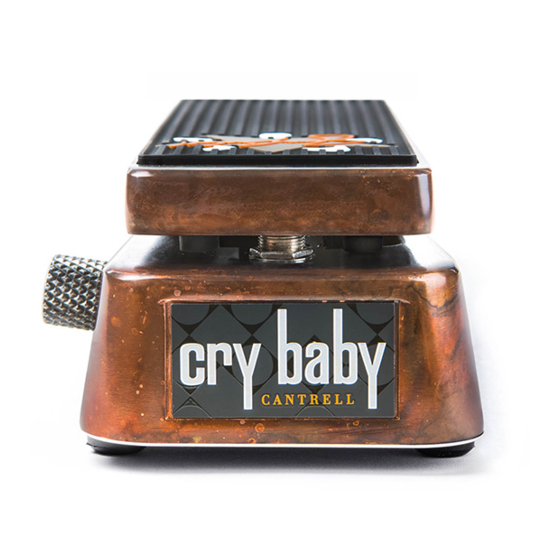

- Page 2 EXTERNAL CONTROLS FINE TUNE knob adjusts tone of toe-down rocker position JC95B JERRY CANTRELL CRY BABY ®...
- Page 3 BASIC OPERATION POWER The Jerry Cantrell Cry Baby® Wah is powered by one 9-volt battery (remove bottom plate to install), the Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies. OPERATION 1. Run an instrument cable from your guitar to the JC95B’s INSTRUMENT jack and another instrument cable from the JC95B’s...
- Page 4 MAXIMUM GAIN AT CENTER FREQUENCY Heel Down +18 dBV Toe Down +20 dBV NOISE FLOOR Heel Down >97 dB Toe Down >89 dB Bypass Hardwire Current Draw 1 mA Power Supply DC 9 volts * VREF=1VRMS, A-weighted JC95B JERRY CANTRELL CRY BABY ®...
