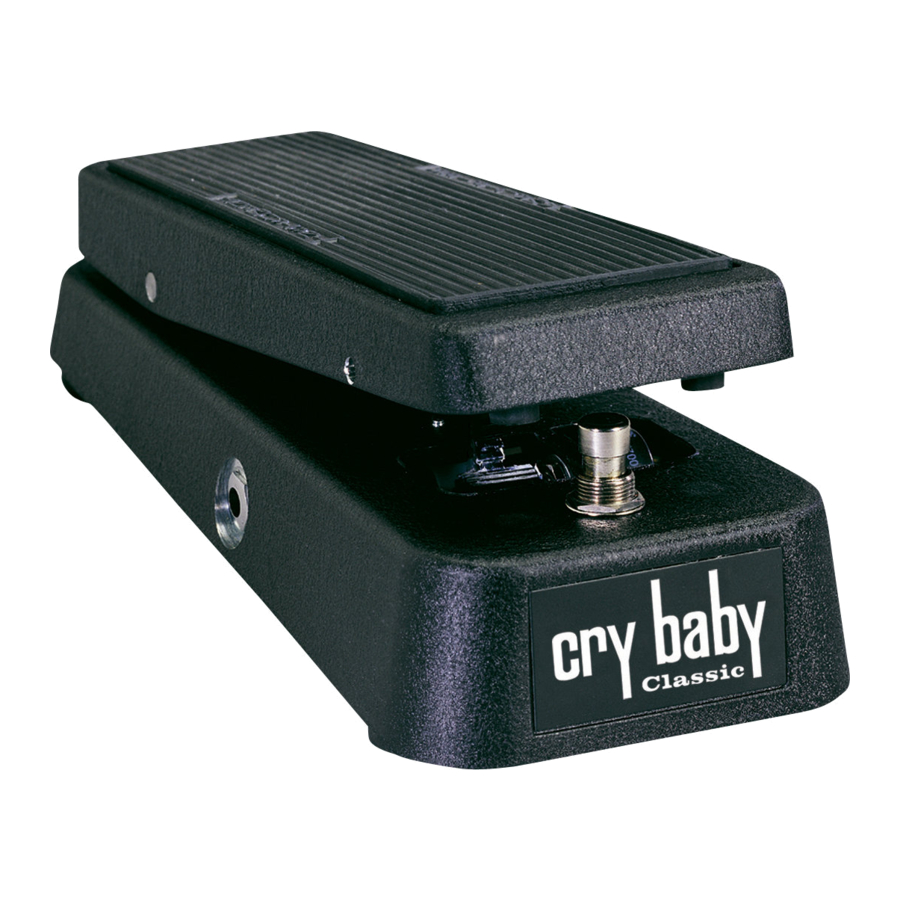

Dunlop Cry baby GCB95F - CLASSIC WAH WAH Series Music Pedal Manual
POWER
The Cry Baby® Classic Wah Wah is powered by one 9-volt battery (accessed via the bottom of the pedal), an AC adapter such as the Dunlop ECB003/ ECB003E, or a DC Brick™ power supply.
SETUP INSTRUCTIONS
- Run an instrument cable from your guitar to the GCB95F's INSTRUMENT jack and run another instrument cable from the GCB95F's AMPLIFIER jack to your amp.
- To turn the pedal on/off, push the toe of the pedal down until you feel a "click."
- By rocking your foot back and forth on the pedal, you can change the effect that the Classic Cry Baby Wah Wah has on the tone of your instrument instantaneously.
SPECIFICATIONS
| Impedance | |
| Input | 1 MΩ |
| Output | 1 kΩ |
| Noise Floor* | -102 dBV |
| Bypass | Hardwire |
| Current Draw | 2.5 mA |
| Power Supply | 9 volts DC |
*A-weighted
