Summary of Contents for Dunlop Fuzz Face JHM1
- Page 1 DUNLOP MANUFACTURING INC. P.O. BOX 846 BENICIA, CA 94510 U.S.A. JIMDUNLOP.COM 92503013523revA...

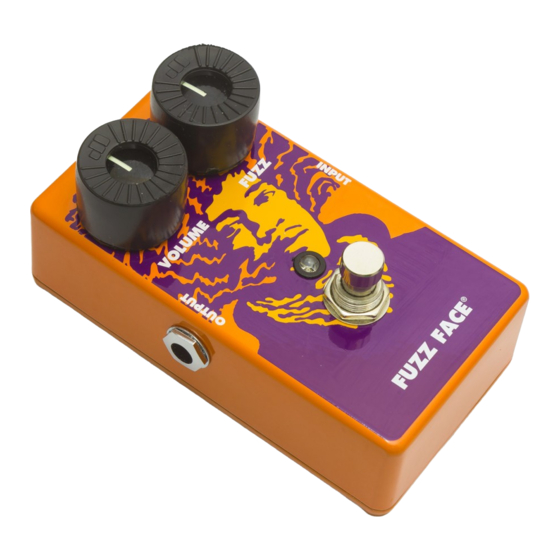

- Page 2 Bypass True Hardwire Van Hamersveld • Turn the effect on by depressing Current Draw 3.4mA the footswitch. POWER Power Requirement 9 volts DC The JHM1 Jimi Hendrix 70th Anniversary • Rotate VOLUME knob clockwise Tribute Series Fuzz Face can be powered to increase overall volume or by one 9 volt battery (accessed via the counterclockwise to decrease it. bottom of the pedal), a Dunlop ECB003 • Rotate FUZZ knob clockwise to increase AC adapter (ECB003E in Europe) or a the amount of fuzz or counterclockwise DC Brick ™ series power supply.. to decrease it. CONTROLS SAMPLE SETTINGS • VOLUME knob controls overall volume VOODOO CHILD SPANISH CASTLE of effect (SLIGHT RETURN) MAGIC • FUZZ knob controls amount of fuzz • FOOTSWITCH toggles effect on/bypass...
