Operation

Product Overview

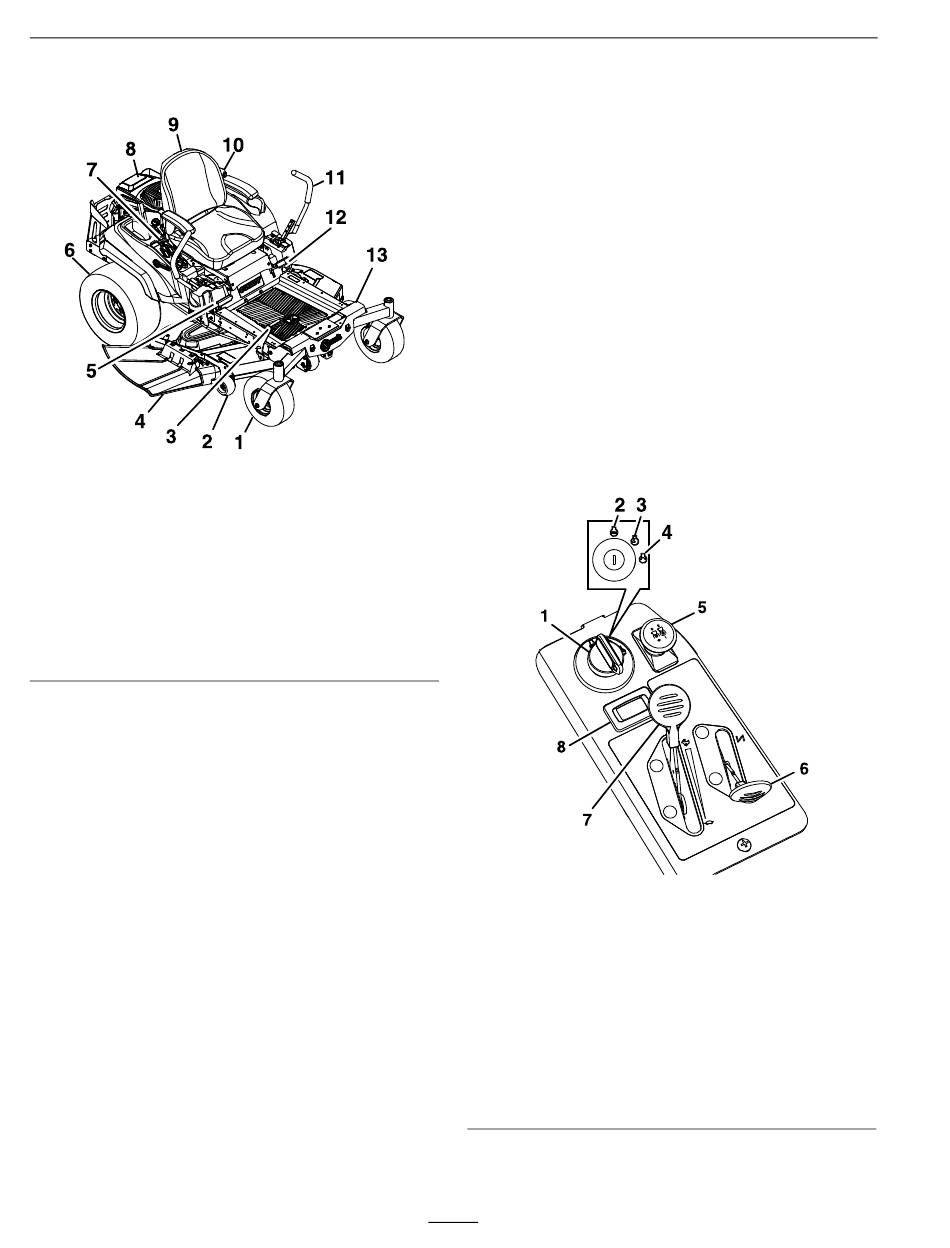

Figure 4
1. Front caster wheel
2. Anti-scalp roller
3. Height-of-cut foot lever
4. Discharge deflector
5. Deck height adjustment
lever
6. Rear drive wheel
7. Control panel
g236602
8. Engine
9. Seat
10. Fuel tank
11. Motion control levers
12. Parking brake lever
13. Footrest
Operation

Controls

Note: Become familiar with all of the
Figure 4 controls in and Figure 5 before you start the
engine and operate the machine.
Ignition Switch
Located on control panel.
The ignition switch is used to start and stop the
engine. The switch has three positions "OFF",
"RUN" and "START" (Figure 5). Insert key into
switch and rotate clockwise to the "ON" position.
Rotate clockwise to the next position to engage the
starter (key must be held against spring pressure in
this position).
S-Series Model Shown
1. Ignition switch
2. Off
3. Run
4. Start
5. Blade control switch (power take-off)
6. Choke control
7. Throttle lever
8. Hour meter
18
Figure 5
g236698
