3 EFA Hardware Instructions

Note: The EFA will only respond to ping messages when it is in configuration mode.

This section only describes the hardware aspects of the Mark VIe UCSC that explicitly pertain to the Field Agent functionality. For

general information about the UCSC hardware, please see GEH-6721_Vol_II Mark VIe and Mark VIeS Control Systems, Volume II:

General-purpose Applications.

For public disclosure

3.1.1

UCSC EFA – Network Configuration

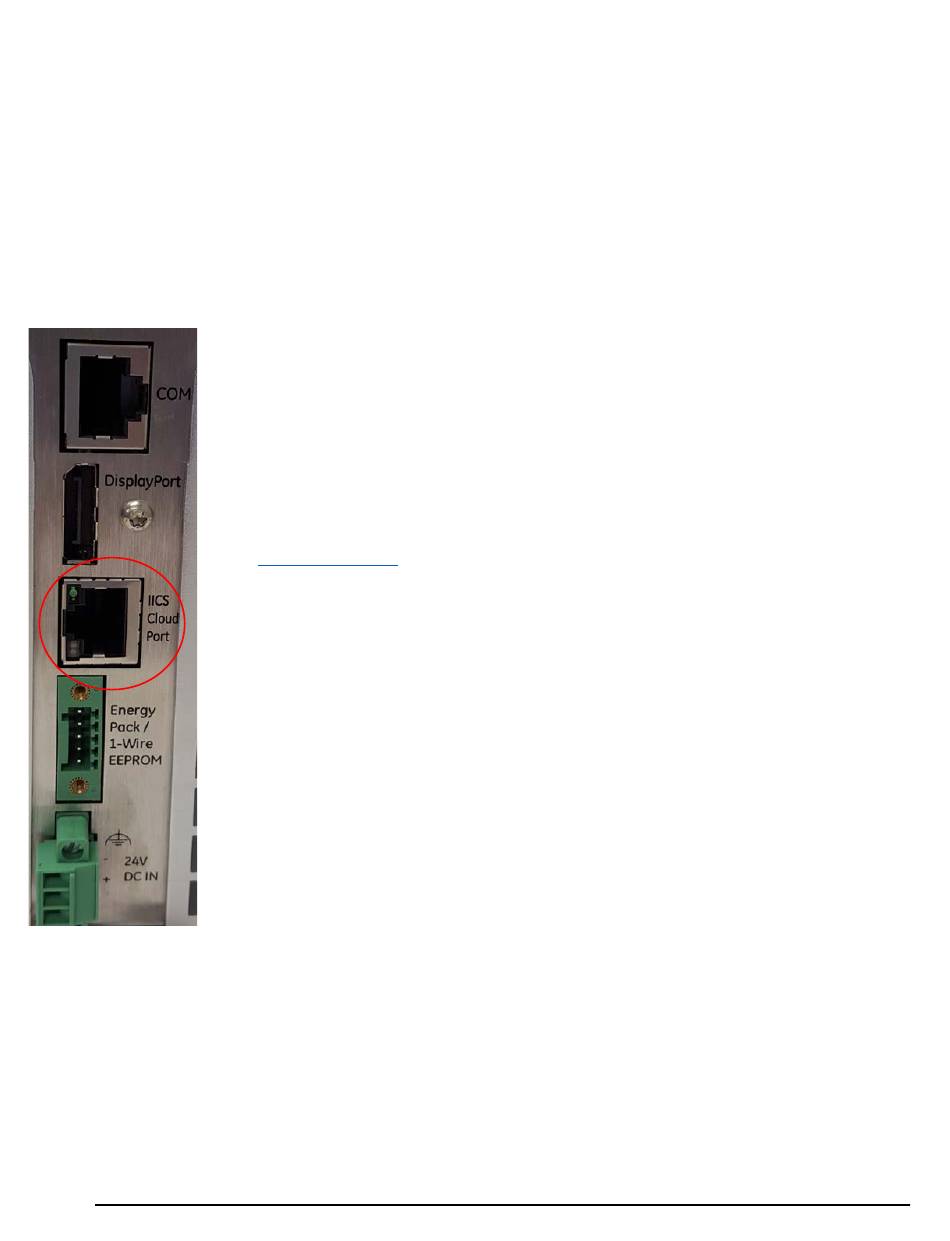

The UCSC EFA uses the IICS Cloud Port (found on the bottom of the UCSC) to both communicate to

controllers to gather data, as well as to connect to the Predix Cloud. The default IP Address assigned to

this is 172.31.0.100, subnet mask 255.255.0.0. For more information on changing the IP Address, please

see the

Configure the Network

section of this document.

GFK-2993F 32
