MFA Interface Details
Note Refer to Mini Field Agent (MFA) Important Product Information (GFK-2997) for version-specific interface details.

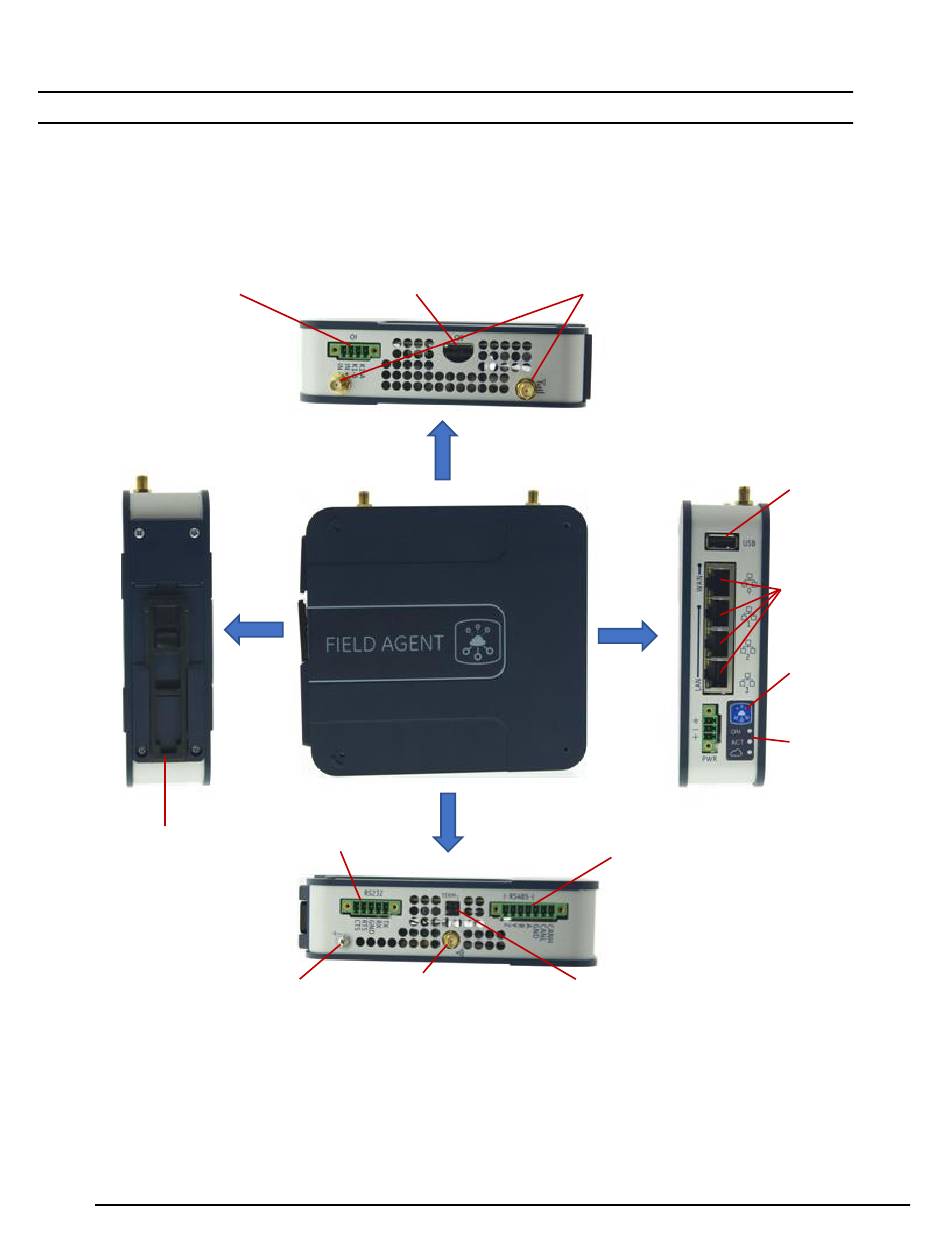

The following figure displays all four sides of the MFA module with details for connections.
Local Field I/O
DIN Rail
Mounting Clip
For public disclosure
MicroSD slot
(for GE internal use only)
Rear View
RS-232
Ground
Wi-Fi Antenna
Connection
Connection
(on applicable models)
Cellular Antenna
Connections
(on applicable models)
Top View
Front View
Bottom View
RS-485
Termination Jumper for CAN
(rightmost 2 contacts)
USB
Interface
Ethernet
Interfaces
Push
Button
Status
LEDs
GFK-2993F 20
