Vanity h1 - 7-1/2" high, d18 & d21 depth

FRAME INSTALLATION

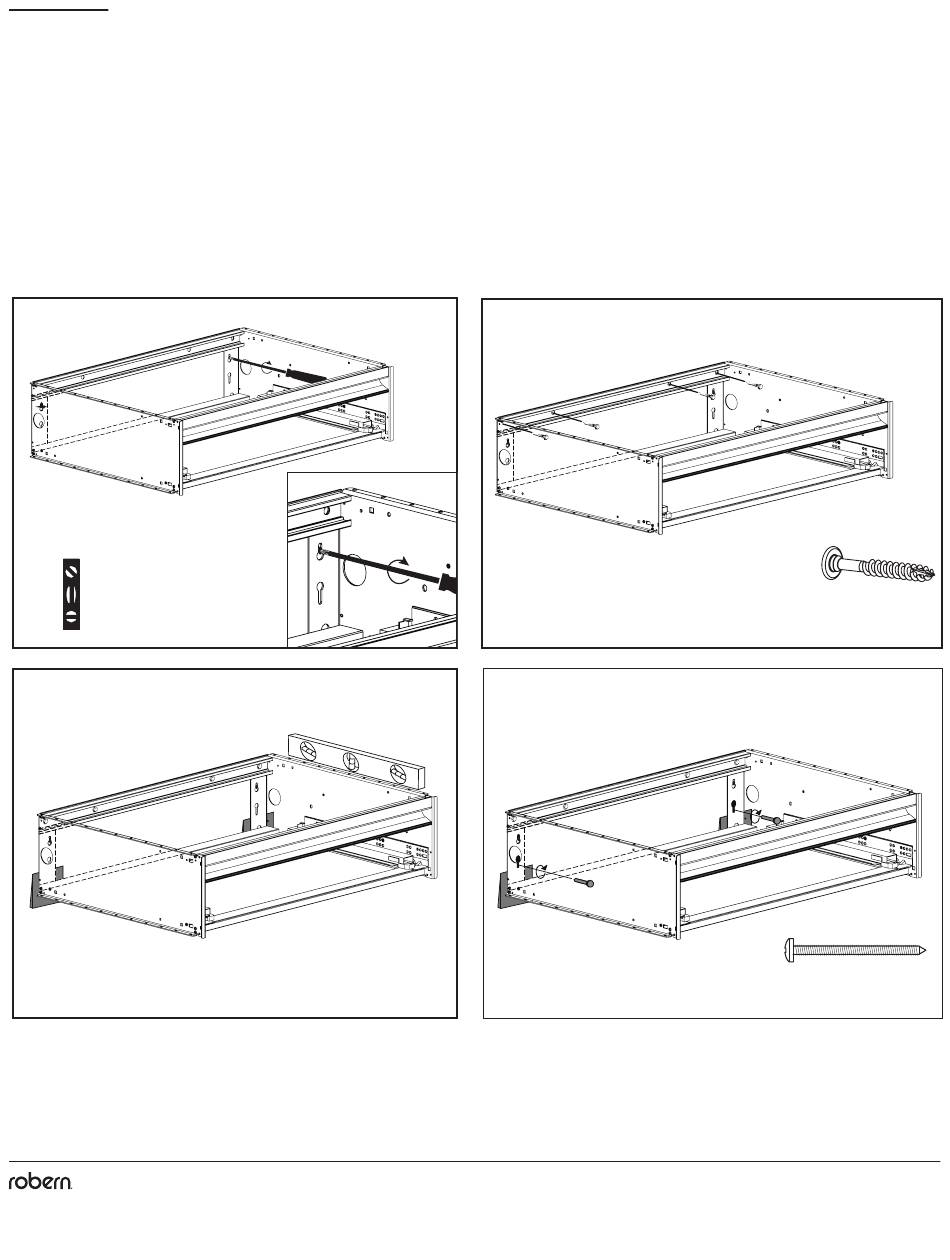

4. Level the frame and tighten to the wall as shown on page 8 and here in Fig. 4. The left keyhole is elongated to allow for up and down

adjustment.

5. Install the four Structural Screws (203-1256) into the four top frame holes (Fig. 5). A T-30 Torx Bit is provided. If the wall is bowed,

shim where required.

6. If required, shim the bottom at the frame/side intersection (Fig. 6).

7. Install two #10 x 2" (SS674) through the narrow slot of the keyhole on the flange (Fig. 7).

800.877.2376

www.robern.com

Installation instructions

4-Structural Bolt

4-Perno estructural

SS674

#10 - 2"

Part no. 209-1231-D-Cartesian, Profiles H1 rev. 05/16/18

Cartesian™ Vanity, and Profiles™ Vanity

[203-1256]

5/16" x 2 1/2"

4-Boulon
