ELECTRIC OPTION ROUGH-IN

The night light option is ordered with the vanity and requires electrical outlets.
The night light has no switch. It is recommended that you switch the outlet to operate the night light. Locate the switch near the doorway
to the bathroom.
All applicable electrical codes in your area must be followed.
Outlet can be installed to the left or right of center.
© 2018 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions

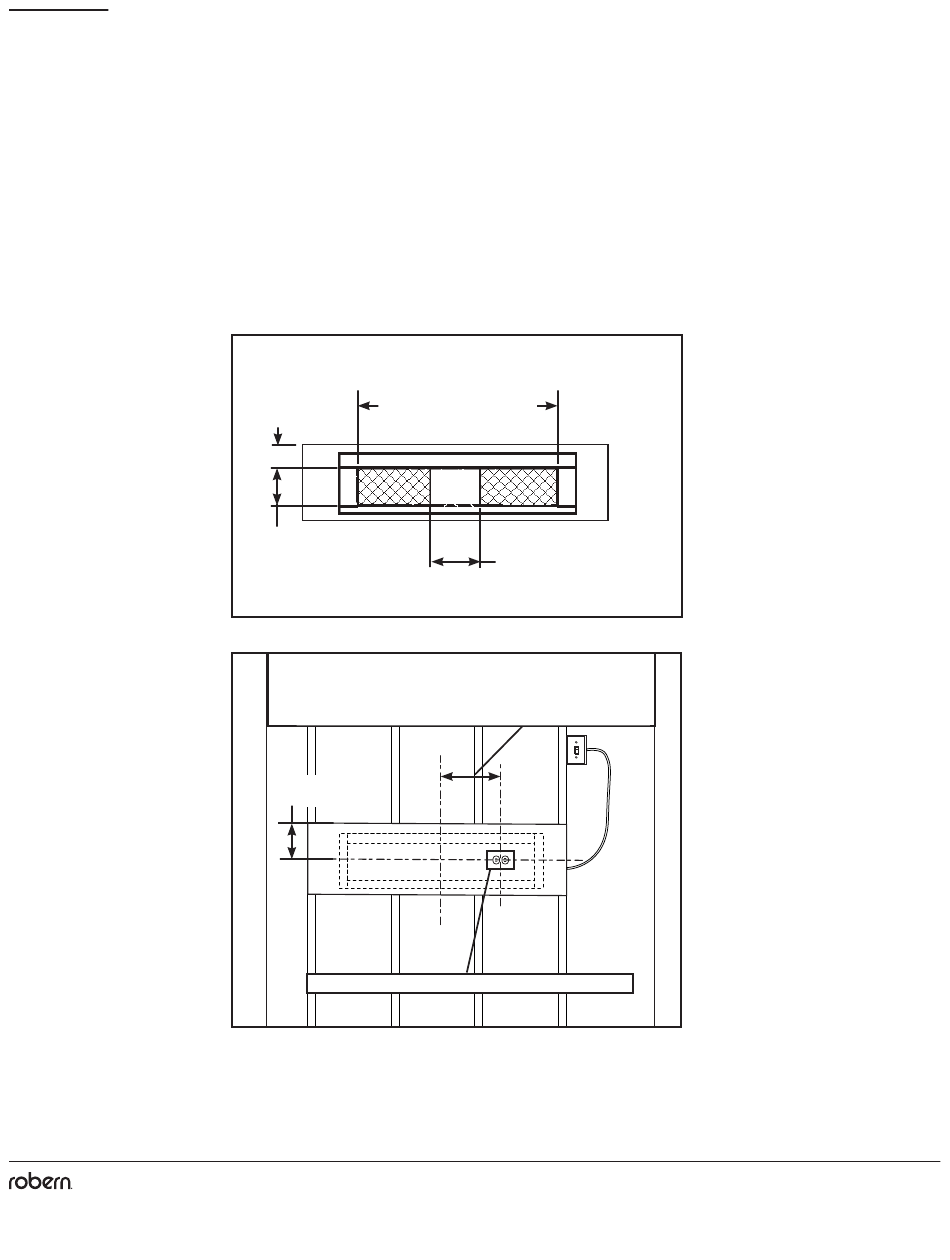

24"=18-1/2"
3-3/4"
30"=24-1/2"
(95 mm)
36"=30-1/2"
5"
(127 mm)
Drain Area
12" = 12" = center line
24" = 4" (102 mm)
30" = 7" (179 mm)
36" = 10" (254 mm)
6"
(152 mm)
Single gang box must be installed horizontally
(470 mm)
(622 mm)
(775 mm)
6-1/8"(156 mm)
C L
7
Part no. 209-1231-D-Cartesian, Profiles H1 rev. 05/16/18
Cartesian™ Vanity, and Profiles™ Vanity
