BLOCKING DIMENSIONS

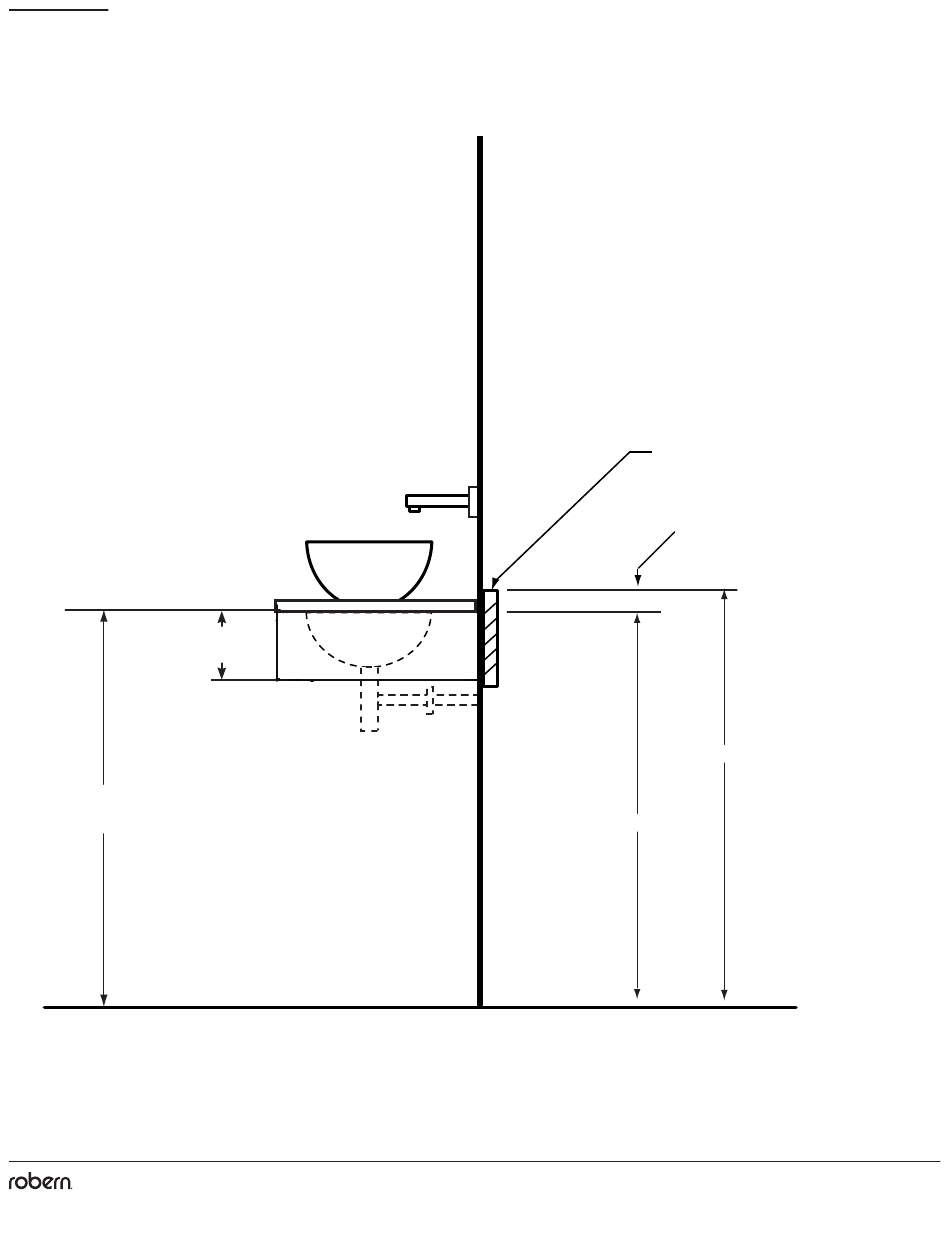

Side view showing blocking location in wall
**Plumbing installations are not typical
with full drawers or 12 inch vanities
2" x 10" Backing material location
2"
(51 mm)
7-1/2"
(191 mm)
Backing material height
34-1/2" Recommended height
for undercounter sink
Frame height
Part no. 209-1231-D-Cartesian, Profiles H1 rev. 05/16/18
Cartesian™ Vanity, and Profiles™ Vanity
