ALCOVE AND CORNER INSTALLATIONS

See Alcove kit instructions for greater clarity.
Note: The Alcove Kit you order depends on the overall height of your vanity or vanity stack combination. For example, if you stack two
H1 vanities (7-1/2" + 7-1/2" = 15") you would use the VMAKITH2. One Alcove kit is required per side.
Alcove Installations - For standard top sizes (Nominal + 1") Two Alcove Kits, VMAKIT are used in place of side kits when installing
the vanity into an alcove. Each Alcove kit adds 3/8" to the overall nominal width of the vanity. The wall opening should be 1" gap larger

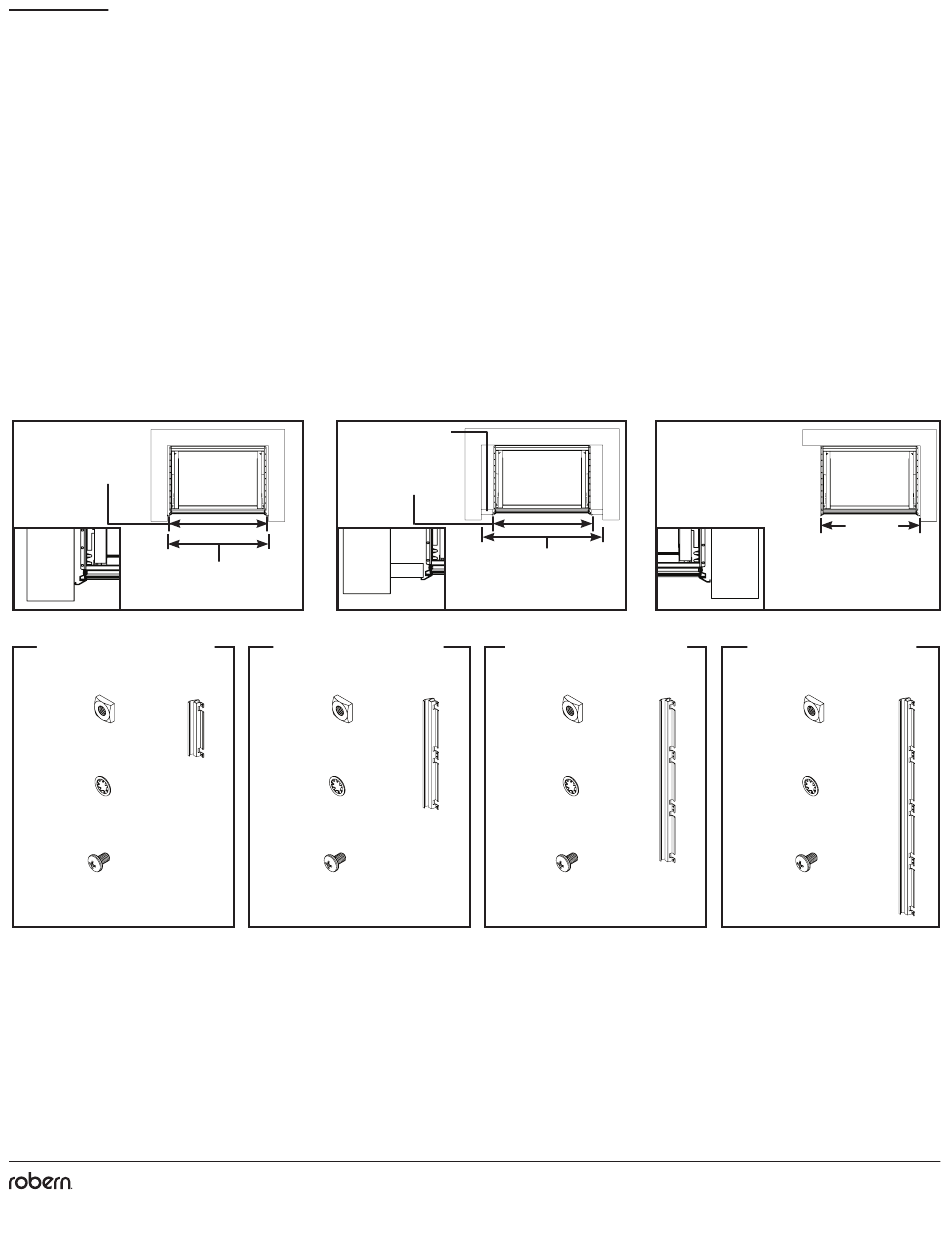

to allow 1/8" gap on either side of the Alcove kit. Fig. 1 shows the dimension for a VM30 as an example.
Alcove Installations –Requiring extra fillers Two Alcove Kits, VMAKIT are used in place of side kits when installing the vanity into an
alcove. Each Alcove kit adds 3/8" to the overall nominal width of the vanity. Field installed extra filler to match the wall (Fig. 2).
Corner Installation - One Alcove Kit, VMAKIT is used with a single side kit when installing the vanity into a corner. Each Alcove kit
adds 3/8" to the overall nominal width of the vanity. Fig. 3 shows the dimension for a VM30 with one Alcove kit as an example.
1
30 3/4"
(781 mm)
31"
Wall opening
[VMAKITH1]
7-1/2" Alcove finishing kit
[SS267]
(4) 10-32 Nut
[203-1390]
(4) #10 Washer
[SS268]
(4) 10-32 Screw
© 2018 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
2
Wall
VM30
example
[VMAKITH2]
15" Alcove finishing kit
[SS267]
(4) 10-32 Nut
[203-1390]
(4) #10 Washer
[SS268]
(4) 10-32 Screw
Filler Board
Wall
30 3/4" VM30
example
(781 mm)
Custom Alcove Width
[VMAKITH3]
22-1/2"Alcove finishing kit
[SS267]
(8) 10-32 Nut
(8) écrou / (8) tuerca
[203-1390]
(8) #10 Washer
(8) rondelle / (8) arandela
[SS268]
(8) 10-32 Screw
12
3
[VMAKITH4]
30" Alcove finishing kit
[SS267]
(8) 10-32 Nut
[203-1390]
(8) #10 Washer
[SS268]
(8) 10-32 Screw
Part no. 209-1231-D-Cartesian, Profiles H1 rev. 05/16/18
Cartesian™ Vanity, and Profiles™ Vanity
Wall
VM30
example
30 3/8"
(772 mm)
