OPTIONAL GANGING KIT

If you are not Stacking and/or Ganging Cartesian or Profiles, you may skip this step and continue to assembling the glass
drawer front on page 15.
If you purchased the optional side kits, continue to page 13. For the optional Alcove Kit continue to page 12.
Assemble frames on a clean level surface BEFORE installing on the wall.

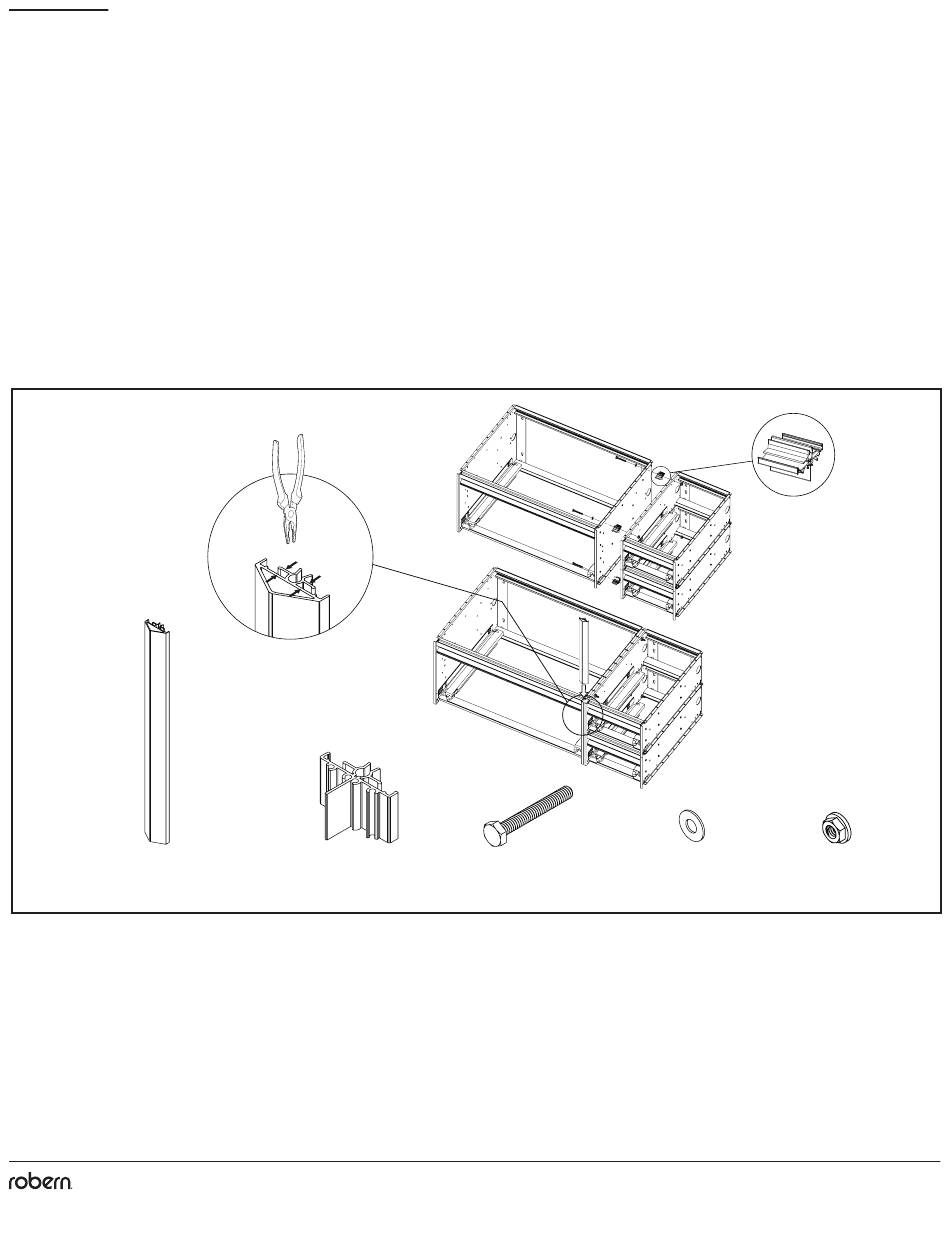

1. Install 4 bolts (203-1302) and 4 washers (203-1301) into the square holes near the top and bottom edge of the side pan.
2. Place the 4 spacers (R290) over the bolts and bring the adjoining pan in location to slide the bolts into the corresponding holes.
3. Using the 4 nuts (203-1261) tighten the assembly until firmly secure.
4. Slide the Filler/Bumper down over the flanges. If loose, pinch using needle nose pliers as shown below.
(1) 15" FILLER/BUMPER
© 2018 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
[R290-1-462R] [203-1302]
(4) SPACERS (4) 1/4-20 x 1 7/8" BOLT
11
[203-1301] [203-1261]
(4) 1/4" WASHER (4) 1/4-20 NUT
Part no. 209-1231-D-Cartesian, Profiles H1 rev. 05/16/18
Cartesian™ Vanity, and Profiles™ Vanity
