Techkon SpectroDrive Manual page 23

Measuring a Print job

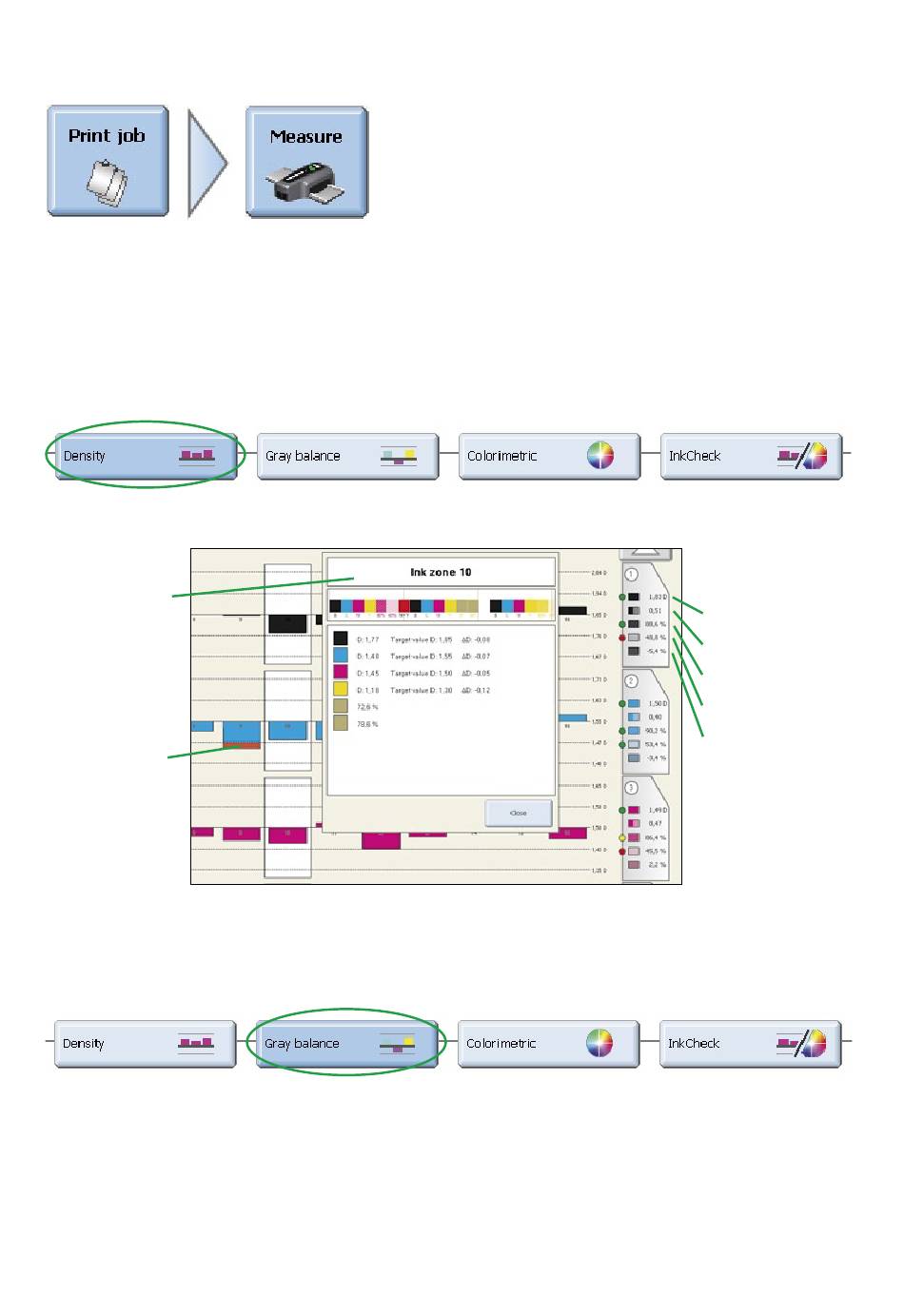

This screen will display all relevant information after a scan measurement.The scan
measurement can be started by pressing the green measurement button on the
device or on the screen.
Measure - Density
Detailed info
for every ink
zone by pointing
on bar graph.
Measurement
values out of
tolerance will
be marked with
red top.
Measure - Gray balance (ExPresso Pro)
The color bars TECHKON TCS Digital include a gray balance patch compliant with
ISO 12647 in every ink zone.The Gray balance display will show densitometric Gray
balance values for CMY in a bar graph. At a glance there can be diagnosed if the
overprint of CMY is a neutral gray or if it has a color cast.
Page 23
Manual TECHKON SpectroDrive Chapter 3 - How to use SpectroDrive
Info for all
ink zones:
• Solid density
• Printing contrast
• Dot area 80 %
• Dot area 40 %
• Slur/doubling
