Techkon SpectroDrive Manual page 18

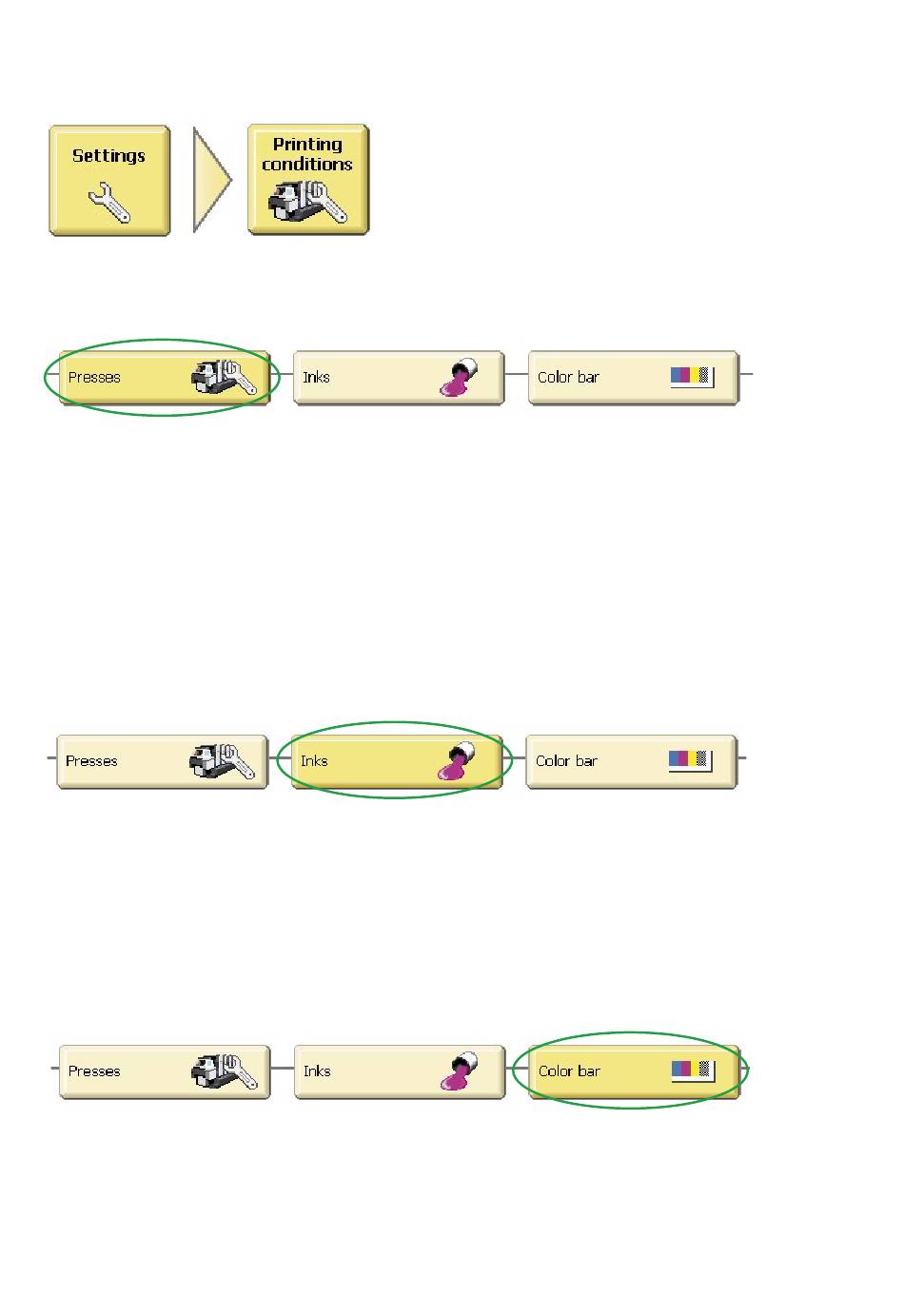

The following settings can be made:
Printing conditions - Presses
• Name:
• Manufacturer:
• Type:
• Number of printing units: 1-6 for ExPresso Basic, 1-16 for ExPresso Pro
• Ink zone width
• Reversing unit
Printing conditions - Inks
The list of inks included in the database is displayed. As the buttons in the lower right
corner indicate, new colors can be defined or imported and colors can be duplicated
and deleted.
Printing conditions - Color bar
The list of color bars included in the database is displayed. As a standard the
TECHKON TCS print control strips are recommended. Other color bars can be used
by using the Import-button.
Manual TECHKON SpectroDrive Chapter 3 - How to use SpectroDrive
textbox to define a name of the printing press
textbox (not mandatory)
textbox (not mandatory)
in mm
if the printing press has a reversing unit, the
location can be set
Page 18
