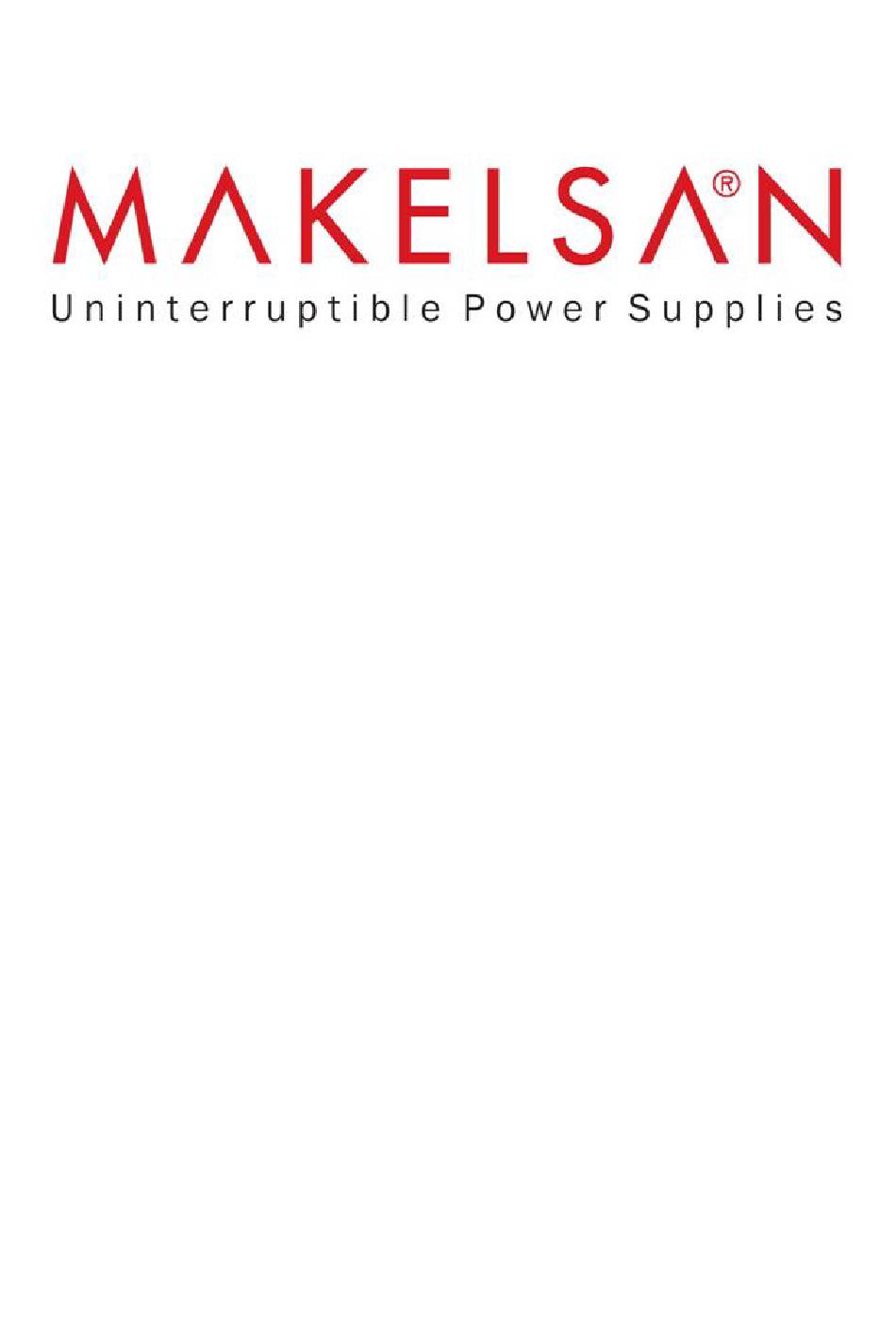

  • Page 1 USER MANUAL Lion Series 650 - 2000 VA Line Interactive UPS...
  • Page 3 LION SERIES 650-2000VA USER MANUAL Lion Series 650 - 2000 VA Line Interactive UPS UDD-SD-110/Yayın Tarihi: 23.12.2014/Rev No: 0/Rev. Tarihi:...
  • Page 5 This manual is prepared for the users of Lion Series 650-2000 VA. Companion Manuals For further information about this device and its options, please visit www.makelsan.com.tr Updates Please visit www.makelsan.com.tr for updates. Always use the latest manuals. UDD-SD-110/Yayın Tarihi: 23.12.2014/Rev No: 0/Rev. Tarihi:...

  • Page 6: Table Of Contents

    LION SERIES 650-2000VA CONTENTS CONTENTS 1 Package Contents ................................3 2 Product Overview ................................3 3 Installation & Initial Startup ............................6 4 Important Safety Warning ............................8 5 Software Installation & Monitoring ........................9 6 Maintenance .................................. 10 7 Trouble Shooting ................................. 10 8 Specifications ................................

  • Page 7: Package Contents

    LION SERIES 650-2000VA 1 Package Contents You should have received following items inside of package: -UPS unit -user manual -2 fuse tubes -communication cable (only for the model with USB/RS232 port) 2 Product Overview Front View: LED type: LCD type:...
  • Page 8 LION SERIES 650-2000VA Tower type back view: Rack Mount Type Back View:...
  • Page 9 LION SERIES 650-2000VA...

  • Page 10: Installation & Initial Startup

    LION SERIES 650-2000VA 3 Installation & Initial Startup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Placement & Storage Conditions Install the UPS in a protected area that is free of excessive dust and has adequate air flow. Please place the UPS away from other units at least 20 cm to avoid interference.
  • Page 11 LION SERIES 650-2000VA Alarm Function When AC fails, and the battery supplies power, UPS will alarm once every 6 seconds and the beep stops about 40 seconds later. When battery is nearly used up, the UPS will alarm automatically and the beep frequency is once 2 seconds.

  • Page 12: Important Safety Warning

    LION SERIES 650-2000VA 4 Important Safety Warning (Save these instructions) CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.) CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS’...

  • Page 13: Software Installation & Monitoring

    LION SERIES 650-2000VA CAUTION! When replacing the batteries, use the same number and type of batteries. CAUTION! Internal battery voltage is 12V dc. Sealed, Lead-acid, 6-cell battery. CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or mutilate the battery or batteries.

  • Page 14: Maintenance

    LION SERIES 650-2000VA 6 Maintenance Preventative Maintenance Preventative Maintenance ensures the longer service life of UPS. Please check the following things every month: 1. make sure the airway not blocked; 2. make sure that the UPS surface is not covered by dust; 3.

  • Page 15: Specifications

    LION SERIES 650-2000VA 8 Specifications CAPACITY 650VA 850VA 1000VA 1500VA 2000VA INPUT Voltage 110V/120V/ or 220V/230V/240V Voltage Range ±25%(-35% optional) Frequency Range 50/60Hz±10% OUTPUT Power Factor Voltage Regulation ±1% Transfer Time ≤10ms Waveform Simulated sine way BATTERY DC Voltage Configuration 1x 12V/7.0Ah 1x 12V/9.0Ah 2x 12V/7.0Ah...

  • Page 16: Guarantee

    ➢ After the damage determination record has been issued, we request you to inform the MAKELSAN head office of the case. Products to be received from freight by signature means that products have been received completely and without no damage.

  • Page 17: Cases Not Covered By The Guarantee

    MAKELSAN according to the direction to be made by the MAKELSAN head office. For malfunctions in the scope of guarantee, shipment fees are under the responsibility of MAKELSAN on the condition that products are delivered to the contracted freight company.
  • Page 18 25 ° ➢ It is compulsory that systems to be purchased be commissioned within 3 months. CERTIFICATE OF GUARANTEE Certificate Approval Date : --/--/---- MANUFACTURER COMPANY Certificate No TITLE MAKELSAN MAKİNE KİMYA ELEKTRİK SAN. TİC. A.Ş.
  • Page 19 NOTICE 8 – Under no circumstances shall the customer treat the product with the aim of repair, apart from MAKELSAN authorized service personnel. 9 – Damages and results originating from the violation of the 8 Article shall be invoiced to the customer.

  • Page 20: Contact Information

    LION SERIES 650-2000VA CONTACT INFORMATION 10 CONTACT INFORMATION www.makelsan.com.tr Headquarter: İstanbul Deri Organize Sanayi Bölgesi 2. Yol I -5 Parsel 34956 Tuzla/ İstanbul : 0216 428 65 80 : 0216 327 51 64 E-mail makelsan@makelsan.com.tr İzmir Office : Halkapınar Mah. 1348 Sok. 2AE Keremoğlu İş Merkezi Yenişehir – İzmir...
