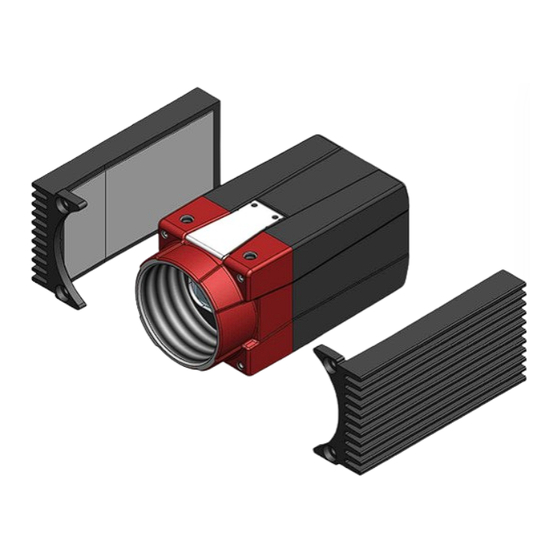

- Page 1 AMERAS Alvium G5/G5X Heat Sink Kit User Guide V1.2.1 Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany 2024-May-16...
-
Page 2: Read Before Use
The falling product can cause injury. Intended use Intended use of Allied Vision product is the integration into vision systems by professionals. All Allied Vision product is sold in a B2B setting. Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... - Page 3 FORSIGTIG Kvæstelser, hvis produkt falder ned Falder produkt ned, kan dette forårsage kvæstelser. Tilsigtet brug Allied Vision produktets tilsigtede brug er en indbygning i et visionssystem, udført af fagfolk. Alle Allied Vision produkter sælges i B2B. DE - Deutsch Sicherheit Bevor Sie das Produkt benutzen, lesen Sie diese Sicherheitshinweise.
- Page 4 Si el producto se cae puede provocar lesiones. Uso previsto El uso previsto del producto Allied Vision es la integración en el sistema de visión por parte de profesionales. Todos los productos Allied Vision se venden dentro de una relación B2B.
- Page 5 La chute de la produit peut entraîner des blessures. Utilisation prévue L’utilisation prévue du produit Allied Vision est son intégration dans des systèmes de vision par le soin de professionnels. Tout produit Allied Vision est vendu dans un cadre B2B. ת...
- Page 6 Lesioni dovute alla caduta del prodotto Il prodotto può causare delle lesioni. Uso previsto Il prodotto Allied Vision è concepito per essere integrato in sistemi di monitoraggio in campo professionale. Tutti i prodotti Allied Vision sono venduti in uno scenario B2B.
- Page 7 Read before use JA - 日本語 安全性 本製品を使用する前に、この安全ガイドをお読みください。警告を必ず 守ってください。必ず21ページのIntended use 17 ページに従って使用し てください。 注意 やけどの危険性 作動中のカメラは、やけどを引き起こす温度まで熱くなる恐れがありま す。 注意 製品の落下によるケガ 本製品が落下すると、けがをするおそれがあります。 用途 Allied Vision製品は、専門家が視覚装置に統合することを意図したもの です。すべてのAllied Vision製品は、企業間取り引き用に販売されてい ます。 Alvium G5/G5X Heat Sink Kit User Guide V1.2.1...
- Page 8 VOORZICHTIG Letsel door het vallende product Het vallende product kan verwondingen veroorzaken. Beoogd gebruik Het beoogde gebruik van het Allied Vision-product is de integratie in optische systemen door professionals. Alle Allied Vision-producten worden verkocht in de B2B-markt. NO - Norsk Sikkerhet Les disse sikkerhetsinstruksene før du bruker produkt.
- Page 9 VARNING Risk för skador från fallande produkter Fallande produkter kan förorsaka skador. Avsedd användning Den avsedda användningen av Allied Vision-produkter är integrering i visionssystem av fackmän. Samtliga Allied Vision-produkter säljs i en B2B-miljö. ZH - 简体中文版 安全需知 Intended 在使用产品之前，请阅读这些安全说明。请务必遵守相关警告 和...
-
Page 10: This Document At A Glance
You can further adjust the camera installation for your individual application, using Additional measures on page 27. If you have doubts or questions, please feel free to contact your Allied Vision Sales representative for support! Shipping contents The delivery consists of: •... -
Page 11: Contact Us
102 Pickering Way - Suite 502 Allied Vision Technologies Asia Pte. Ltd Exton, PA 19341, USA 82 Playfair Rd, #07-01 D'Lithium Toll-free// +1-877-USA-1394 Singapore 368001 T// +1 978 225 2030 T// +65 6634 9027 Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 12: Table Of Contents
Airflow ................. . 28 Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 13: Document History And Conventions
Document history and conventions This chapter includes: Document history ..............14 Conventions used in this user guide........14 Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 14: Document History
Web links and references Links to webpages and internal cross references Table 2: Typographical styles Symbols and notes CAUTION Risk of burns Precautions are described. CAUTION Injury by falling heat sinks Precautions are described. Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... - Page 15 Document history and conventions NOTICE Material damage Precautions are described. Additional information Web link or reference to an external source with more information is shown. Alvium G5/G5X Heat Sink Kit User Guide V1.2.1...
-
Page 16: Compliance, Safety, And Intended Use
Compliance, safety, and intended use This chapter includes: Intended use ................. 17 Copyright and trademarks ............ 17 Your safety................17 Product safety ............... 18 Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 17: Intended Use
We are offering standard products as well as customized solutions. Intended use of Allied Vision product is the integration into Vision systems by professionals. All Allied Vision product is sold in a B2B setting. -
Page 18: Providing Optimum Heat Dissipation
Mount heat sinks according to the instructions in Mounting the heat sinks on page Product safety Observe the instructions and safety notes in this document to avoid damage to cameras and heat sinks. Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 19: Specifications And Technical Drawings
Specifications and technical drawings This chapter includes: Specifications ................ 20 Technical drawings ..............21 Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 20: Specifications
The curved front part the with mounting holes equals the height of the camera (29 mm). Rounded values, related to the user guide. See Technical drawings on page 21 for more accurate values. Table 3: Alvium G5/G5X heat sink kit specifications Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 21: Technical Drawings
Specifications and technical drawings Technical drawings The drawings in this chapter show Alvium G5/G5X cameras with heat sinks mounted. C-Mount ±0.3 ±0.1 M3 - 3 M3 - 2.5 (2x) 52.5 0.20 29.35 M2 - 2 (4x) 0.05 ±0.1 M2 - 4.5... -
Page 22: Cs-Mount
52.5 0.20 M2 - 2 (4x) 29.35 0.05 ±0.1 M2 - 4.5 (4x) CS-Mount (1x32 TPI-UNS-2B) ±0.1 M3 - 2.5 (2x) Figure 2: Alvium G5/G5X CS-Mount camera with lateral heat sinks mounted Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 23: S-Mount
M3 - 2.5 (2x) 0.20 29.35 M2 - 2 (4x) 0.05 ±0.1 M2 - 4.5 (4x) S-Mount (M12x0.5) ±0.1 M3 - 2.5 (2x) Figure 3: Alvium G5/G5X S-Mount camera with lateral heat sinks mounted Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 24: Mounting Heat Sinks
Mounting heat sinks This chapter includes: Preconditions ................ 25 Mounting the heat sinks ............26 Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 25: Preconditions
Mounting heat sinks Preconditions CAUTION Risk of burns • Operate Alvium G5/G5X cameras only with sufficient heat dissipation. • For measures above using the heat sink kit, see Additional measures on page CAUTION Injury by falling heat sinks Follow the instructions below. -
Page 26: Mounting The Heat Sinks
Mounting heat sinks Mounting the heat sinks Figure 4: Mounting lateral heat sinks on Alvium G5/G5X C-Mount camera 1. Put on cotton gloves to keep grease and dirt away from the surface of the camera housing and the heat sinks. -
Page 27: Additional Measures
Additional measures This chapter provides a brief overview of additional measures for heat dissipation. Alvium G5/G5X Heat Sink Kit User Guide V1.2.1... -
Page 28: Scope
Additional measures Scope This section gives an overview of potential measures to increase the heat dissipation for Alvium G5/G5X cameras after heat sinks have been installed. Camera power Camera power by PoE increases the camera’s power consumption, resulting in more heat. Therefore, use external power by the I/O connector to reduce heating of the camera.
