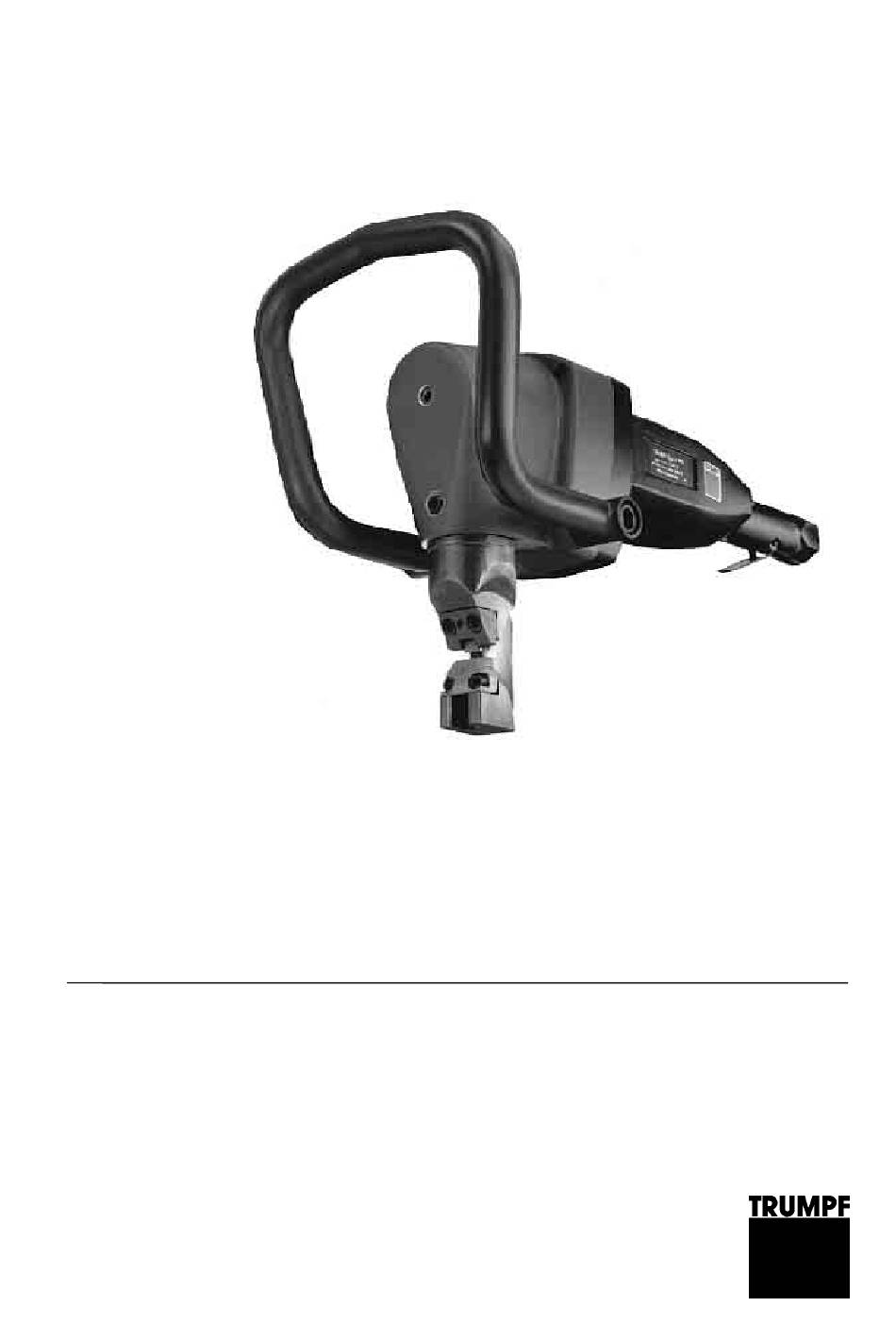

- Page 1 Operator's manual N 700 - 1 english...
-
Page 3: Proper Use

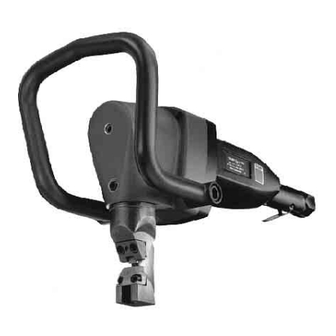

Cheesehead screw (2) for mounting the handle Handle (can be mounted in 2 positions) 345 Lever, or on/off switch N i b b l e r N700-1 Fig. 9545 N700-1 Specifications Noise / Vibration Measured values established in acc. with EN 50 144. -
Page 4: Safety Instructions
(red print with machine! TRUMPF identity number 125699) completely and follow the instructions included therein. • Always guide the compressed-air tube back away from the unit. • Use only original TRUMPF accessories. - Page 5 In this case, guide the machine back along the freshly cut Inside cutouts track a few millimeters before turning it off. Make a starting hole at least 60 mm diameter in the workpiece. N700-1 E211en1_2.doc...
-
Page 6: Die Selection
400 N/mm² Die (see table above) Workpiece Punch guide Distance between sheet Punch surface and punch guide Distance between die and punch guide Fig. 16811 Ensure that the distance X is as small as possible! E211en1_2.doc N700-1... -
Page 7: Wearing Plate
Turn eccentric shaft (21) until the punch (9) reaches its maximum depth of penetration. • Loosen screw (36) • Turn die carrier (7) repeatedly through 360° until the punch penetration depth of 1-3 mm is reached. • Re-tighten screw (36). N700-1 E211en1_2.doc... -
Page 8: Tool Change
Turn the punch (9) out Mounting the punch Fig. 9016 Lightly grease the square end of the punch and the die carrier hole with Lubricating grease "S1" TRUMPF Order No. 121486 see "F" in Fig. 9016 Ensure that the penetration depth is correct. -
Page 9: Maintenance
• The punch can be ground a total of appr. 10 mm. Original grease: Lubricating grease "G1" TRUMPF Order No. 139440 • Regrind the front face as shown in the sketch below. Provide for ample coolant. Alternative... - Page 10 Please note the specifications on the output plate. See diagram in the spare parts list. You will find a list of TRUMPF representatives at the back of this operating manual. 312 Lubricating head for...
-
Page 11: Original Accessories
098723 • When ordering spare parts or wearing parts, Die for 5-7 mm (die type 7) 098722 please use the TRUMPF stock number of the Die for profile sheet 5-7 mm (die type P7) 098721 respective part. Wearing plate 119173 •... - Page 12 E211en1_2.doc N 700 - 1...
