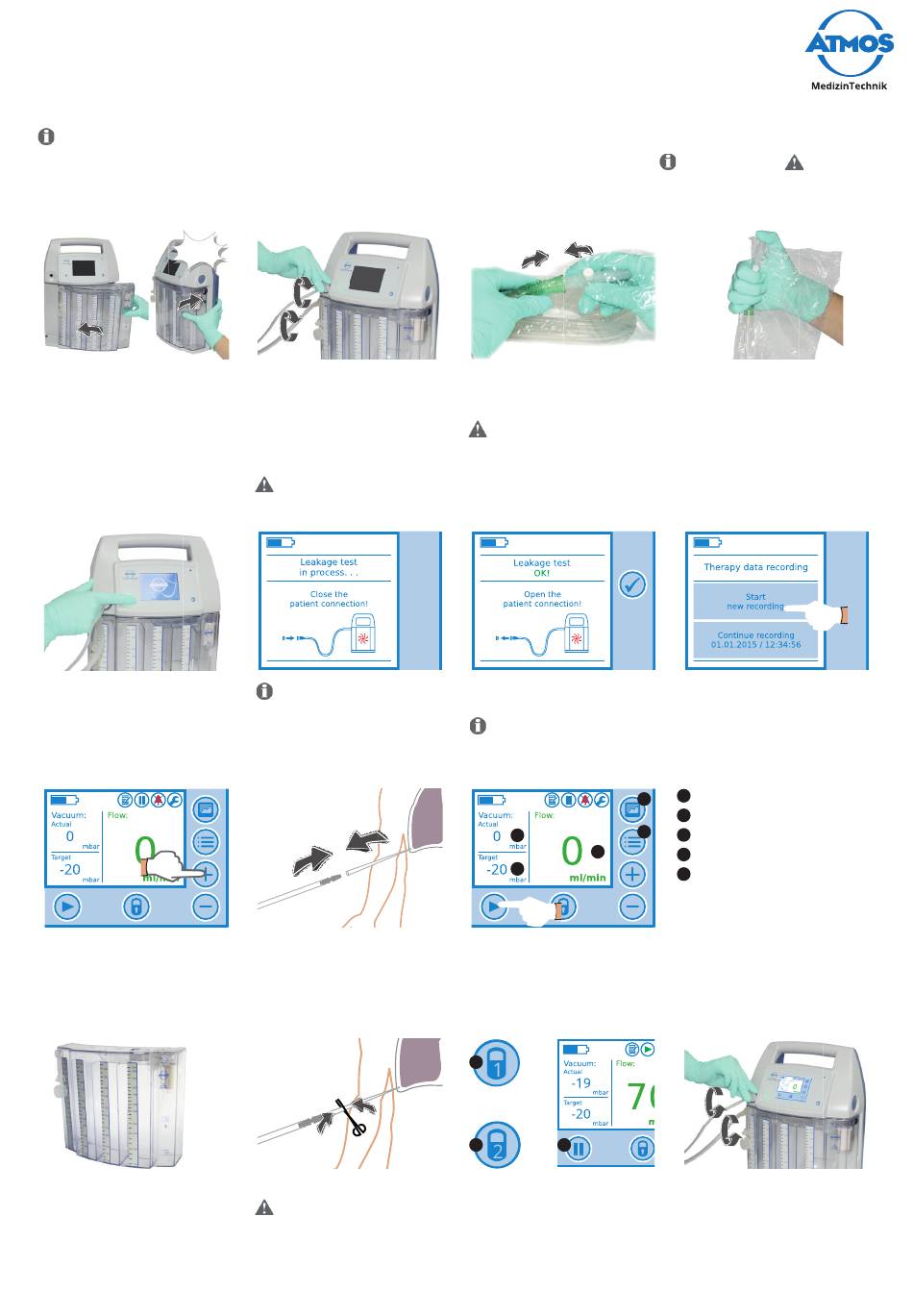

Atmos S 201 Thorax Quick Manual

Quick Guide ATMOS
This Quick Guide does not replace the operating instructions.
Always carry out steps 1 - 6 under sterile conditions.
Set up and switch on
click
1. If necessary fi ll the water
lock
2. Connect canister to device
7. Switch on the device
10. Set target vacuum with + / -
Exchanging secretion canister
1. Prepare a new secretion
canister
S 201 Thorax
®
3. Connect secretion channel
of hose system to secretion
canister
4. Connect measuring-/
rinsing channel of hose
system to device
Do not overtighten the
Luer-Lock connections!
Leakage test starts
automatically!
11. Adapt the connector to
patient catheter
2. Clamp the patient catheter
Do not clamp the hose
system!
5. Adapt the connector of
hose system to hose end at
patient side
Check the Luer-Lock cap of
connector for tightness!
8. Only proceed if the leakage
test is passed!
Only proceed shortly
before patient is
connected!
4
5
1
3
2

12. Start therapy
1
2 3
3. Deactivate the keylock
4. Stop therapy
Icons
Information Warning!
6. Cover the connector

9. Start a new therapy or
continue with the existing
therapy
Actual vacuum
1
2 Target vacuum
Current fl ow value
3
Therapy progress
4
5 User settings
5. Remove secretion channel
of hose system from
secretion canister
6. Remove measuring-/
rinsing channel of hose
system from device
