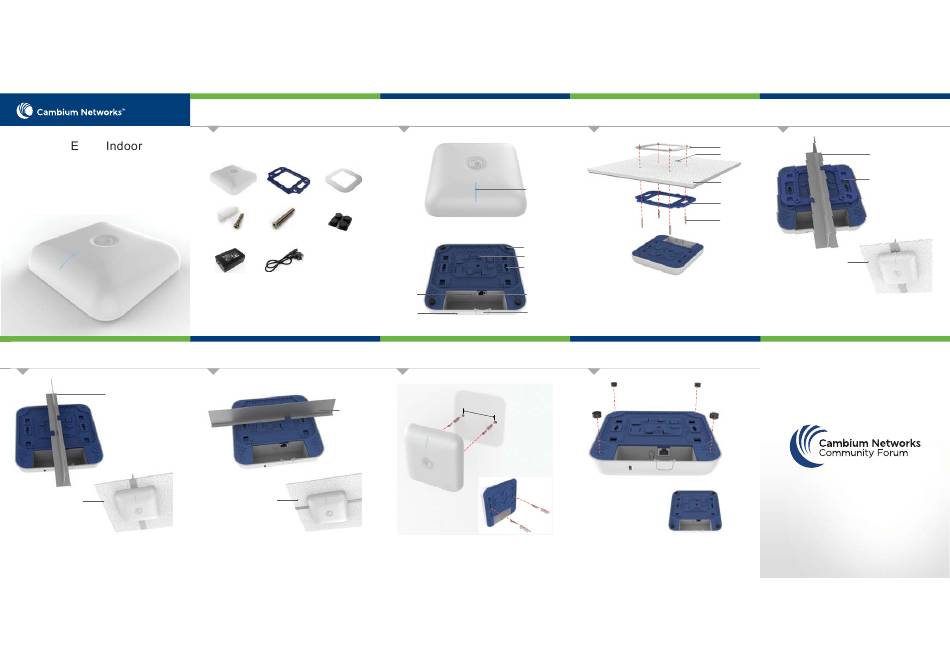

Cambium Networks cnPilot E410 Indoor Quick Start Manual

cnPilot TM 410
802.11ac Wave2 Indoor
Access Point
Quick Start Guide
Model: e410
24mm T-Bar Rail Mounting
24mm wide T-bar rail
Ceiling Tile
The e410 can be mounted to a 24mm width T-bar rail
using the clips built into the underside of the unit.
Introduction
The guide provides a quick installation process.
Package Contents
e410 Access Point Mounting Plate
Ceiling Mounting Bracket
Ceiling Mounting Screws Rubber Foot
Wall Mounting Kit
(Qty. 4) (Qty. 4)
(Qty. 2)
Tool Requirements
POE Injector* Power Cord*
Tools Required
• Philips Screwdriver
* Only available for certain ordering SKUs
14mm T-Bar Rail Mounting
14mm wide
T-bar rail
Ceiling Tile
The e410 can be mounted to a 14mm width T-bar rail
using the clips built into the underside of the unit.

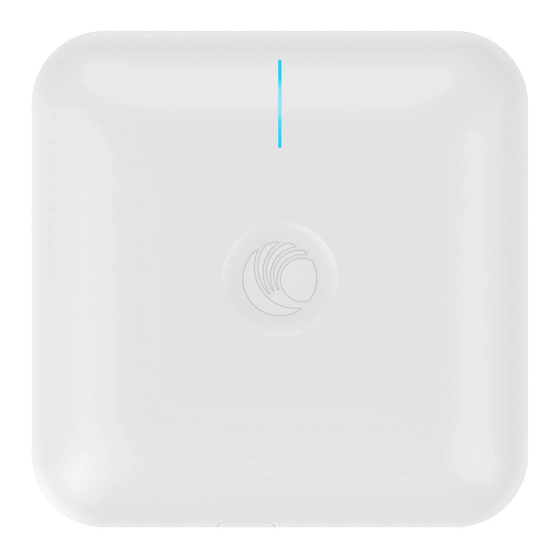

Product Overview
Multi-color LED
Top View
Desk Mount Foot
T-bar Mount Holder
Wall Mount Anchor
Reset Button LAN Port
Kensington
Removable Clip
Lock Slot
Bottom View
Wall Mounting
118mm
The e410 mounts to any wall by using two screws with
corresponding wall anchors.
Ceiling Tile Mounting
Mounting Plate
Cable Route Hole
Ceiling Tile
Mounting Bracket
Screws x4
Exploded View
The e410 mounts to a ceiling tile and allows for the
ethernet cable to be hidden by routing through a hole in
the ceiling tile.
Rubber feet Assembly
The e410 can be mounted on any surface by attaching
the rubber feet to the underside of the unit.
38mm T-Bar Rail Mounting
38mm wide T-bar rail
Mounting Bracket
Ceiling Tile
The e410 is secured to a 38mm ceiling T-bar rail by using
the ceiling mount bracket.
JOIN THE CONVERSATION
community.cambiumnetworks.com
